YOSUDA Rowing Machine 100 - Rear Stabilizer and Slide Rail Assembly; Seat and Cushion Installation

6

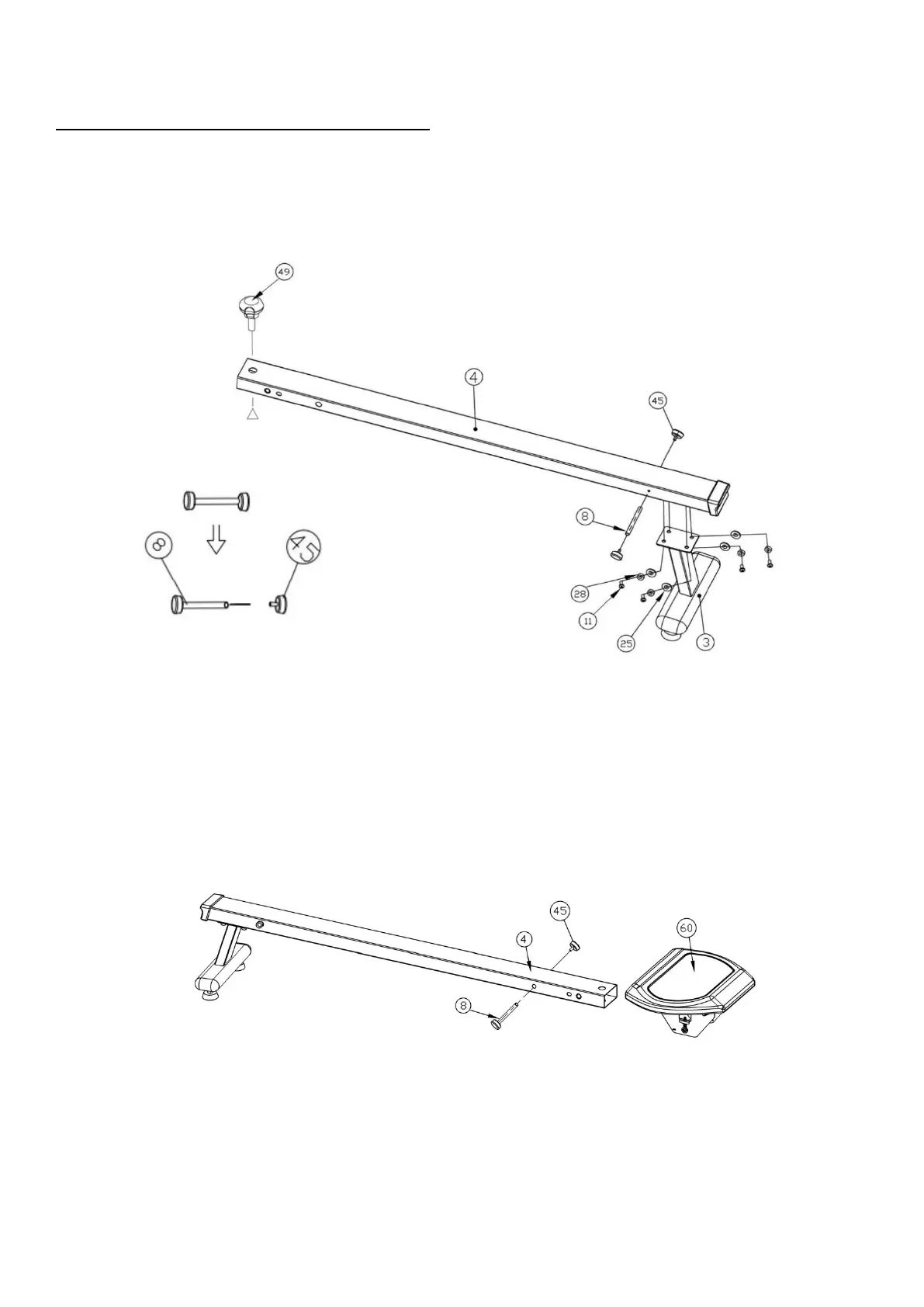

STEP 5
Disassemble knob (#49) from the slide rail. Take the Buffer shaft and the Cylindrical cushion
(#8 and #45)out of the HARDWARE PACKAGE. Unscrew the Cylindrical cushion (#45), then
attached it and the buffer shaft Ø12*79 (#8) to slide rail (#4).
Attach rear stabilizer (#3) to the slide rail (#4) with four hexagon socket round head bolts
M8*16 (#11), four flat washers 8*19 (#25) and four spring washers 8 (#28).
STEP 6
Slide the Seat (#60) onto the slide rail (#4).
Attach the cylindrical cushion (#45) and the buffer shaft Ø12*79 (#8) to slide rail (#4).
