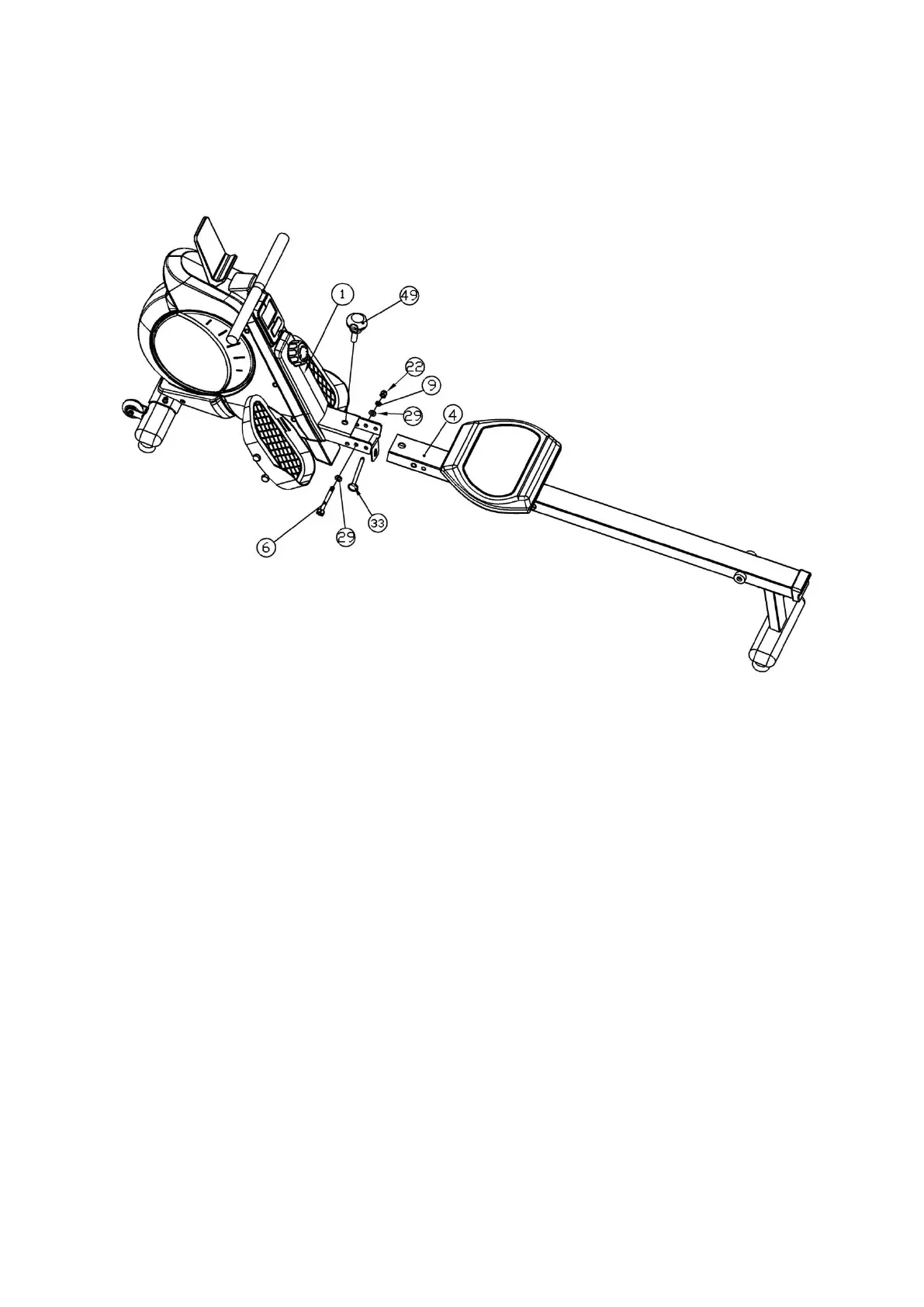

STEP 7
Attach slide rail (#4) to the main frame (#1) with a knob M16 (#49), a hex screw M10*105
(#6), two flat washers 10*20 (#29), a spring washer 10 (#9), a cover type union nut M10
(#22) and a single head bolt (#33).
CARE AND MAINTENANCE
1. Clean daily after use.
2. Use cloth or non-abrasive scouring pad with soap & water or any glass cleaner.
3. Do not use Mineral Acids, bleach, coarse abrasives.
4. If the handle cannot return to the original position, need to open the shell to adjust the
ribbon.
5. Correct use of rowing machine to avoid failure.
