YUNEEC E20Tvx - Gimbal Installation; Assembly and Disassembly the X Connector Gimbals; Assembling; Disassembling

Gimbal Installation
Assembly and Disassembly the X connector gimbals
Assembling

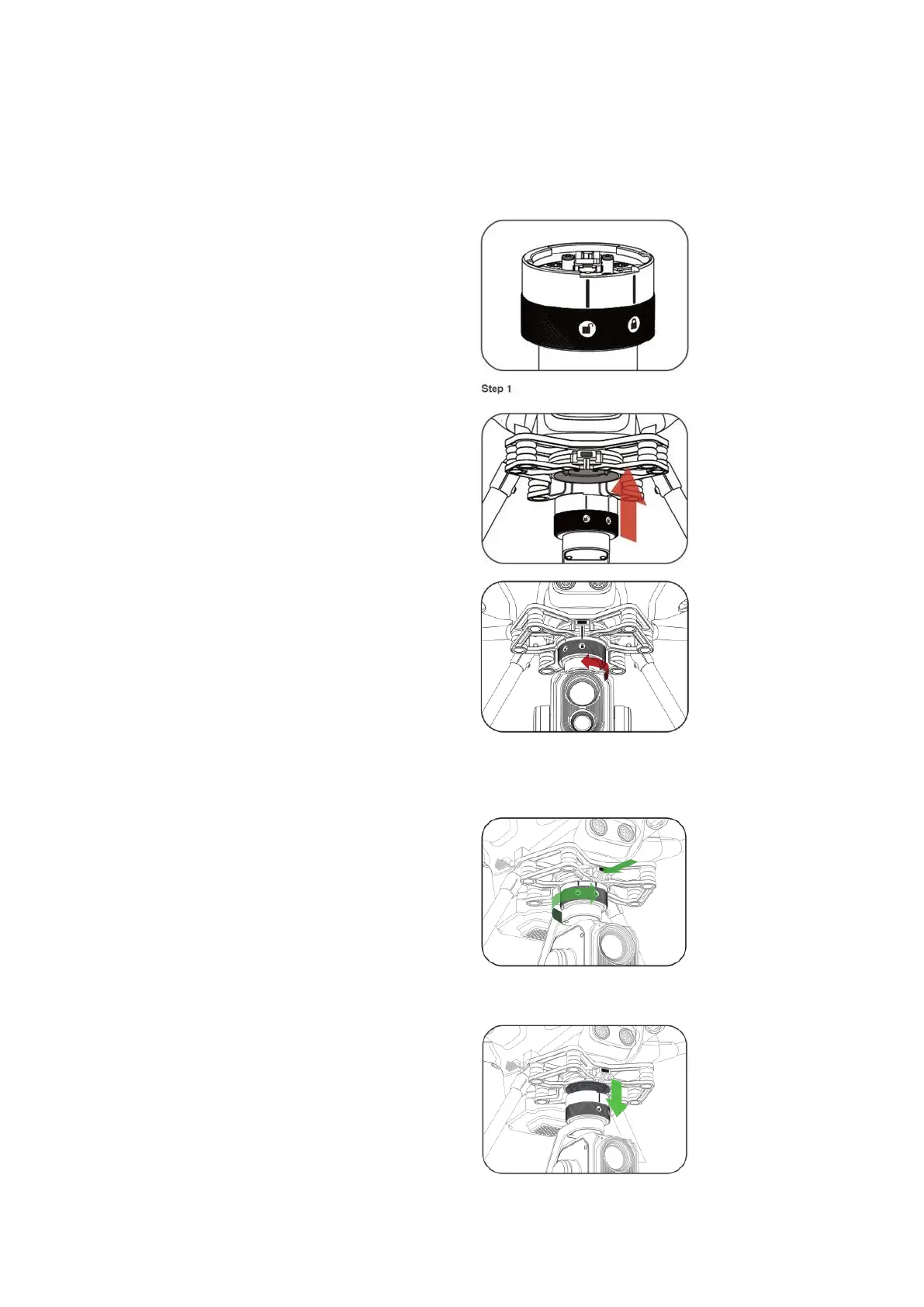

Step 1.
Find the Unlocked Mark etched on the Gimbal
Yaw Motor and align the Mark Line with the
front of the damping plate.
Step 2.
Insert the Gimbal Yaw Motor into the
damping plate and rotate it counterclockwise
until the Mark Line of the Locked Mark aligns
with the front of the damping plate to secure
the gimbal.
Step 3.
Remove the lens protector
Disassembling
Step 1.
Hold the gimbal release button and rotate the
Gimbal Yaw Motor clockwise until the Mark
Line of the Unlocked Mark aligns with the
front of the damping plate.
Step 2.
Pull the gimbal out from the damping plate.
Notice: The X-connector series gimbal needn't
bind separately. If the re-binding is needed
please refer to the corresponding section in
the Drone Quick Start Guide.
