OPERATING ＆ INSTALLATION
10 11

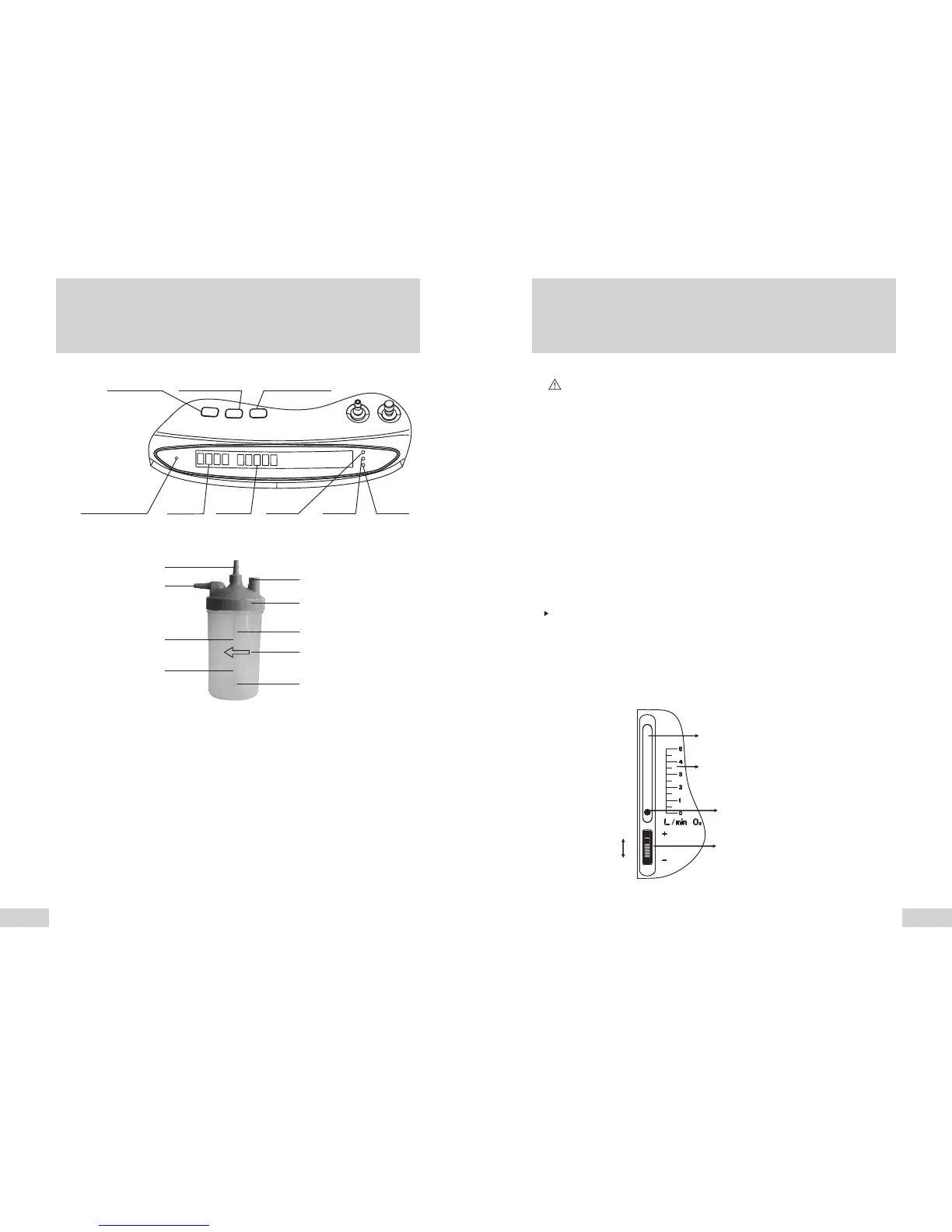

Figure 4: Control Panel
Plus Timing
Remote Control
Receiver
Timing
Setting
Elapsed
Time
Green
Light
Yellow
Light
Red
Light
Minus Timing On/Off Button
Figure 5: Humidifier Components
Oxygen Outlet
Maximum Level
Minimum Level
Safety Valve
Cap
Bottle
Humidifier Tube
Humidifier Filter Element
Oxygen Inlet
OPERATING ＆ INSTALLATION
Ⅱ.PREPARE WORK
1.Unscrew the bottle from the humidifier clockwise. Fill the bottle with pure
water (or distilled water) to the level between MAXIMUM and MINIMUM.
DO NOT fill humidifier bottle over MAXIMUM level. (Figure 5)
2. Screw securely the bottle back counterclockwise.
(Recommend to use Yuwell Humidifier p/n: 2.05.014.114)
3. Connect the power supply.
1) If the concentrator has a damaged cord or plug, if it is not
working properly, if it has been dropped or damaged, or
dropped into liquid, call Qualified Service Personnel for
examination and repair.
2) Keep the cord away from HEATED or HOT surfaces.
3) Do not move or relocate concentrator by pulling on the
cord.
4) Do not use extension cords with this unit.
CAUTION:
NOTE: Concentrator may be used during the initial start warm-up time
(approximately 30 min) while waiting for the O2 purity to reach maximum.
Ⅲ. OXYGEN ABSORBING OPERATION
1. FLOWRATE (Figure 6 )
Turn the flowrate knob to the setting prescribed by your physician or
therapist.
NOTE: To properly read the flowrate, locate the prescribed flowrate line on
the flowmeter.
Next, turn the flow knob until the ball rises to the line.
Now, center the ball on the L/min line prescribed.
Flowrate Indicator
Flowmeter Window
Flowmeter Knob
Float Ball
Figure 6: Setting Flowrate
Big
Small
To Next Page
