Zamboni 200 - Used Blade; Blade Controls on Resurfacer; Side Controls

5 - 2
Maintaining the Cutting Blade

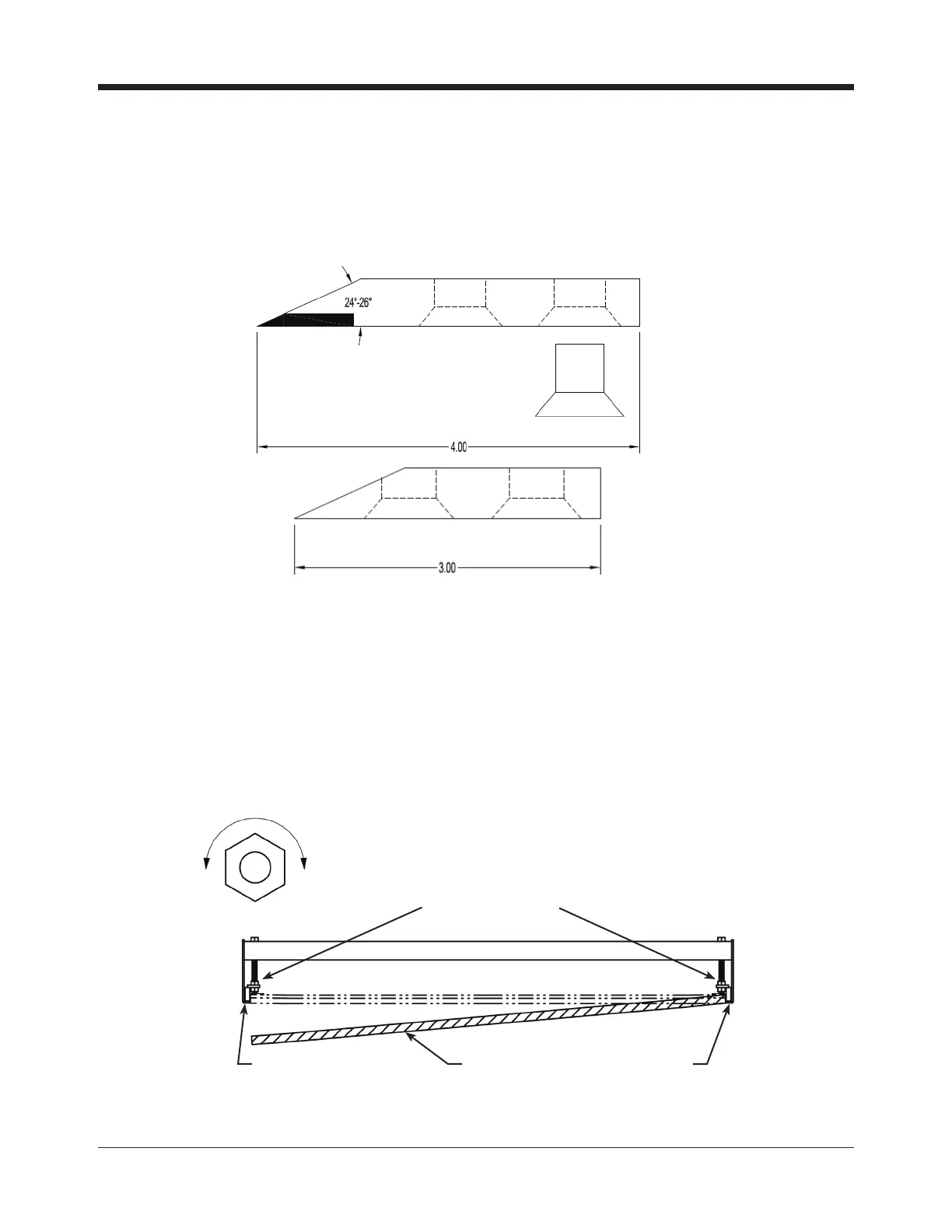

Used Blade
Use REAR mounting holes when blade is 4" wide or less.
Note: Hardened material is exhausted when blade is approximately 3" wide. Discard blade.
Blade Levelling Controls
Blade Height Adjusting Nuts level each side of the blade in relation to the runners. The
Blade Height is to be adjusted using the nuts closer to the ice surface and not the upper
nuts on the frame.
Side Controls
Figure 5.1 Blade Controls on Resurfacer
Conditioner Runner
DownUp
Rear View
Conditioner Runner
Blade
Blade Height
Adjusting Nuts
