5 - 6
Maintaining the Cutting Blade
Blade Angle Adjustment
The blade angle gauge (84-01100) may be used. Place the angled face of the tool on the
underside of the blade. When the at edge of the tool is parallel to the runners, the blade is
angled correctly (see Figure 5.6).

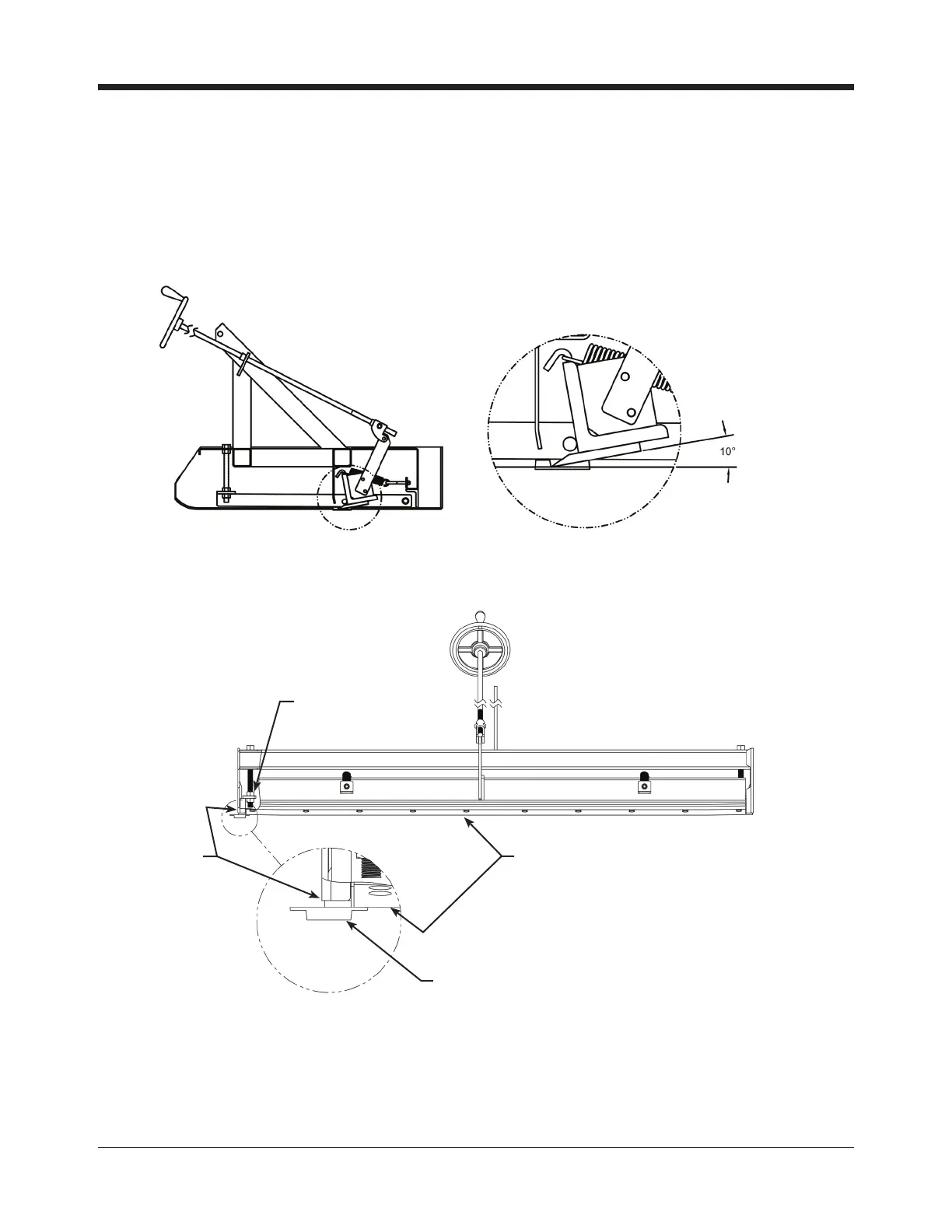

Figure 5.6 Blade Angle Adjustment Tool
Figure 5.7 Aligning the Blade with Frame Runners
Slide blade adjusting tool under
conditioner runner until aligned.
Blade
Blade Adjusting Tool
Blade Height
Adjuster
Conditioner
Runner
