Maintaining the Cutting Blade
5 - 3
Hand Wheel
The center hand wheel control varies the angle of the blade. If the blade is level with each
runner, the hand wheel will make uniform changes in depth of cut.

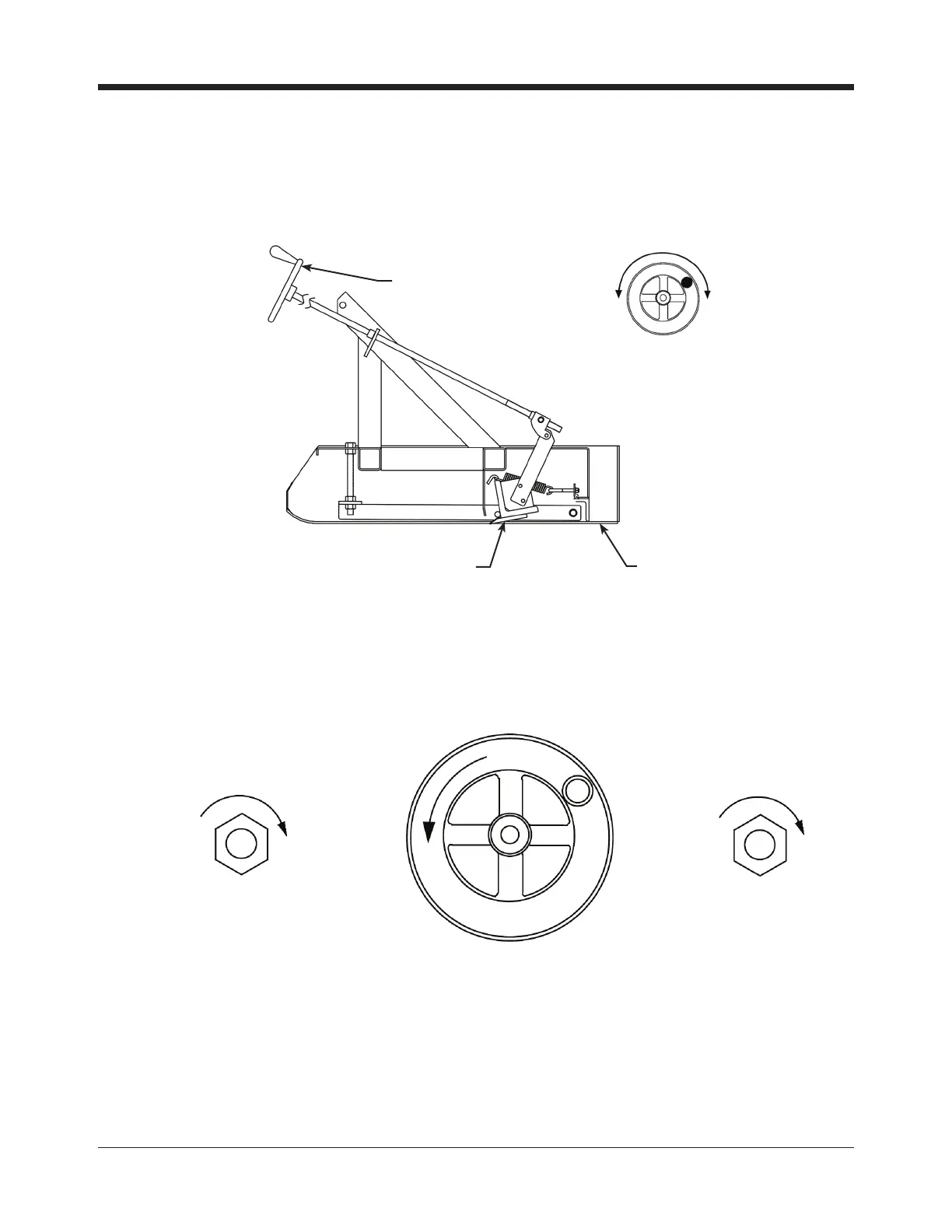

Figure 5.2 Center Hand Wheel Control
ARROWS SHOWN BELOW INDICATE ROTATION TO LOWER BLADE
Figure 5.3 Blade Adjusting System
Blade Conditioner Runner
Side View
Centre Hand Wheel
Up Down
Left Side Adjusting Nut Right Side Adjusting Nut
Centre Hand Wheel
For Levelling
Blade Only
For Levelling
Blade Only
For Adjusting Blade Angle and Depth
To Next Page
