5 JUMPERS DESCRIPTION
Three are three jumpers it is possible to configure.
J7: This jumper selects the active level on the travel demand inputs. Travel demands
are connected in the CNA #5 and CNA #15 positions. They are used in the
automatic centering to restart steering always when the truck is moving. When J7 is

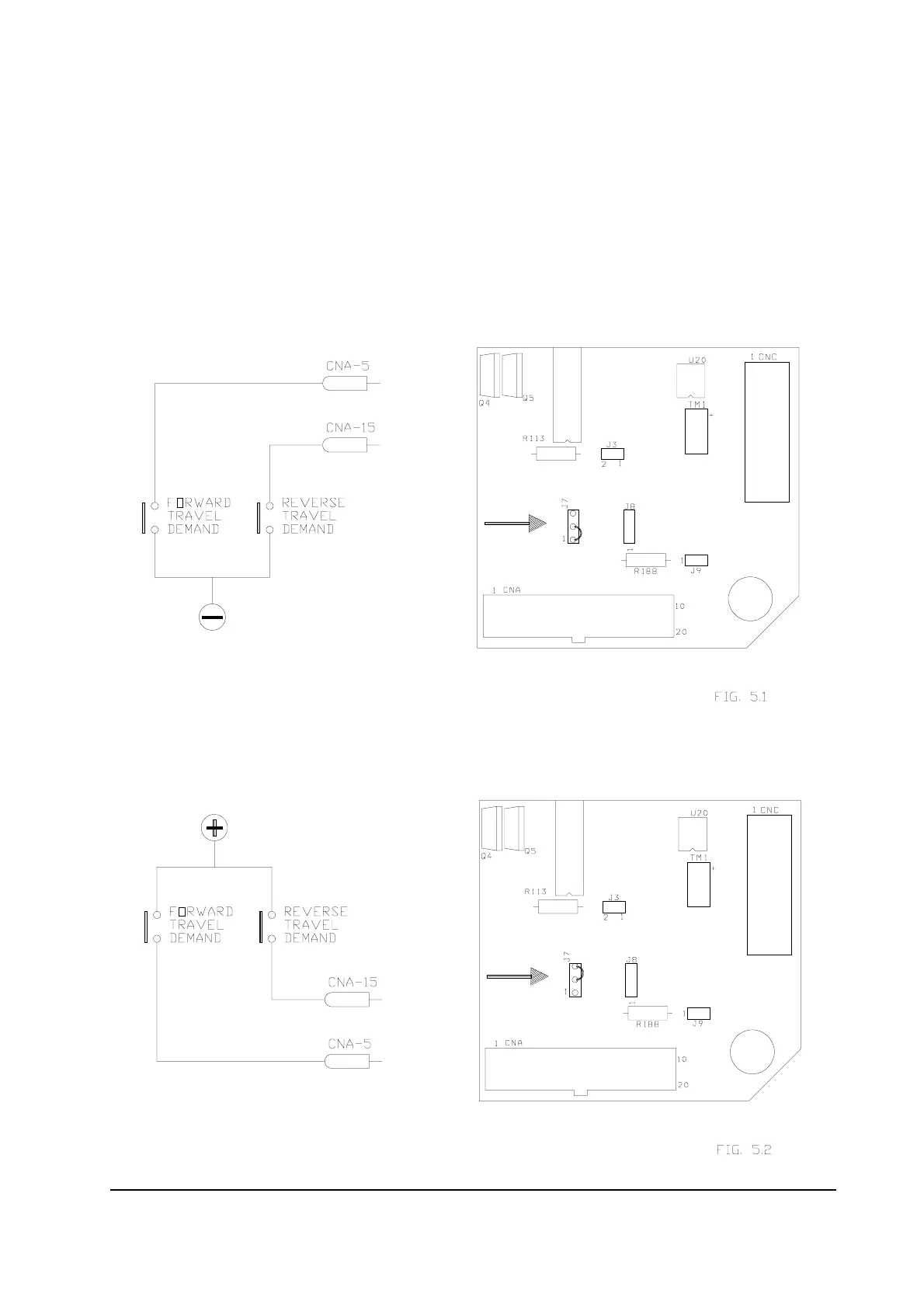

closed between pins No. 1 and 2, travel demands are expected active low (fig. 5.1);
when closed between pins No. 2 and 3, travel demands are expected active high
(fig. 5.2).
