Page - 40/50 AFGZP0BA – SMART CONSOLE - User Manual
U Please remember to check the counter column, especially when data-
logging at 500kpbs and/or if the CAN traffic is very heavy. No CAN
messages should have been lost but, if this happens, contact Zapi
technicians to get support
5.2.2 Download procedure
From HOME SCREEN enter CONSOLE UTILITIES and then CAN DATALOG.

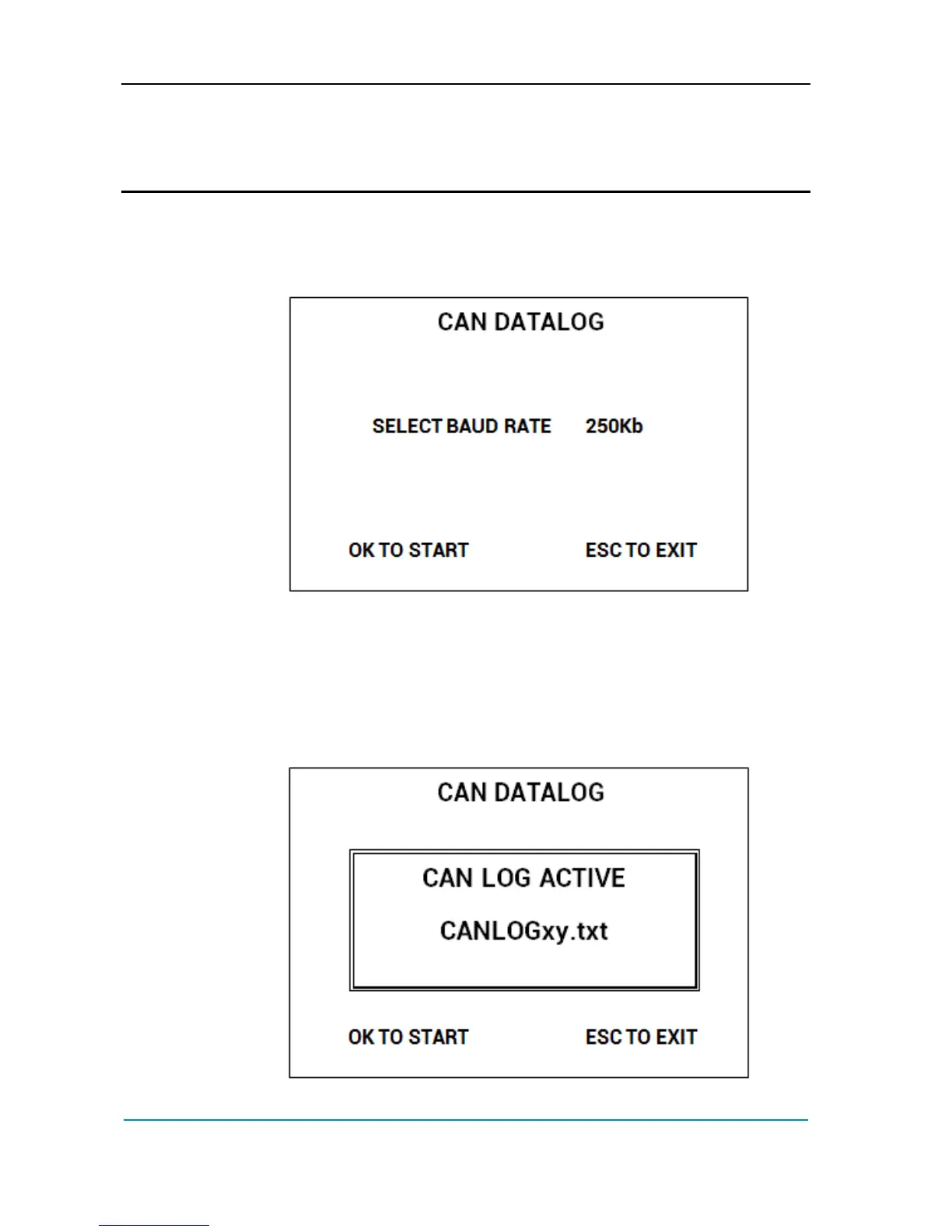

The display will show:
Only baud rate must be specified before starting.
Press OK to start: at this point Smart Console will check the presence of the USB
stick.
If it is absent display will ask operator to insert one in the USB socket. As soon as
it is plugged, data-logging will start automatically.
At this point, display will show:
