Zebra 105SL Installation Instruction

Media Rewind Upgrade
Installing the Media Rewind Option Kit
12
33181L-001 Rev. A 10/23/2006
27. Position the sensor with the window facing down. Secure the sensor to the main frame
with one screw.
28. Insert the lower take-label sensor connector and black and red wire cable through the
lower hole in the main frame.
29. Position the sensor with the window facing up. Secure the sensor to the main frame with
one screw.
30. See Figure 6. Insert the top lip and hook plate of the rewind plate into the two mounting
slots and slide the plate in as far as it can go.

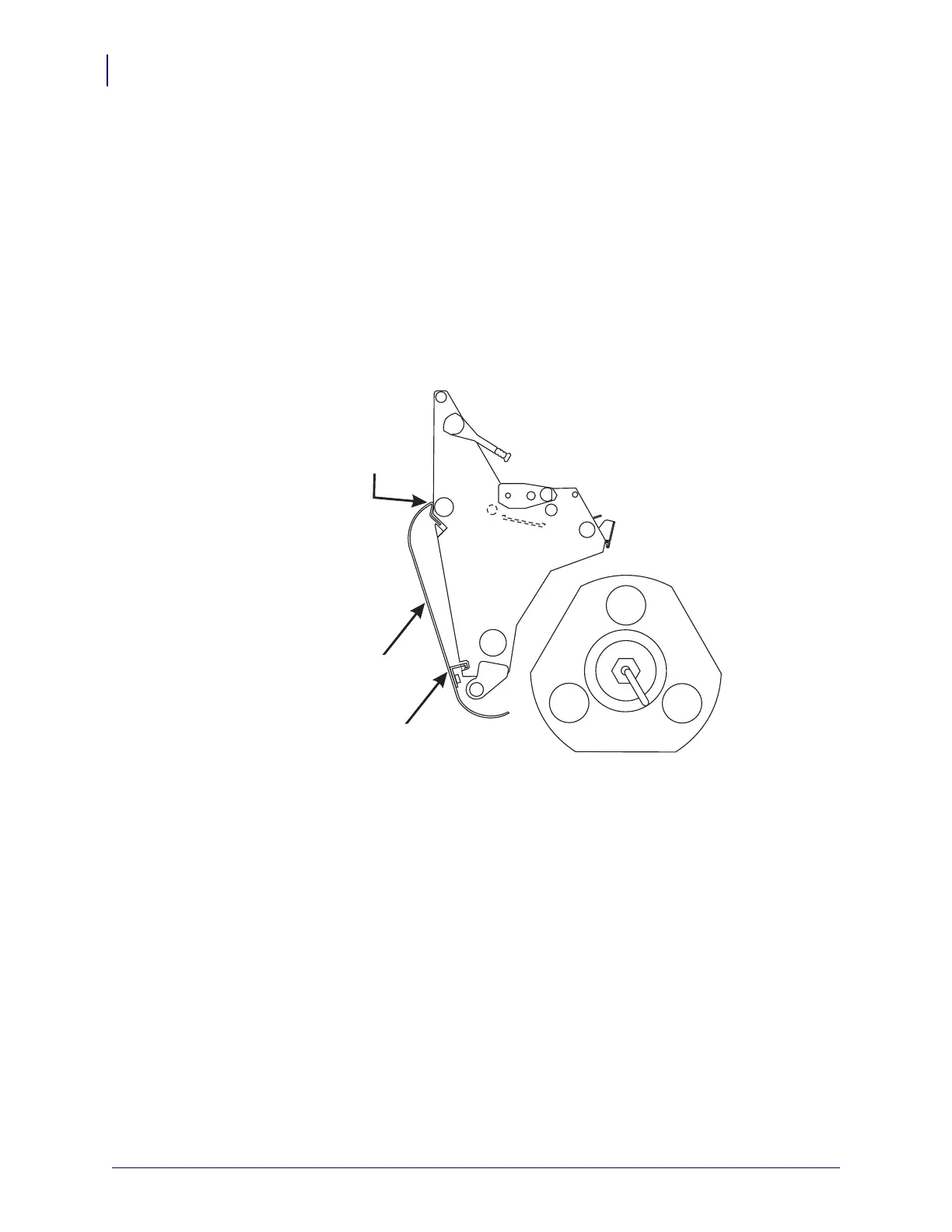

Figure 6 • Rewind Plate Installation
Rewind
Plate
Top
Lip
Hook
Plate

Zebra 105SL Specifications

General

Print technology	Direct thermal
Display	LCD
Product color	Gray
Network ready	Yes
Dimensions (WxDxH)	283 x 495 x 394 mm
Standard interfaces	Parallel, Serial
Internal memory	6 MB
Maximum label width	115 mm
Maximum label length	0.991 m
Power requirements	90-264 VAC, 48-63 Hz

Weight and Dimensions

Depth	495 mm
Width	283 mm
Height	394 mm
Weight	29000 g
