Platen Replacement 980358-404A
Preparations
Open the printer by pulling the release latches forward, then lifting the top cover.
Removal

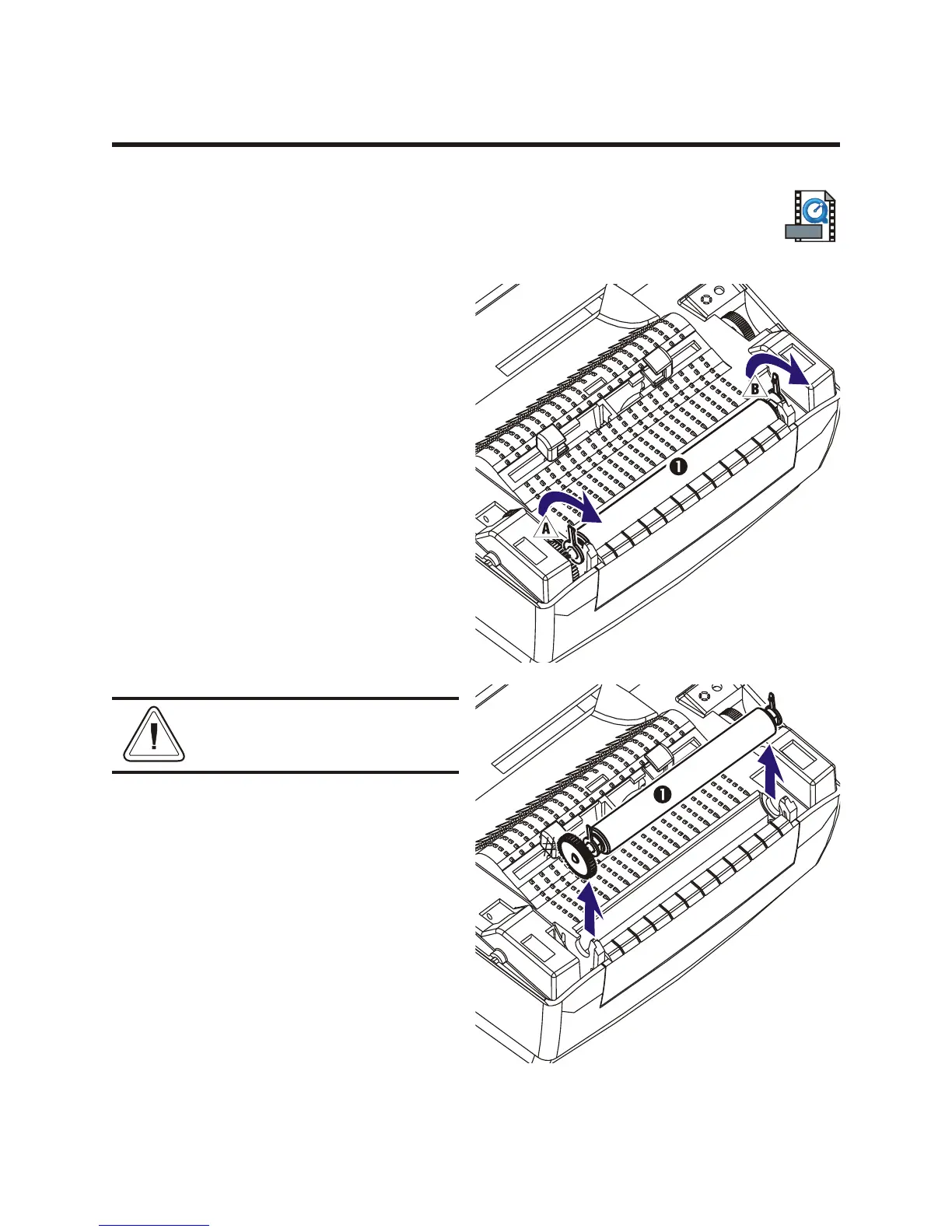

1. Use the blade of a small slotted screw driver
to pry the peg ! free from its hole and
rotate the bearing forward a quarter turn.
Repeat on the other side ".
2. Pinch both tabs then lift the platen 1 free of
the printer.
Assembly
1. Align the platen so that its gear # is to the
left.
2. Pinch both tabs (pressing inward) and put
each bearing into its slot.
3. Rotate each tab backward until the peg
snaps into its hole.
Older 2443 printers have only one
tab ( ! ) securing the platen with a
bearing on the right.
28 980358-001 Rev. B
