Bottom Case (Base Housing) Replacement 980358-405A
Removal

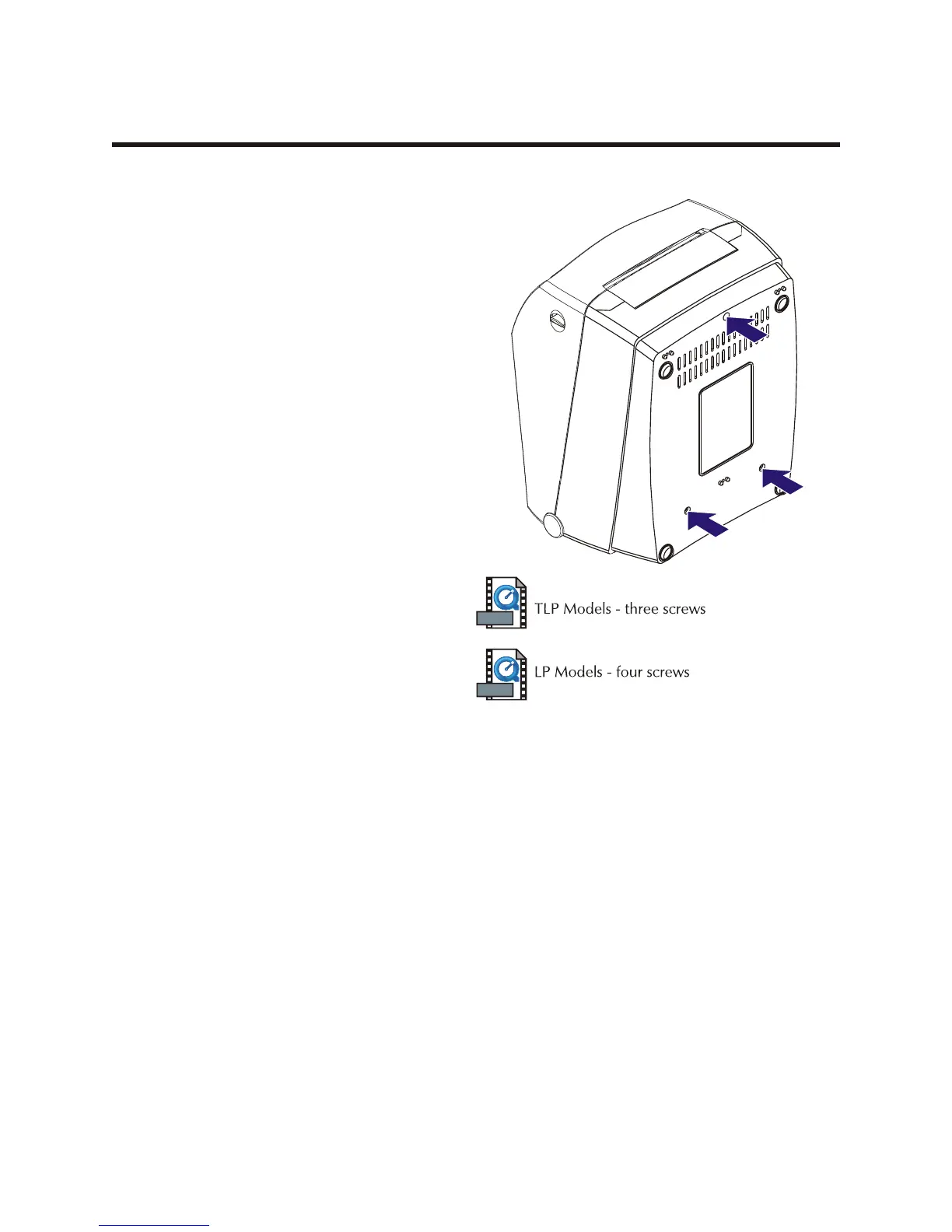

1. Tilt the printer so you can see the bottom.
2. Use a #1 Phillips driver to remove the three
screws that secure the bottom case to the
bottom frame.
3. Pull the bottom case off of the bottom
frame.
Assembly
1. Align the bottom case to the bottom frame.
2. Replace the three screws that hold the case
to the frame; then, use a #1 Phillips driver
to tighten them.
980358-001 Rev. B 29
