Cover Support Replacement - TLP 980358-512A
Preparations
Open the printer; pull the release latches forward, then lift the top cover.
Removal

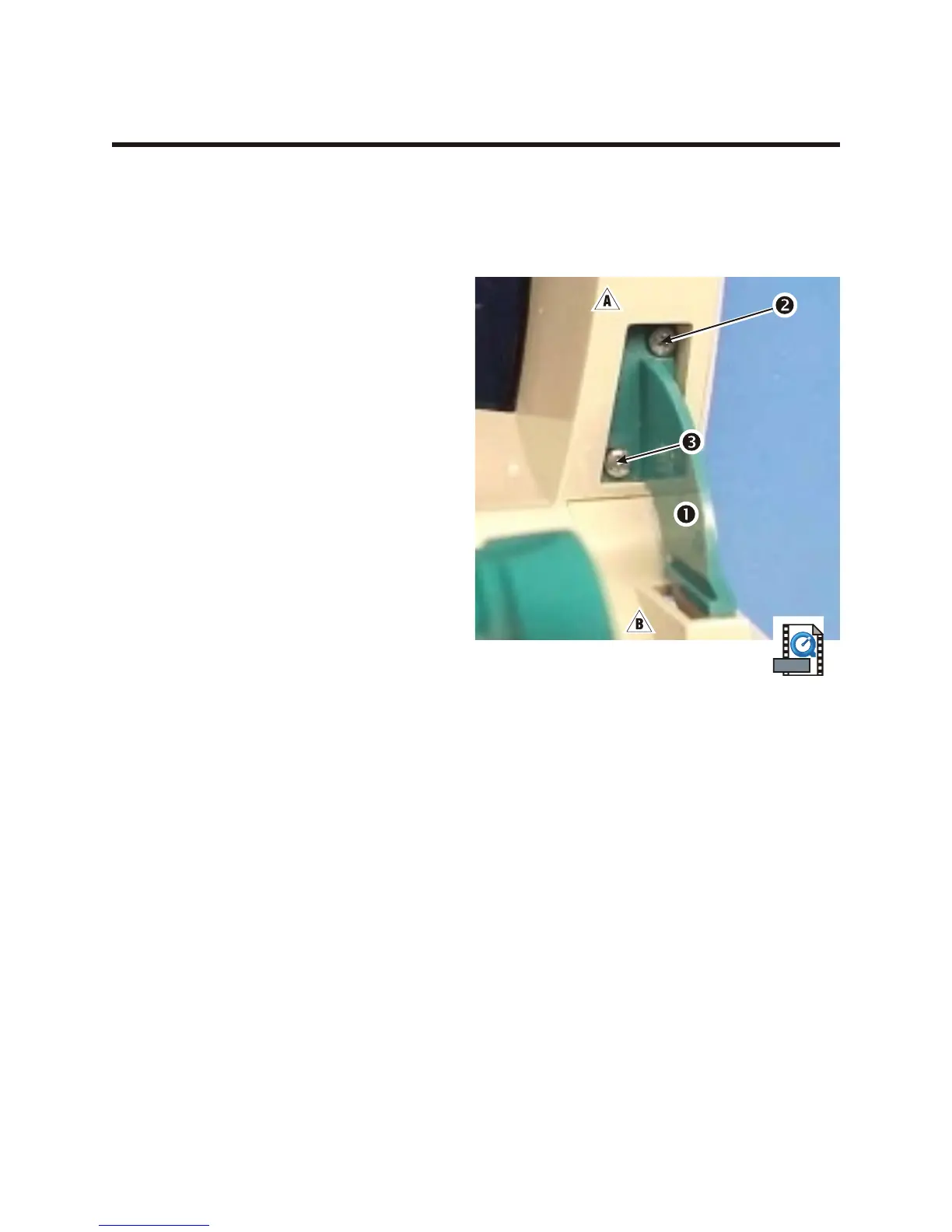

1. Use a #1 Phillips driver to remove the two
screws 2 3 holding the support 1 to the
top assembly !.
2. Lift the support away from the bottom
assembly ".
Assembly
1. Align the support so that the square brace
fits into the top assembly.
2. Insert the support into the bottom assembly.
3. Replace the two screws that hold the
support the top assembly and use a #1
Phillips driver to tighten them.
980358-001 Rev. B 69
