Hinge Replacement - TLP 980358-513A
Preparation
Perform the removal steps of the Bottom Case (980358-305) and Main PCBA (980358-309) and
Cover Support (980358-512) procedures.

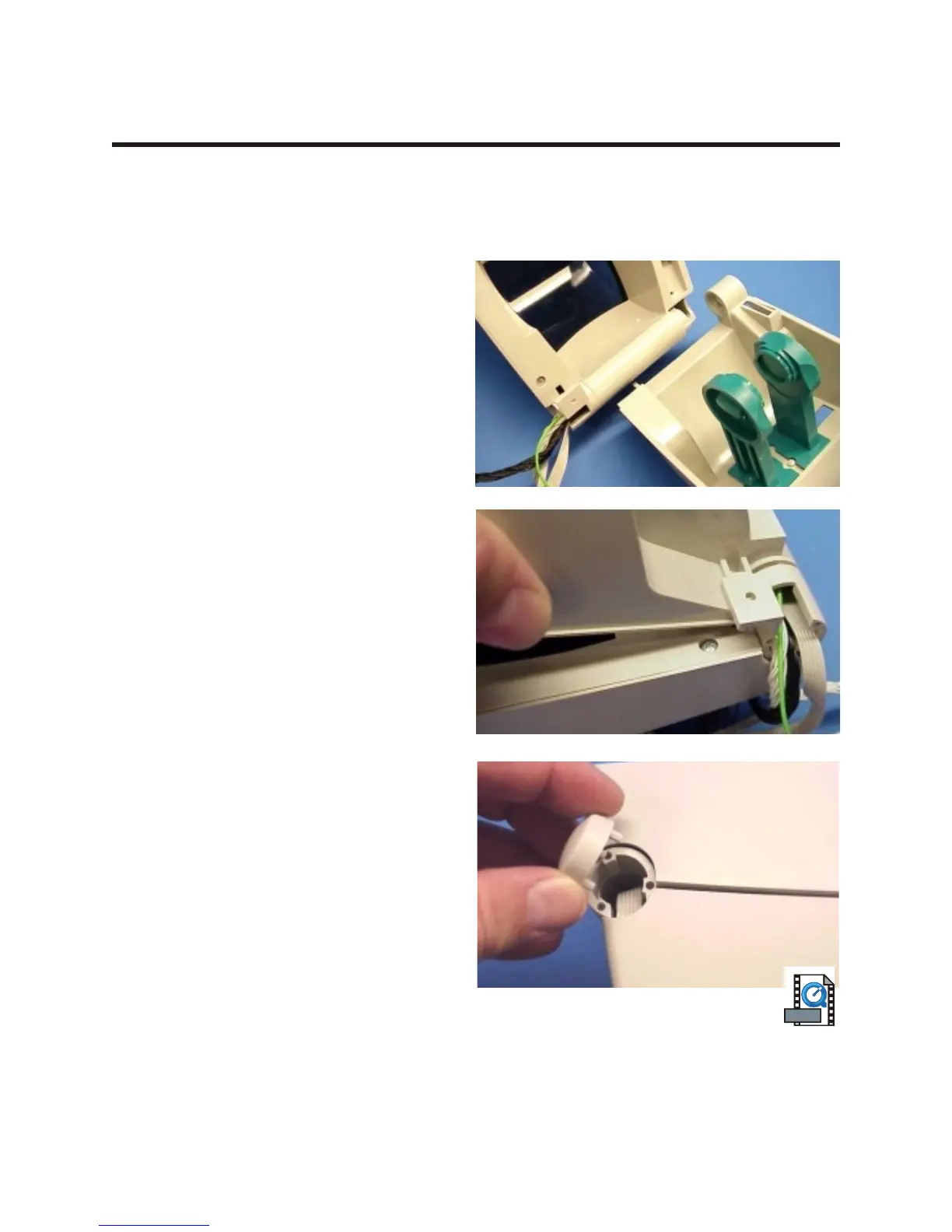

Removal
1. Use a #1 Phillips driver to loosen and
remove the screw that holds the hinge lock
onto the bottom media frame.
2. Slide the hinge off of the frame.
3. Slide the top cover assembly and bottom
media frame apart.
Installation
1. Ensure the wires follow their correct routing.
On the side opposite the hinge, make sure
the cables go through the channe.
2. Slide the top cover assembly and bottom
media frame together.
4. Align the hinge with the link tab facing right
and insert into the top cover assembly.
5. Fit the hinge onto the bottom media frame.
6. Replace the screw and use a #1 Phillips
driver to tighten it.
7. Ensure the hinge caps are inserted properly.
Assembling the Printer
Perform the assembly steps of the Cover
Support (980358-412), Main PCBA
(980358-409) and Bottom Case (980358-405)
procedures.
980358-001 Rev. B 71
