Print Engine Installation
3/3/11 Wireless Quick Start Guide P1001060-006
Dimensions and Clearance Needs (110PAX4 and R110PAX4)

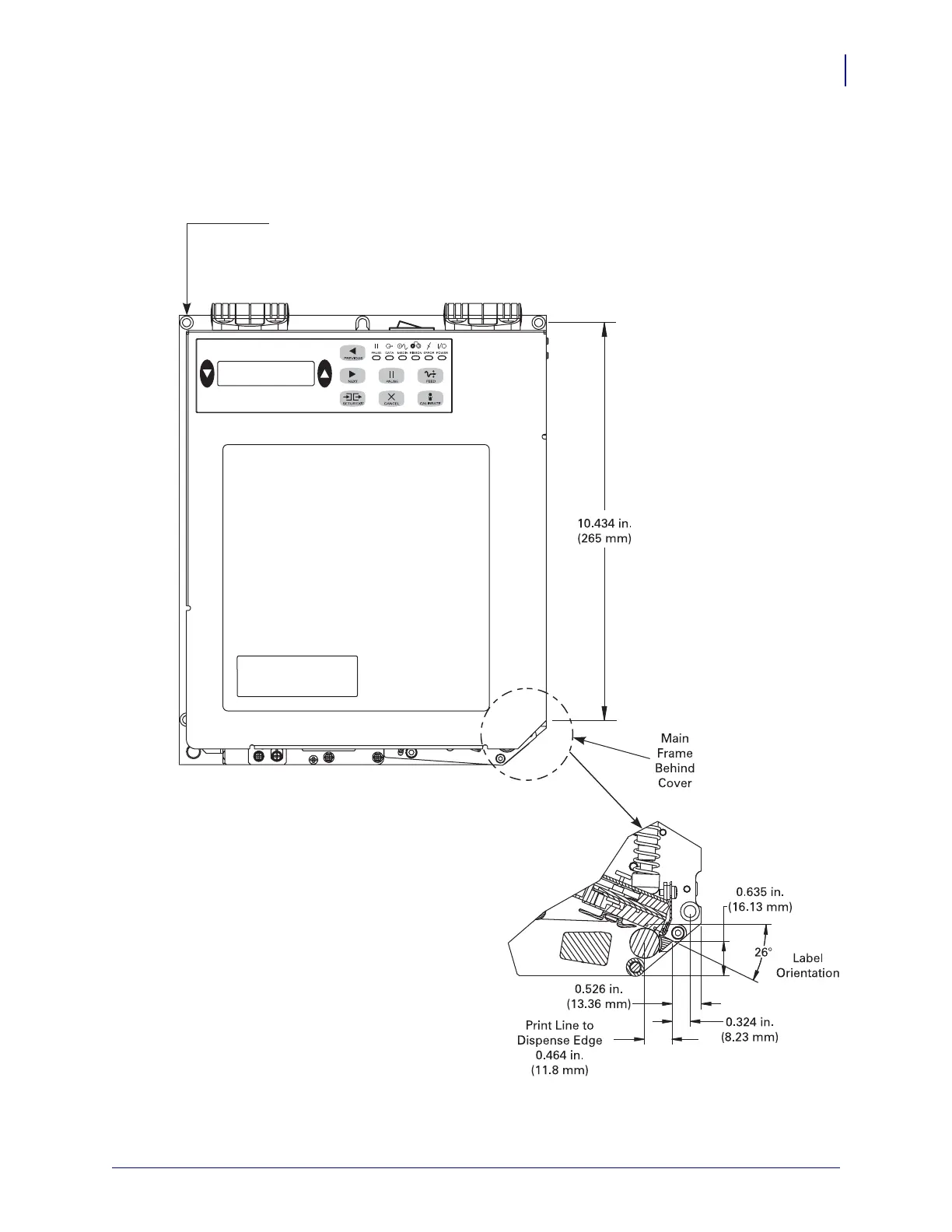

Figure 4 • Front View of Right-Hand Print Engine (110PAX4 and R110PAX4)
5 mounting screws
- 0.218 in. (5.5 mm) through
- counterbore 0.350 in. x 0.197 in. (8.9 x 5 mm) deep
- socket head cap screw (M5 or 10-3)

Zebra HC100 Specifications

General

Product color	Black
