Design Your Own Mounting
The illustration below gives an example of a printer-mounting shelf:
Additional space is required for paper loading and service access. Consider mounting the
printer on a movable platform so that the printer can be maintained outside the printer
enclosure.
Note • We recommend making the output slot 97 mm wide. This width should
accommodate all paper widths that the KR203 printers can handle.
Caution • NEVER use screws that go into the printer more than 4 mm! This will damage or
destroy the electronics inside. See "Printer Mounting" on page 16.

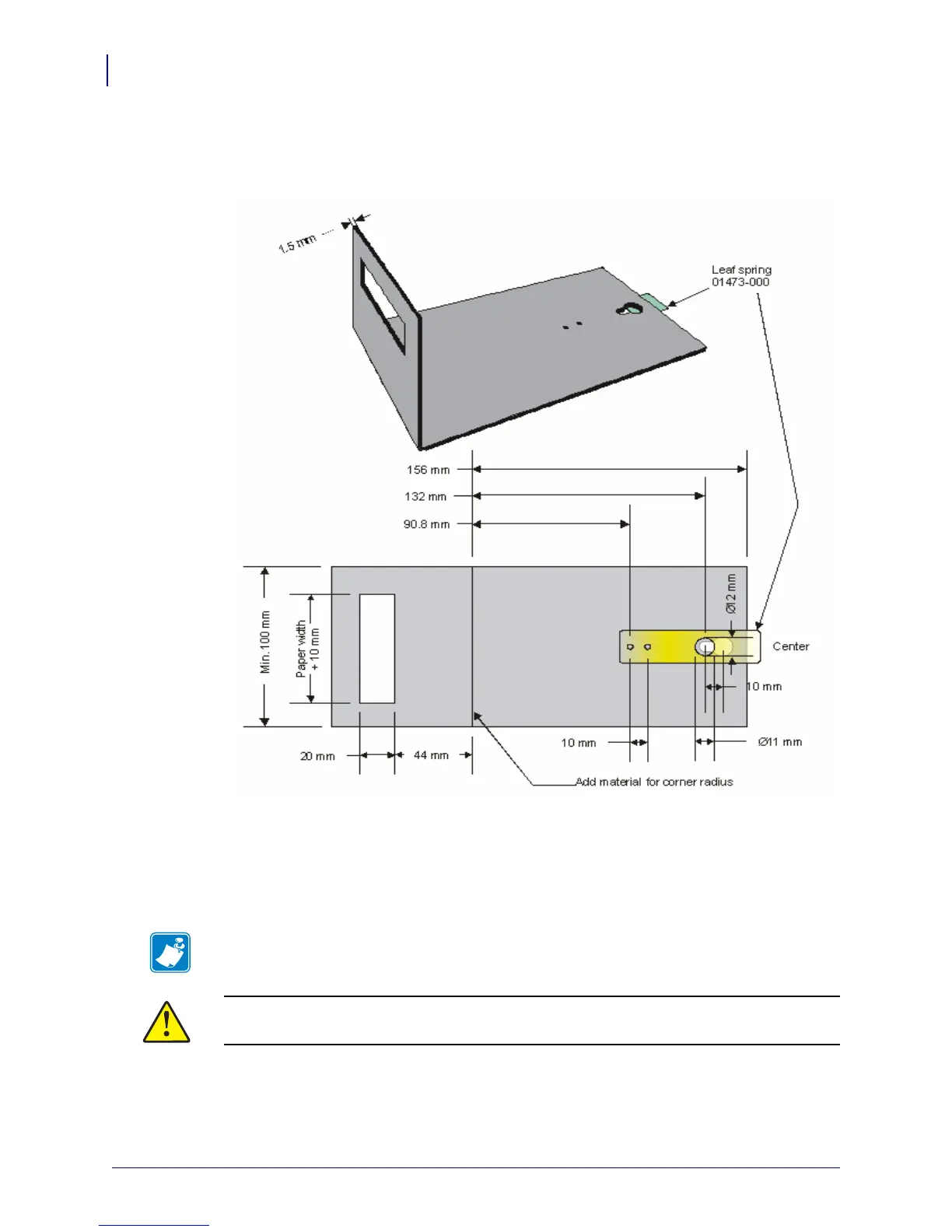

Figure 3-9 • Printer Mounting
