Accessories
Printer Mounting Plate – 104208
52
P1028247-001 Rev. B KR203 Hardware Integrator Guide 10/26/2010
Printer Mounting Plate – 104208
The Printer Mounting Plate preforms several functions:
• Provides a solid printer mounting base.
• Designed to work with the Universal Roll Holder accessory (page 53) for the ‘Low’
and ‘Under’ the printer mounting positions
• This plate or an equivalent custom design is required to protect the cables and
media from interfering with each other and the operator when the media roll is
mounted under the printer
• Includes a inertia dampening spring roller to optimize printer performance when
using the large 250mm (10 inch) diameter media rolls.

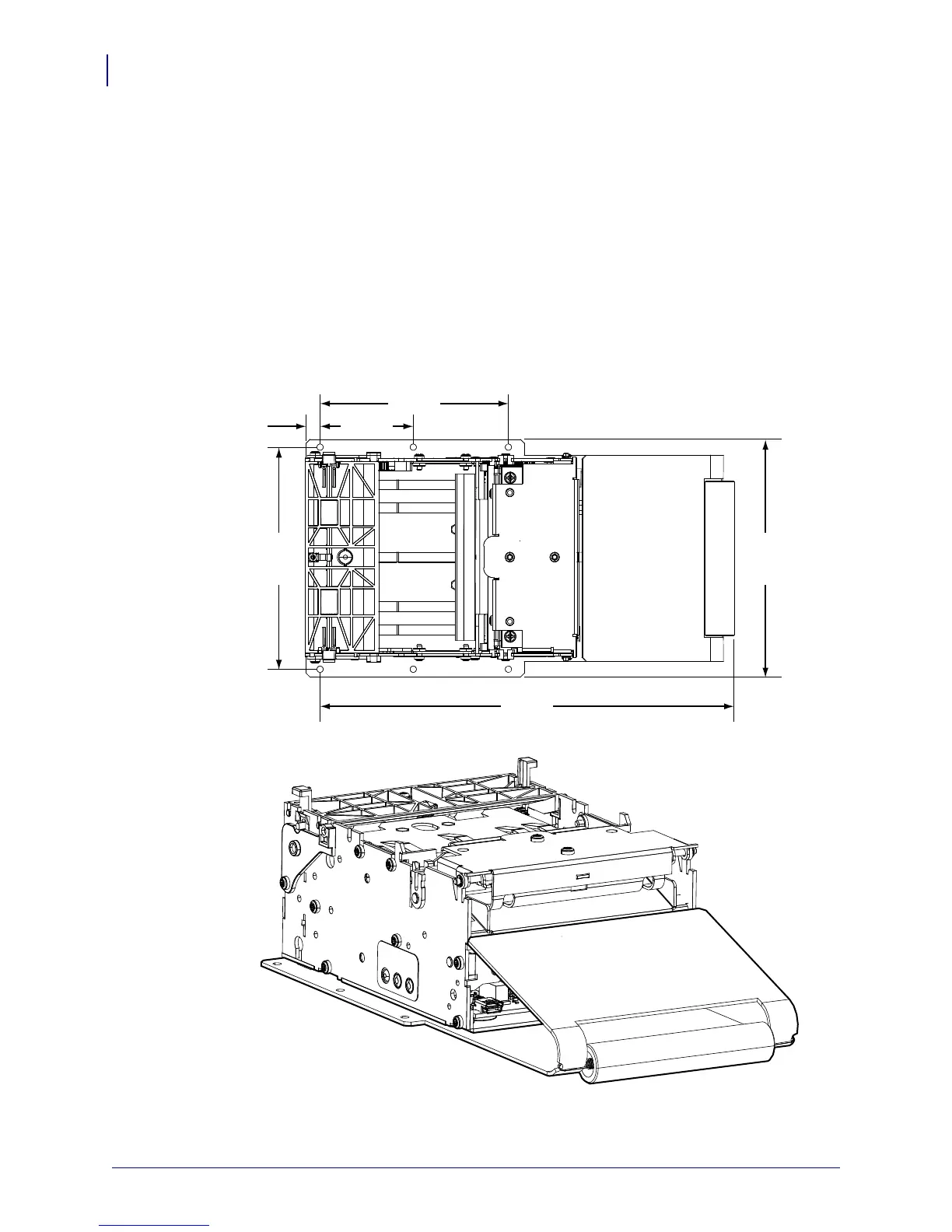

95mm
217mm
47mm
112mm
120mm
8mm
