Basic Media Mounting Considerations
46
P1016701-001 Rev. B KR403 Hardware Integrator Guide 9/24/2010
Media Supply Method
The KR403 printer supports two basic media supply method types: outside wound roll
mount and stacked fan-fold receipt media. The media printing surface faces up towards
the ‘top’ of the printer and away from the body of the printer.
Media Input Aperture
The KR403 printer has a wide aperture to support a wide range of media mounting
locations. The media can enter the printer directly or indirectly with the addition of custom
media guides or printer roll or mounting accessory kits.

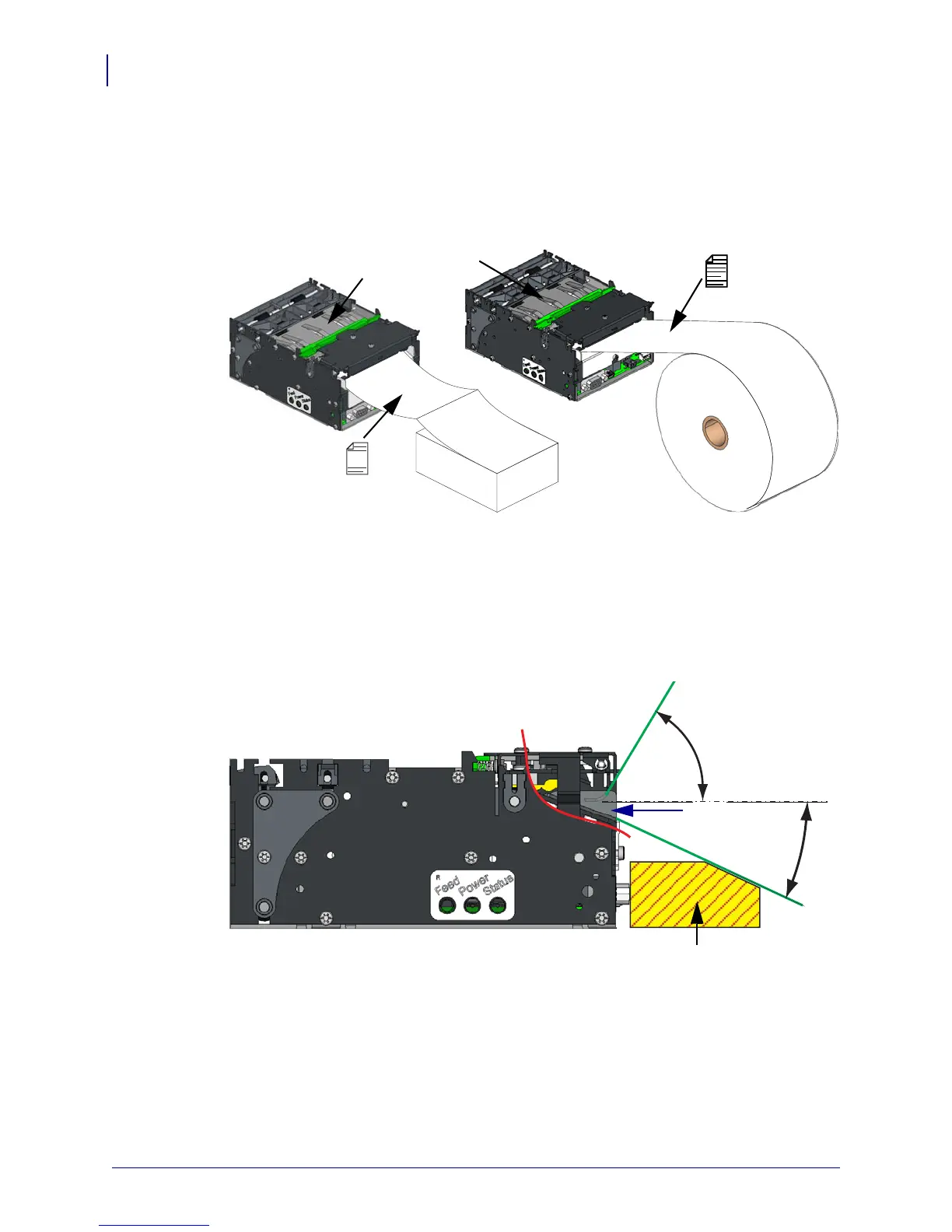

Figure 5-17 • Media Supply
Top of Printer
(Any Orientation)
Printing
Surface
Printing
Surface
Figure 5-18 • Media Input Aperture
25°
59°
Side Panel Cut Away
Media In
Minimum Clearance Area for
Printer Power and Cabling
