49
Media
Basic Media Mounting Considerations
9/24/2010 KR403 Hardware Integrator Guide P1016701-001 Rev. B
The areas of primary concern are the horizontal operation’s ‘loop area’ and ‘waste bin’,
and vertical operations ‘receipt presented storage’, ‘waste bin’ and open ‘loop area’ (with
no loop). These two areas can require special attention when designing the inside of the
kiosk. The printer needs the space to store the printed receipt before presenting it to the
customer. The longer the receipt, the greater the area needed. When mounting the printer
at angles other than the nominal vertical or horizontal orientations, simulated receipt
printing operations should be observed with ideally the chosen media for use in the kiosk
and in the environmental conditions that it will operate on-site.

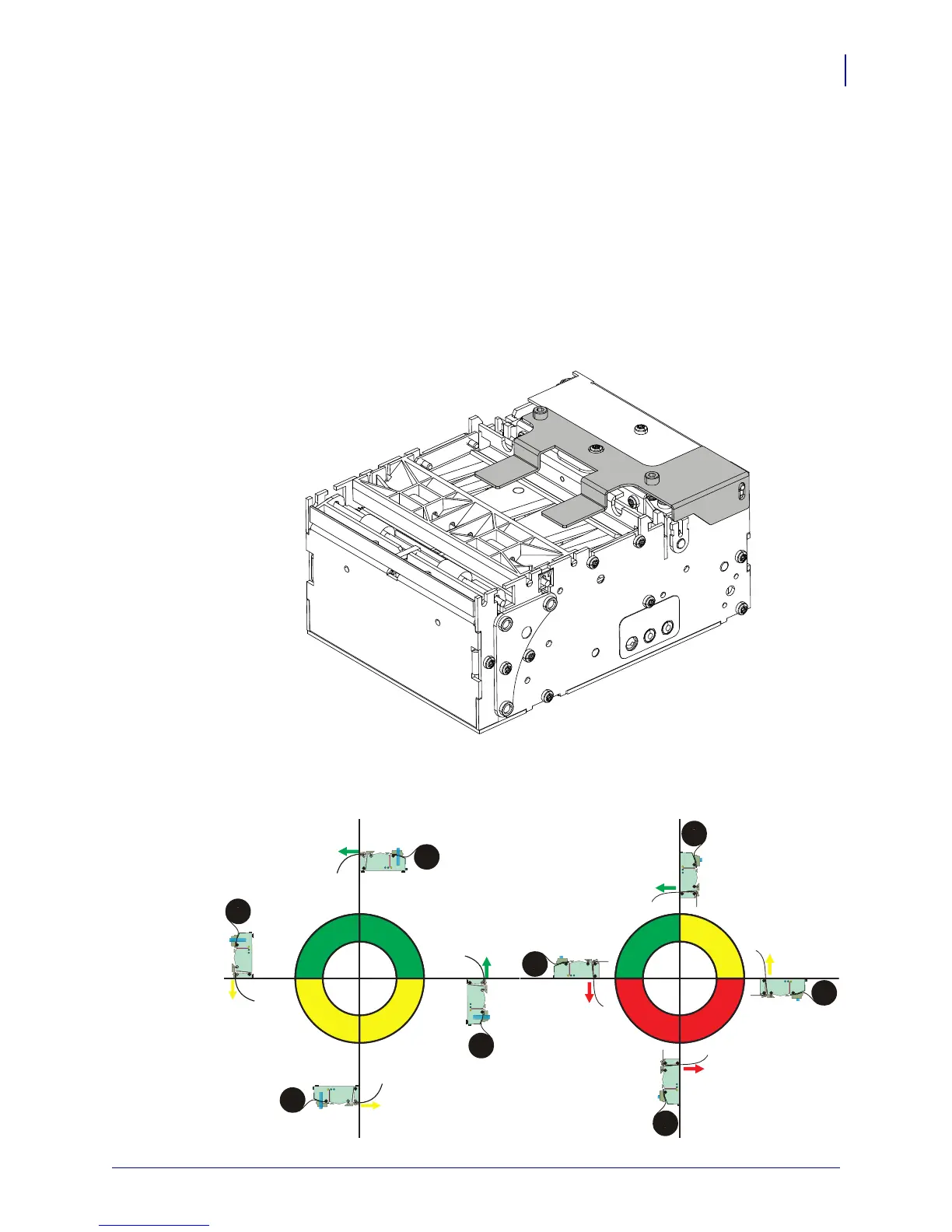

The KR403 mounting becomes even more versatile if the Small Roll Media Roll Adapter
accessory is used to guide the leading edge of receipt into the input of the media drive
rollers. This allows the printer to be mounted in a wider range of mounting orientations
shown below
Figure 5-21 • Small Core Media Adapter
