Media
Clearing Paper Jams
58
P1016701-001 Rev. B KR403 Hardware Integrator Guide 9/24/2010
Clearing Paper Jams
Should a paper jam occur, follow the procedure below:
1. Cut or tear the media off the front of the printer.
2. Open the printhead.
3. Remove and discard the damaged media.
4. Close the printhead and reload the media using the Auto Load media loading method
(page 56).

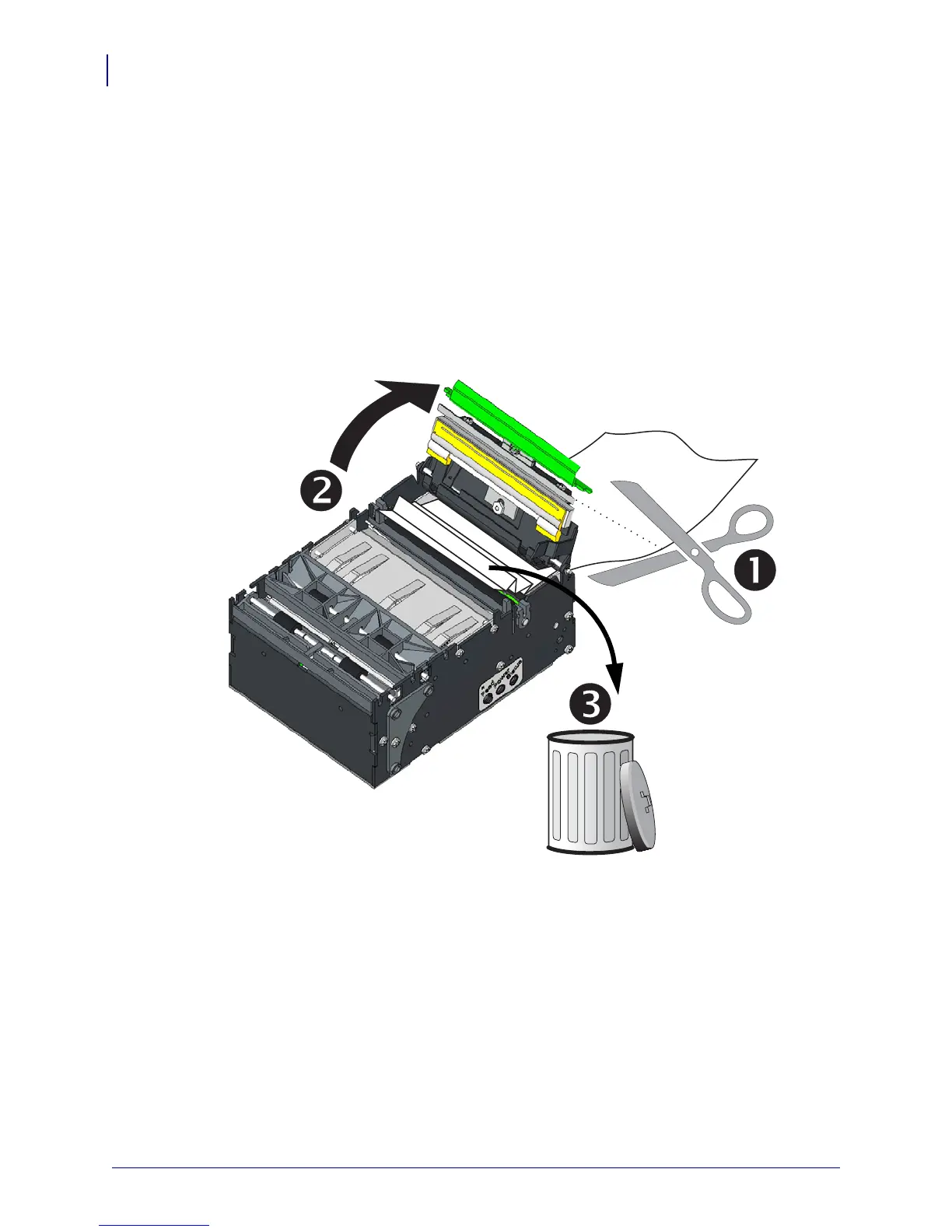

Figure 5-29 • Clearing Paper Jams
