Zebra KR403 - Routing Cables with the Large Media Roll Adapter

Accessories
Routing Cables with the Large Media Roll Adapter
84
P1016701-001 Rev. B KR403 Hardware Integrator Guide 9/24/2010
Routing Cables with the Large Media Roll Adapter
Media Roll Low Sensor
When the universal roll holder is attached to the large medial roll adapter, the 500mm
media roll low sensor should be used (see "Media Roll Low Sensor" on page 69).
Left Side Routing

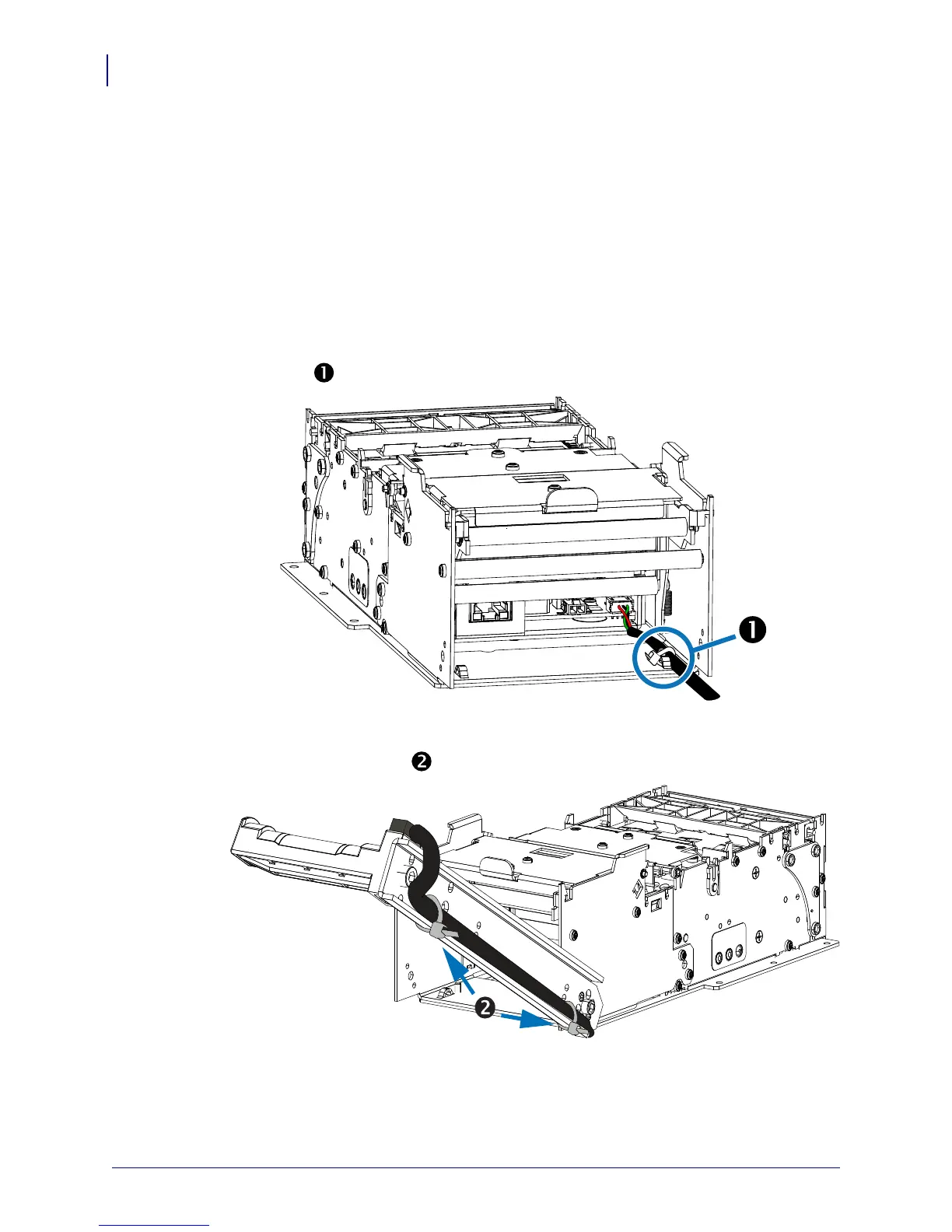

1. Plug the media roll low sensor into the printer.
2. Secure the wiring to the tie-down point on the large media roll adapter using a plastic
cable tie .
3. Route the wiring under and to the outside of the universal roll holder and secure it
using plastic cable ties .
4. Attach the sensor to the roll support using the screw.
