Zebra P110i Service Manual

2Zebra P110i / P110m / P120i Card Printers Service Manual 980584-001 Rev. A
1.2 Features, Controls, and Indicators

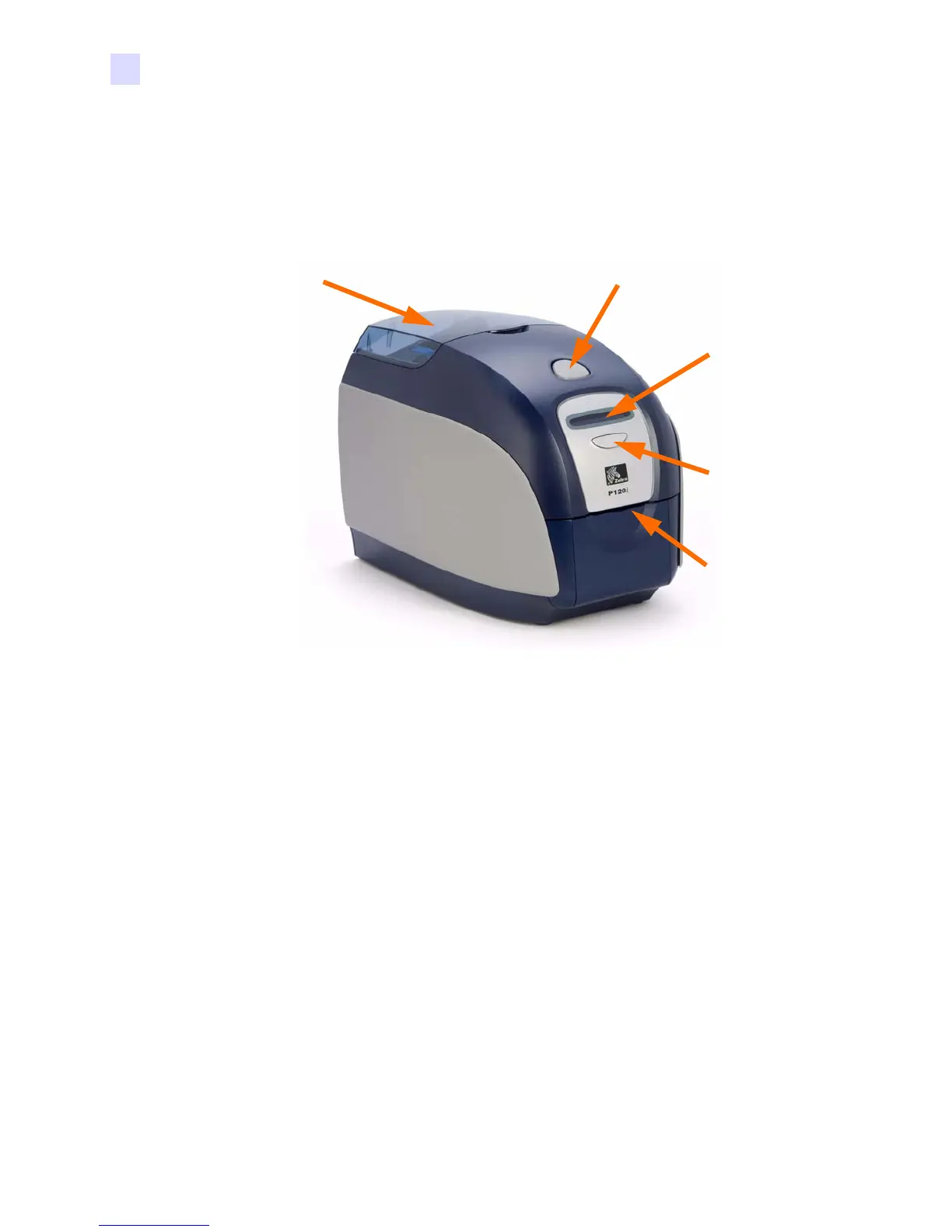

The picture below points out some of the printer’s external features. (See Chapter 3 for an
interior view.
Covered Card Feeder
Opening the Card Feeder Cover gives access to the automatic card feeder. The translucent
cover allows you to see when the card supply is running low.
Lid Release Button
Pressing the Lid Release Button allows the printer’s lid to swing open. This gives internal
access for changing the Ribbon Cartridge, changing Cleaning Rollers, and cleaning the printer.
LCD Display Panel
The LCD Display Panel displays printer status information. Messages also alert the user of the
need for action, and indicate certain fault conditions.
Card Entry /
Exit Slot
LCD Display
Panel
Multi-Function
Control Button
Lid Release
Button
Card Feeder
Cover

Zebra P110i Specifications

General

USB 1.1 ports quantity	1
Weight (imperial)	10 lbs
Dimensions (WxDxH)	201 x 328 x 235 mm
Storage temperature (T-T)	23 - 158 °F
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
Power requirements	100 ~ 240 Volts AC, 50 ~ 60 Hz
Certification	FCC Class A CE UL CUL

Weight and Dimensions

Weight	4500 g
