14 P430i User’s Manual 980470-001 Rev. A
Installation and Setup
Installing the Card Cleaning Cartridge
Installing the Card Cleaning Cartridge
The Card Cleaning Cartridge cleans the cards entering the printer. The Card Cleaning Cartridge consists of a
Cartridge Frame and an Adhesive Roller, which are packed together.

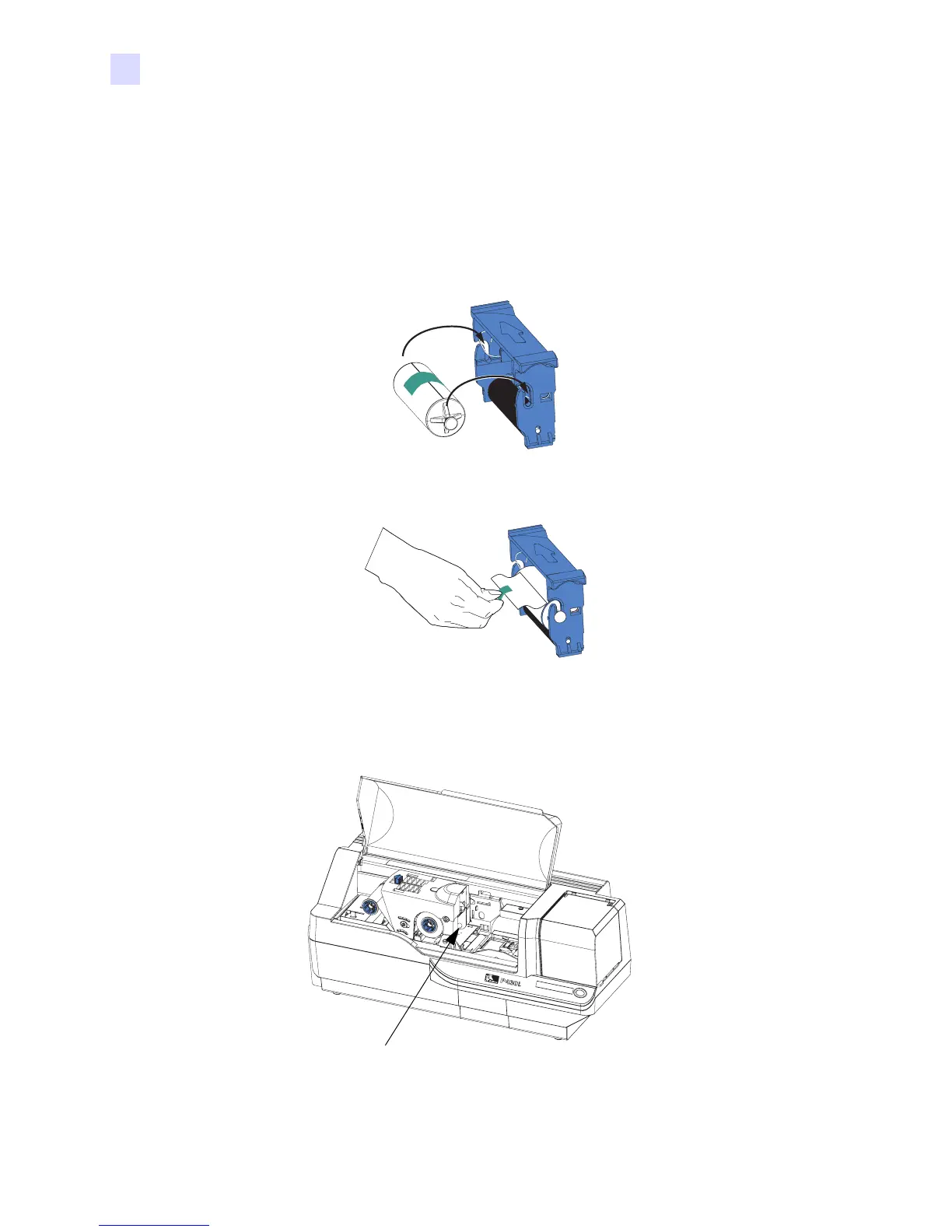

1. Remove the Cartridge Frame and the Adhesive Roller from their packaging. Insert the Adhesive Roller into
the Cartridge Frame, as shown below. To avoid contamination, always hold the frame and the roller by the
ends.
.
2. Peel the protective wrapper from the Adhesive Roller.
3. If the printer’s Main Lid is closed, open it. Locate the area where the Card Cleaning Cartridge will be
installed (initially, this area was covered by a warning tape).
D
ual-Sided
Color
Card Cleaning
Cartridge Mounting
Location
To Next Page
