RS5100 Quick Start Guide
10
Scan2Pair
To pair the RS5100 with a device, such as the WT6000 or TC52 using SSI:
1. On the device, touch > . The Bluetooth Pairing Utility opens.

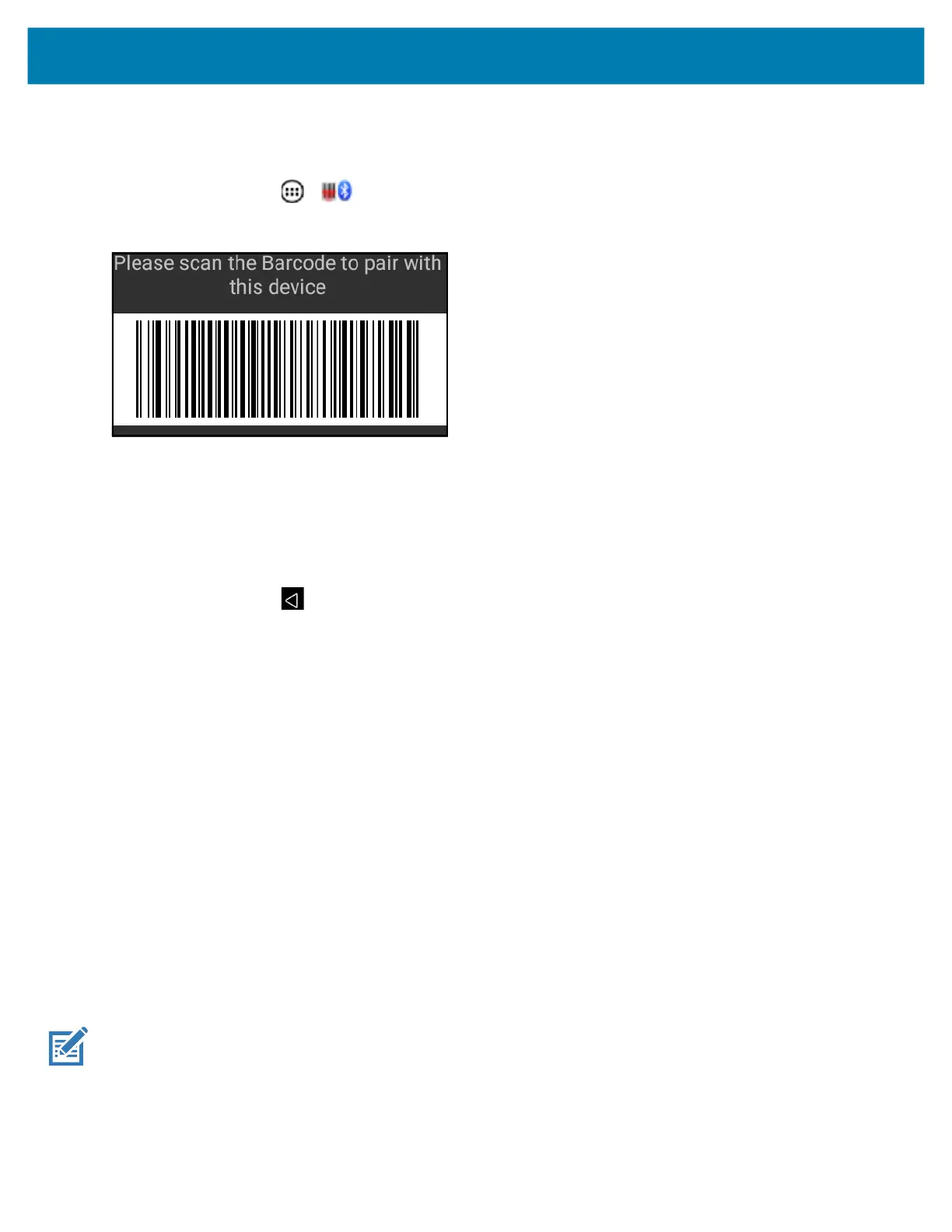

Figure 7 Bluetooth Pairing Utility
2. Using the RS5100, scan the barcode on the screen.
The Status LED blinks blue indicating that the RS5100 is attempting to establish a connection with the device.
When a connection is established, the Status LED turns off and the RS5100 emits a single string of low/high
beeps.
The device indicates a successful pairing attempt with a toast notification (audio and visual). When the
Bluetooth connection is established, pop-up notifications appear on the device’s screen.
3. On the device, touch to return to the main screen.
Scanning
The RS5100 is available with two scan engine options: the SE4710 and SE4770. The SE4710 emits an orange
LED dot aimer, while the SE4770 emits a red laser cross-hair aimer. For information on enabling scanning, refer to
the RS5100 Product Reference Guide.
RS5100 Scanning with SE4710
To scan a barcode:
1. Launch a scanning application.
2. Press the Scan Trigger and aim the device at a barcode.
3. Adjust the position of the device so that the orange aiming dot appears at the center of the barcode.
Ensure the barcode is within the area formed by the aiming pattern. The aiming dot is used for increased
visibility in bright lighting conditions.
The Status LED illuminates red. Upon successful decode, the Status LED changes from red to green and an
audible beep sounds.
NOTE: When the device is in Picklist Mode, the imager does not decode the barcode until the crosshair or aiming dot touches
the barcode.
4. Release the Scan Trigger.
The barcode data displays on the screen.
