Zebra S4M Parts Catalog

S4M Parts Catalog

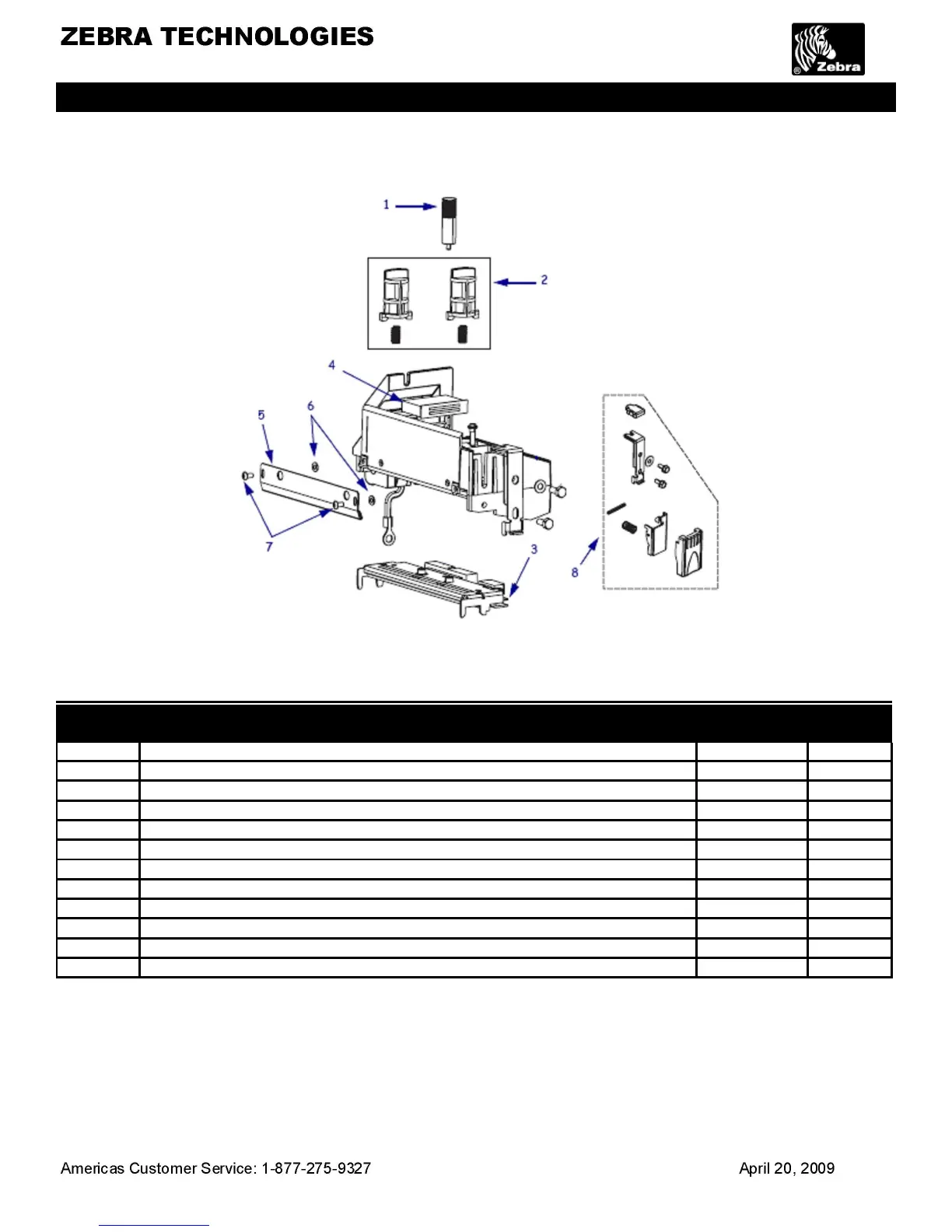

Print Mechanism Components
Item
Number
Description Part Number
Kit
Quantity
1 Screw, Printhead Mounting, QTY OF 5 HW77047 5
2 Pressure Dials and Springs G77172M 2
3 Printhead Assy, S4M (203 dpi) G41400M 1
3 Printhead Assy, S4M (300 dpi ) G41401M 1
4 Magnetic Latch 77660 1
5 Ribbon Strip Plate 77049-104 1
6 Washer 0.250 X 0.125 X 0.023 (Qty of 25) HW79041 25
7 Screw M3 X 0.5 X 6 (Qty of 25) HW78809 25
8 Kit Maint Print Mech Latch ZxM+ & S4M G77112M 1
Kit Printhead Cables S4M 20106M 1
Kit Dpi conversion from 203 dpi to 300 dpi G20112 1
Kit Dpi conversion from 300 dpi to 203 dpi G20111 1
3

Zebra S4M Specifications

General

Flash memory	4 MB
Internal memory	8 MB
Dimensions (WxDxH)	272 x 477 x 295 mm
Media types supported	continuous, die-cut, tag, black mark
Media thickness	0.076 - 0.15 mm
RS-232 ports	1
Standard interfaces	USB 2.0
Storage temperature (T-T)	5 - 40 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Weight	12400 g
