Zebra Stripe - Page 89

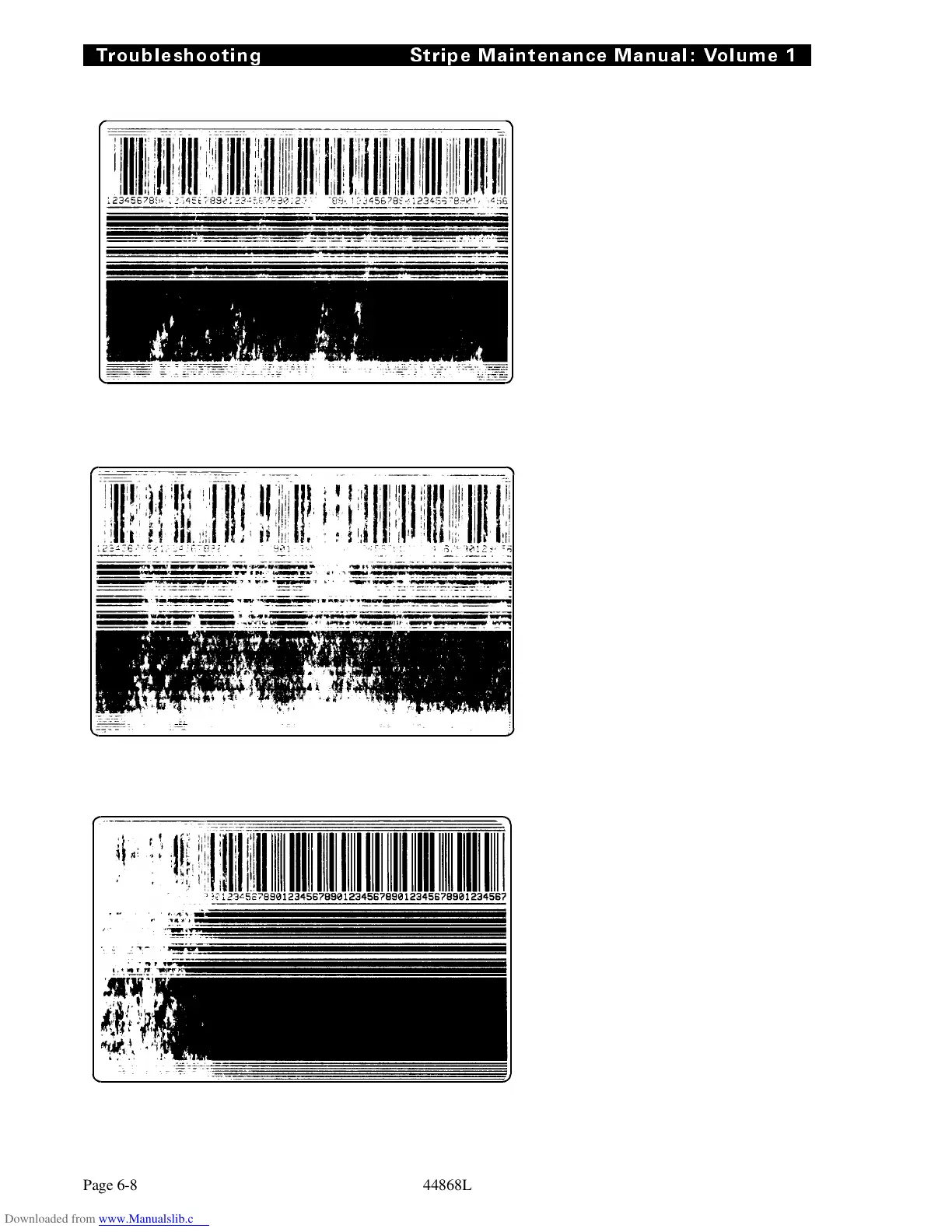

Unacceptable Label:
• Darkness properly set
• Printhead too far back
• Breakup on trailing edges
of bars (opposite the
direction of movement)
• Black is splotchy
• Printhead needs to come
forward on both sides
• Toggles balanced (equal
pressure on left and right
sides)
Unacceptable Label:
• Darkness properly set
• Printhead way too far back
• Breakup on trailing edges
of bars (opposite the
direction of movement)
• Black is splotchy
• Printhead needs to come
forward on both sides
• Toggles balanced (equal
pressure on left and right
sides)
Unacceptable Label:
• Darkness properly set
• Printhead position correct
on right side, but way too
far back on left side
• Noisy printing (breakup
on trailing edges of
horizontal bars - splotchy
on left side)
• Toggles balanced (equal
pressure on left and right
sides)
Troubleshooting Stripe Maintenance Manual: Volume 1
Page 6-8 44868L
