1: Introduction
Printer Components
Printer Components

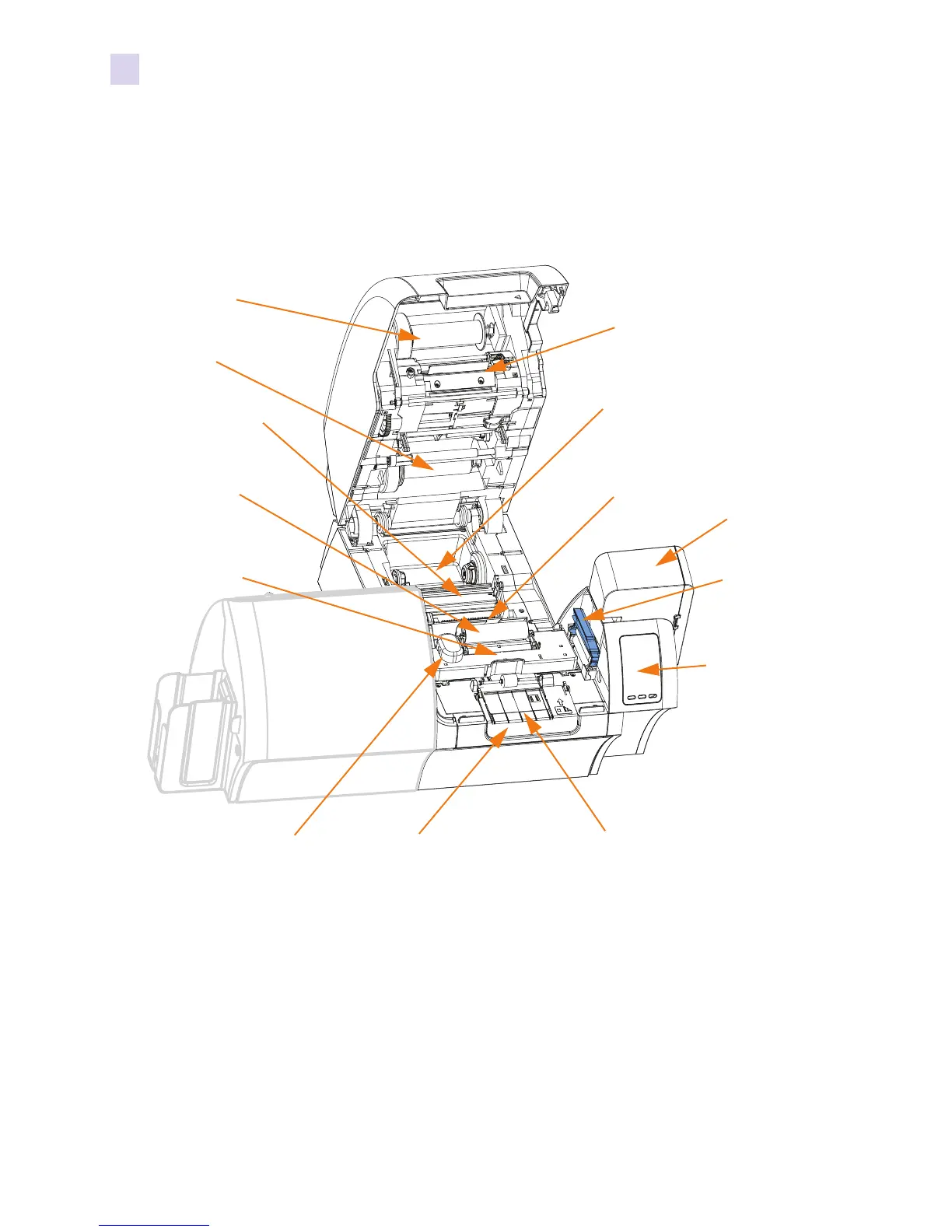

The following figure shows components of the Printer. If the Laminator is present, see page 3
for details.
Input Hopper
Operator Control
Panel (OCP)
Card Cleaning
Cartridge
Card Cleaning
Roller
Printhead
Print Ribbon Supply
behind card cleaning roller
Print Ribbon Take-Up
Transfer Film
Supply
Transfer Film
Take-Up
Single Card
Feed Slot
Printer Door (shown open)
Reject Bin
underneath input feed tray
Mag Encoder (optional)
behind idler cover
Transfer Station Card Slot
Smart Card (optional)
under this cover
