Cleanliness/integrity of the optical components (12) must be checked
before each use to ensure the accuracy of the measuring system.
Deformation/wear of the magnetic coupling balls (13) between the
UK sensor and Attachment may reduce the measurement accuracy
of the system.
Seite 18/69
Page 18/47JMA-Optic

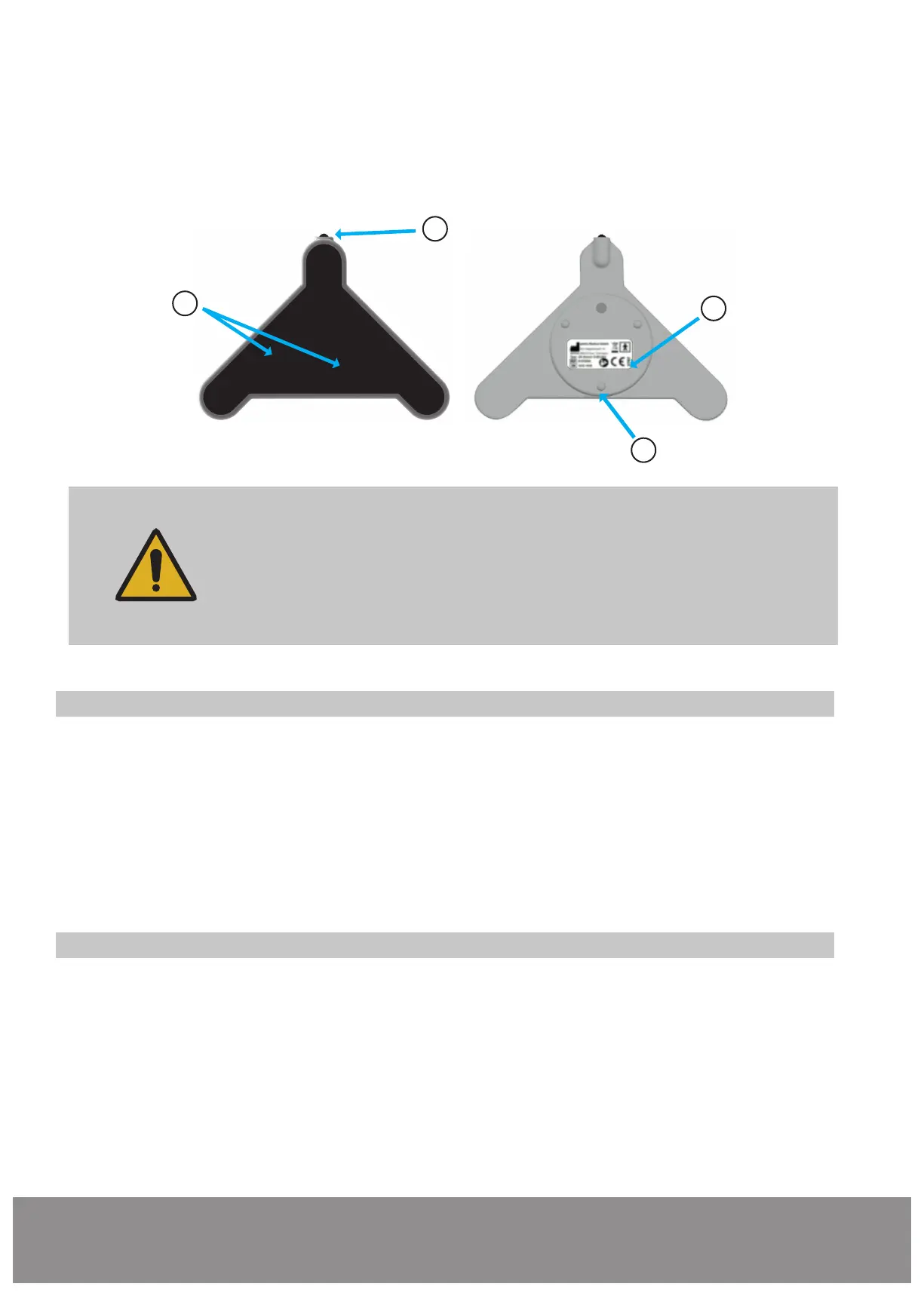

3.5. UK-Sensor OJM-UK1 (Lower Jaw Sensor)
12 IR-Sync LED’s
13 Magnetic coupling for lower jaw attachment
14 Product label
D Status-LED, “Measurement active” (green)
3.5.1. Technical data
Property Value
Dimensions (W x H x L) 67 x 15 x 45 mm
Weight 15 g
Battery Lithium coin cell; type CR 1632
Energy consumption (recording active) 2 mA
Battery life Recording: ~ 5 days
Standby: ~ 17 month
3.5.2. State LED
LED color Function Description
Flashing, green UK-Sensor is in operation Warning: “Battery low”
Permanent on, green UK-Sensor is in operation Battery condition good
D
12
13
14
