3.6. Induktive Charger JMA-Optic
The inductive charger is used for wireless charging of the JMA-Optic head bow and
for storing the head bow and the UK sensor.
The charging process starts automatically when the head bow is inserted into the
charger and the USB socket (15) is connected to a power source.

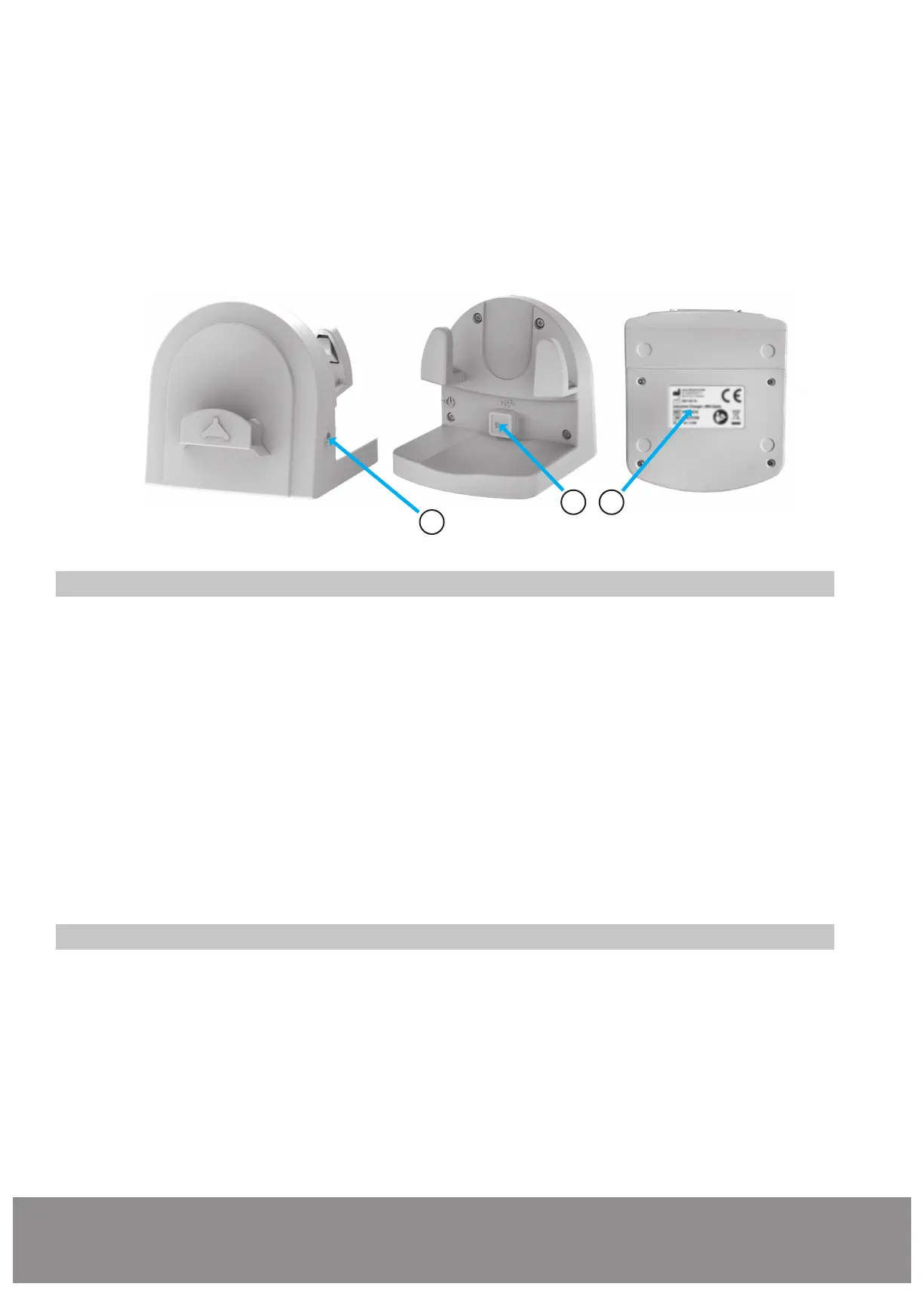

15 Power supply, USB socket, Inductive charger
16 Product labeling: Label, Inductive charger
E Status-LED, Inductive charger, “Power supply” (green)
3.6.1. Technical data
Property Value
Dimensions (W x H x L) 101 x 105 x 127 mm
Weight 340 g
Power source USB socket type B
Permitted power sources
■
USB power supply (included)
■
USB outlet of a computer
■
USB outlet of a USB-Hub
Standby current ~ 12 mA
(face bow is not charging)
Max. charging current ~ 500 mA (5V/1W)
3.6.2. State LED
LED color Function Description
Permanent on, green Device is charging Normal operation,
Power supply is active
15 16
