3.7. IR-FS / IR Foot Switch
The foot switch provides wireless control of the WINJAW+ software.
Each activation of the foot switch triggers the “next” function in the WINJAW+ software
1x and initiates the next step in the work fl ow.
The LED indicates the operation status of the foot switch.
If the switch is pressed permanently for more than approx. 2 seconds, the electronics
automatically switches off and the status LED shuts of.

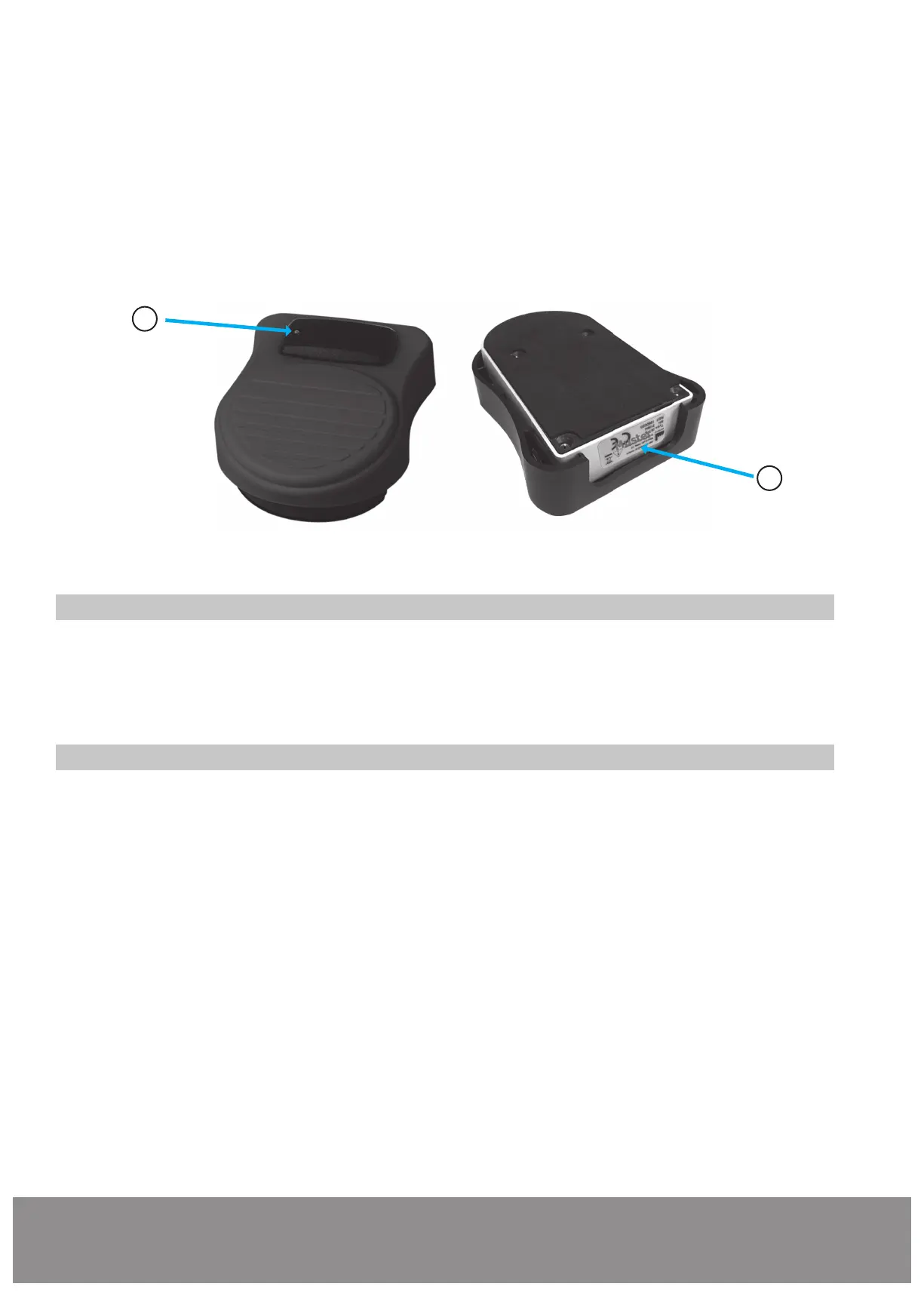

17 Product labeling: Label, IR Foot switch
F Status-LED, IR Foot switch, “Device active” (green), “Battery low” (orange)
3.7.1. Technical data
Property Value
Dimension (W x H x L) 84 x 35 x 120 mm
Weight 300 g
Battery Bloc battery 9V, type: 6LR91
3.7.2. Status-LED
LED color Function Description
Permanent on, green Device is in operation Normal operation,
Battery condition OK
Permanent on, orange Device is in operation Warning: Battery low
