Zenair CH2000 - Skin Specifications

ZENAIR CH2000 SERVICE MANUAL
________________________________________________________________________
NO.
MATERIAL
THICKNESS
NO.
MATERIAL
THICKNESS
1
FIBERGLASS
21
6061-T6
0.025
2
6061-T6
0.025
22
6061-T6
0.016
3
6061-T6
0.025
23
6061-T6
0.025
4
6061-T6
0.025
24
6061-T6
0.040
5
CARBON FIBRE
25
6061-T6
0.025
6
CARBON FIBRE
26
6061-T6
0.025
27
6061-T6
0.025
28
6061-T6
0.025
9
FIBERGLASS
FIRE RESISTANT
29
FIBERGLASS
10
FIBERGLASS
FIRE RESISTANT
30
6061-T6
0.016
11
6061-T6
0.025
31
6061-T6
0.016
12
6061-T6
0.025
32
6061-T6
0.032
13
6061-T6
0.025
33
6061-T6
0.032
14
6061-T6
0.025
34
6061-T6
0.025
15
6061-T6
0.025
35
6061-T6
0.016
16
6061-T6
0.025
36
FIBERGLASS
17
6061-T6
0.025
37
6061-T6
0.016
18
6061-T6
0.025
38
FIBERGLASS
OPTIONAL
19
6061-T6
0.025
39
FIBERGLASS
OPTIONAL
20
6061-T6
0.025
40
6061-T6
0.016

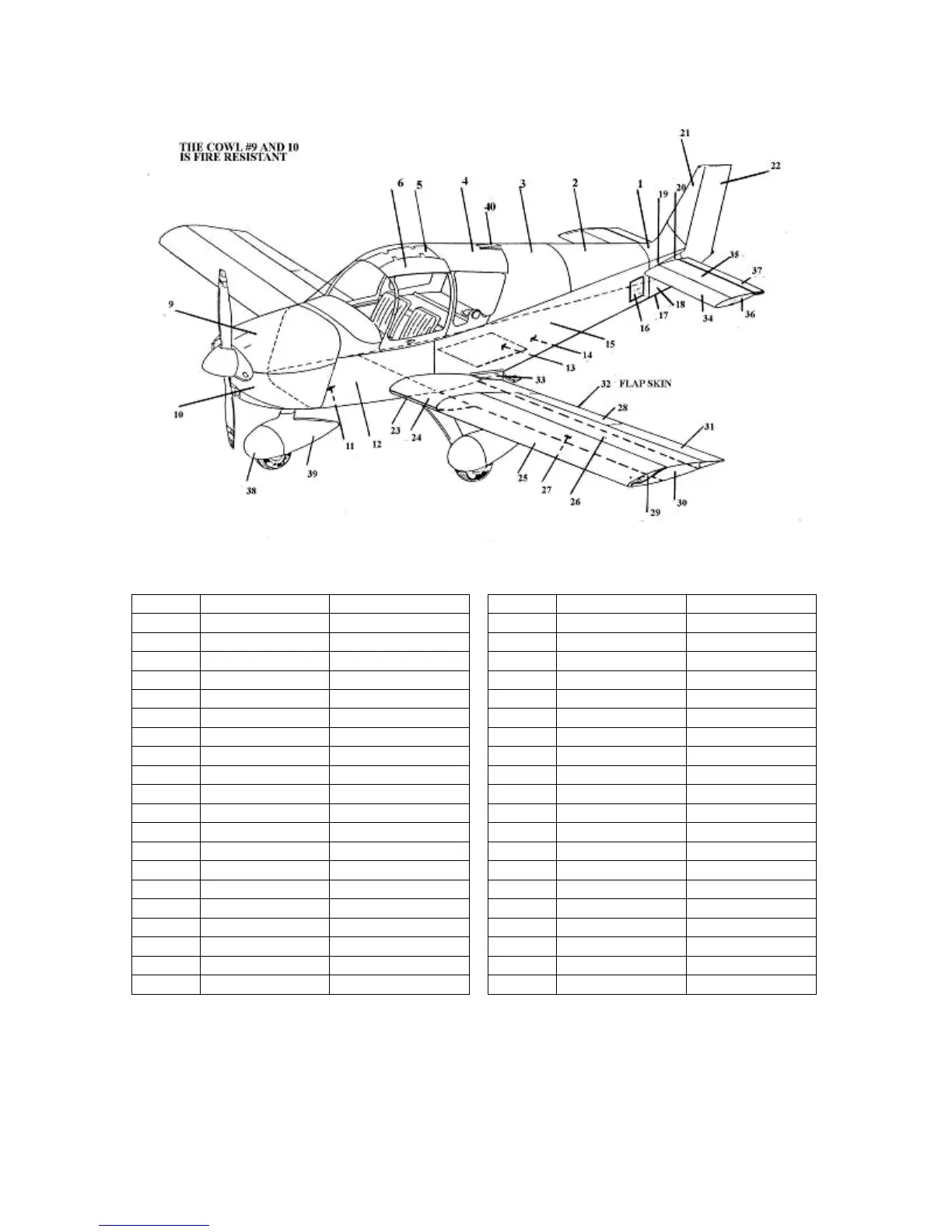

CH2000 SKIN SPECIFICATIONS
- Fig. 7 -
Nov-02 4.3
