10

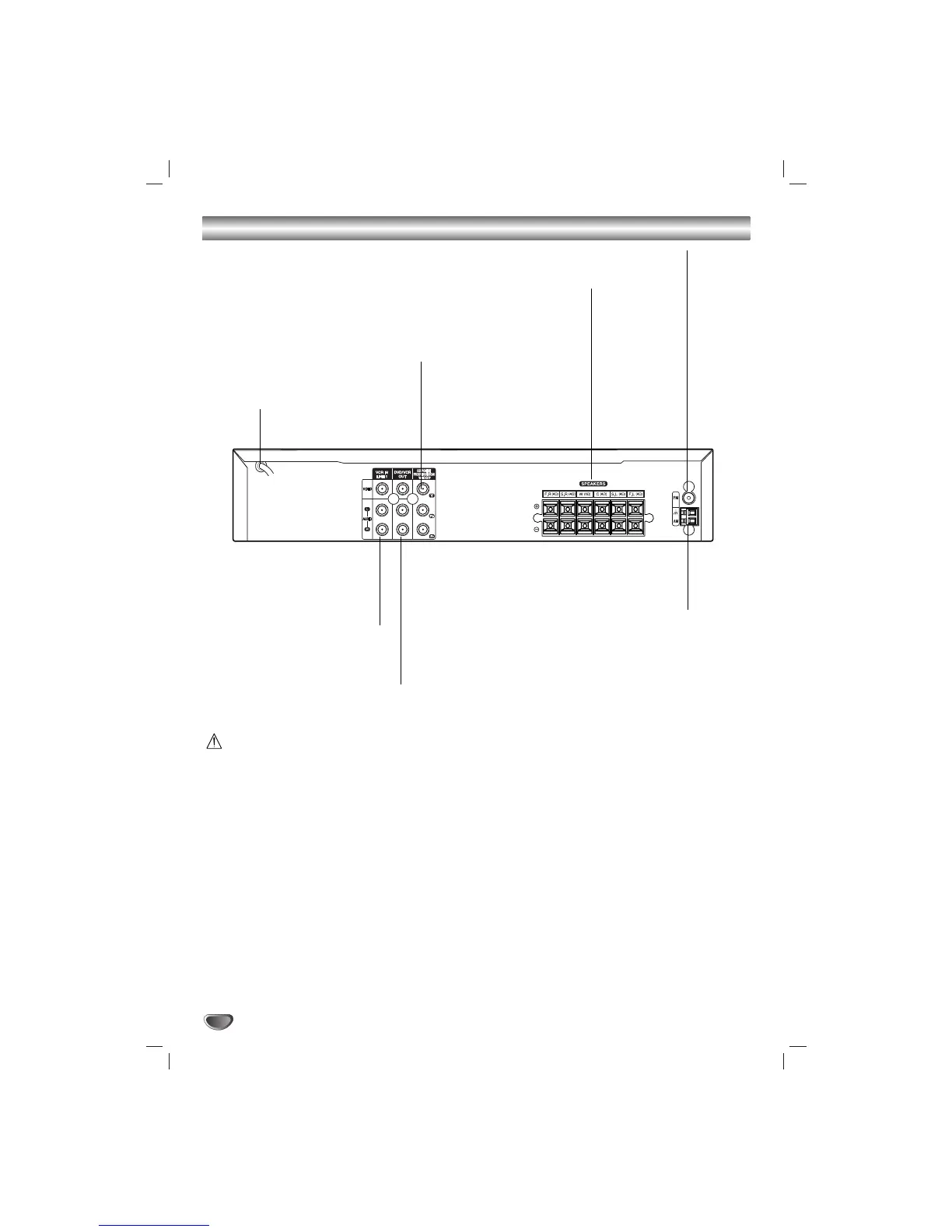

Rear Panel Connections
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent dam-
age to the unit.
VCR IN LINE 1
(VIDEO/AUDIO (Left/Right))
Connect the audio/video output
of an external
source (Audio system, TV/Monitor,
another VCR).
DVD/VCR OUT VIDEO OUT/AUDIO OUT
(Left/Right))
Connect to a TV with video and
audio inputs.
AC Power Cord
Plug into the power source.
SPEAKER CONNECTORS
Connect the six supplied speakers to
these terminals.
COMPONENT/PROGRESSIVE SCAN
VIDEO OUT (Y Pb Pr)
Connect to a TV with Y Pb Pr inputs.
FM ANTENNA CONNECTORS
Connect the FM antenna to this terminal.
AM ANTENNA CONNECTORS
Connect the AM antenna to
this terminal.
