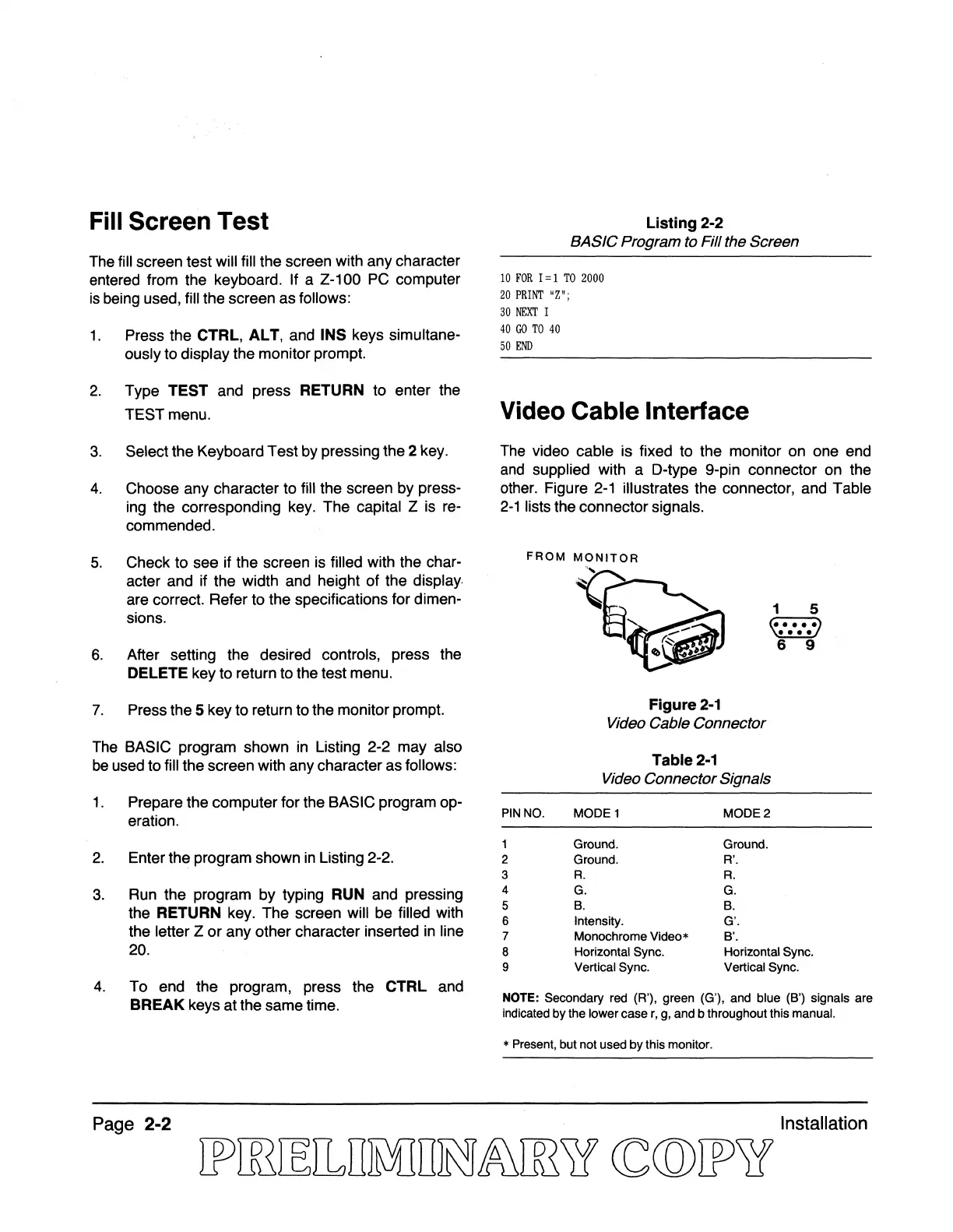

Fill Screen Test
The
fill screen test will fill the screen with any character
entered from the keyboard. If a Z-100
PC
computer
is
being used, fill the screen as follows:
1.
Press the CTRL,
AL
T,
and INS keys simultane-
ously to display the monitor prompt.
2.
Type TEST and press RETURN to enter the
TEST menu.
3.
Select the Keyboard Test
by
pressing the 2
key.
4.
Choose any character to fill the screen
by
press-
ing
the corresponding
key.
The capital Z
is
re-
commended.
5.
Check to see if the screen is filled with the char-
acter and if the width
and
height of the display.
are correct. Refer to the specifications for dimen-
sions.
6.
After setting the desired controls, press the
DELETE key to return to the test menu.
7.
Press the 5 key to return to the monitor prompt.
The
BASIC program shown
in
Listing 2-2 may also
be
used
to fill the screen with any character as follows:
1.
Prepare the computer for the BASIC program op-
eration.
2.
Enter the program shown
in
Listing 2-2.
3.
Run
the program by typing
RUN
and pressing
the RETURN
key.
The screen will
be
filled with
the letter Z or any other character inserted
in
line
20.
4.
To end the program, press the CTRL and
BREAK keys at the same time.
Listing
2-2
BASIC Program to Fill the Screen
10
FOR
I = 1
TO
2000
20
PRINT
"Z";
30
NEXT
I
40
GO
TO
40
50
END
Video Cable Interface
The
video cable is fixed to the monitor on one
end
and
supplied with
aD-type
9-pin connector
on
the
other.
Figure
2-1
illustrates the connector, and Table
2-1
lists the connector signals.
FROM
MONITOR
",
"'!oo
Figure
2-1
1 5
c.;;;;)
\!...!...!..!..
6 9
Video Cable Connector
Table
2-1
Video Connector Signals
PIN NO.
MODEl
MODE
2
1 Ground. Ground.
2 Ground.
R'.
3
R.
R.
4 G.
G.
5
B.
B.
6
Intensity.
G'.
7
Monochrome
Video*
B'.
a Horizontal Sync. Horizontal Sync.
9 Vertical Sync. Vertical Sync.
NOTE: Secondary red (R'), green (G'), and blue (B') signals are
indicated
by
the lower
case
r,
g, and b throughout this manual.
* Present, but not used
by
this monitor.
Page
2-2 Installation
