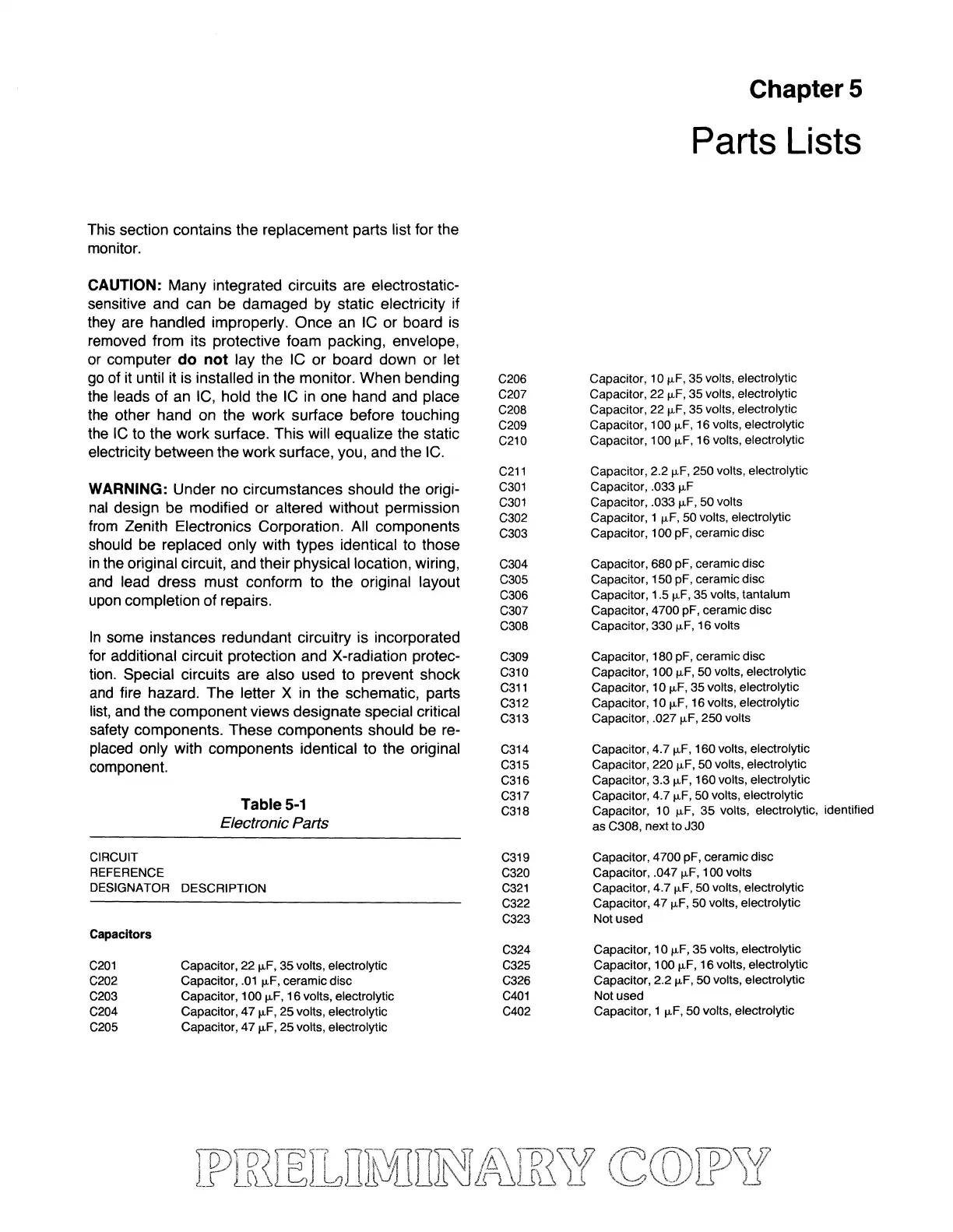

This section contains the replacement parts list for the
monitor.
CAUTION: Many integrated circuits are electrostatic-
sensitive and can be damaged by static electricity if
they are handled improperly. Once
an
IC or board
is
removed from its protective foam packing, envelope,
or computer
do not lay the IC or board down or let
go
of it until it is installed in the monitor. When bending
the
leads of
an
IC, hold the IC
in
one hand and place
the
other hand on the work surface before touching
the
IC
to the work surface. This will equalize the static
electricity between the work surface, you, and the
IC.
WARNING: Under no circumstances should the origi-
nal
design be modified or altered without permission
from
Zenith Electronics Corporation. All components
should be replaced only with types identical to those
in
the original circuit, and their physical location, wiring,
and
lead dress must conform to the original layout
upon completion of repairs.
In
some instances redundant circuitry is incorporated
for additional circuit protection and X-radiation protec-
tion.
Special circuits are also used to prevent shock
and
fire hazard. The letter X
in
the schematic, parts
list,
and the component views designate special critical
safety components. These components should be re-
placed only with components identical to the original
component.
CIRCUIT
REFERENCE
Table
5-1
Electronic Parts
DESIGNATOR DESCRIPTION
Capacitors
C201
C202
C203
C204
C205
Capacitor,
22
f1.F,
35
volts, electrolytic
CapaCitor,
.01
f1.F,
ceramic disc
Capacitor,
100
f1.F,
16
volts, electrolytic
Capacitor,
47
f1.F,
25
volts, electrolytic
Capacitor,
47
f1.F,
25
volts, electrolytic
C206
C207
C208
C209
C210
C211
C301
C301
C302
C303
C304
C305
C306
C307
C308
C309
C310
C311
C312
C313
C314
C315
C316
C317
C318
C319
C320
C321
C322
C323
C324
C325
C326
C401
C402
ChapterS
Parts
Lists
Capacitor, 10
f1.F,
35
volts, electrolytic
Capacitor,
22
f1.F,
35
volts, electrolytic
Capacitor, 22
f1.F,
35
volts, electrolytic
Capacitor, 100
f1.F,
16 volts, electrolytic
Capacitor, 100
f1.F,
16 volts, electrolytic
Capacitor, 2.2
f1.F,
250 volts, electrolytic
Capacitor, .033
f1.F
Capacitor, .033
f1.F,
50
volts
Capacitor,1
f1.F,
50 volts, electrolytic
Capacitor, 100 pF, ceramic disc
Capacitor, 680 pF, ceramic disc
Capacitor,
150
pF, ceramic disc
Capacitor, 1.5
f1.F,
35 volts, tantalum
Capacitor, 4700 pF, ceramic disc
Capacitor,
330
,.,.F,
16
volts
Capacitor, 180 pF, ceramic disc
Capacitor,
100
f1.F,
50
volts, electrolytic
Capacitor,
10
f1.F,
35
volts, electrolytic
Capacitor,
10
f1.F,
16 volts, electrolytic
Capacitor, .027
f1.F,
250 volts
Capacitor, 4.7 f1.F,160volts, electrolytic
Capacitor, 220
f1.F,
50
volts, electrolytic
Capacitor, 3.3
,.,.F,
160 volts, electrolytic
Capacitor, 4.7
,.,.F,
50
volts, electrolytic
Capacitor, 10
,.,.F,
35
volts, electrolytic, identified
as
C308, next
to
J30
Capacitor, 4700 pF, ceramic disc
Capacitor, .047
f1.F,
100 volts
Capacitor, 4.7
,.,.F,
50
volts, electrolytic
Capacitor,
47
f1.F,
50
volts, electrolytic
Not used
Capacitor,
10
,.,.F,
35
volts, electrolytic
Capacitor, 100
,.,.F,
16
volts, electrolytic
Capacitor, 2.2
f1.F,
50
volts, electrolytic
Not used
Capacitor,1
f1.F,
50 volts, electrolytic
