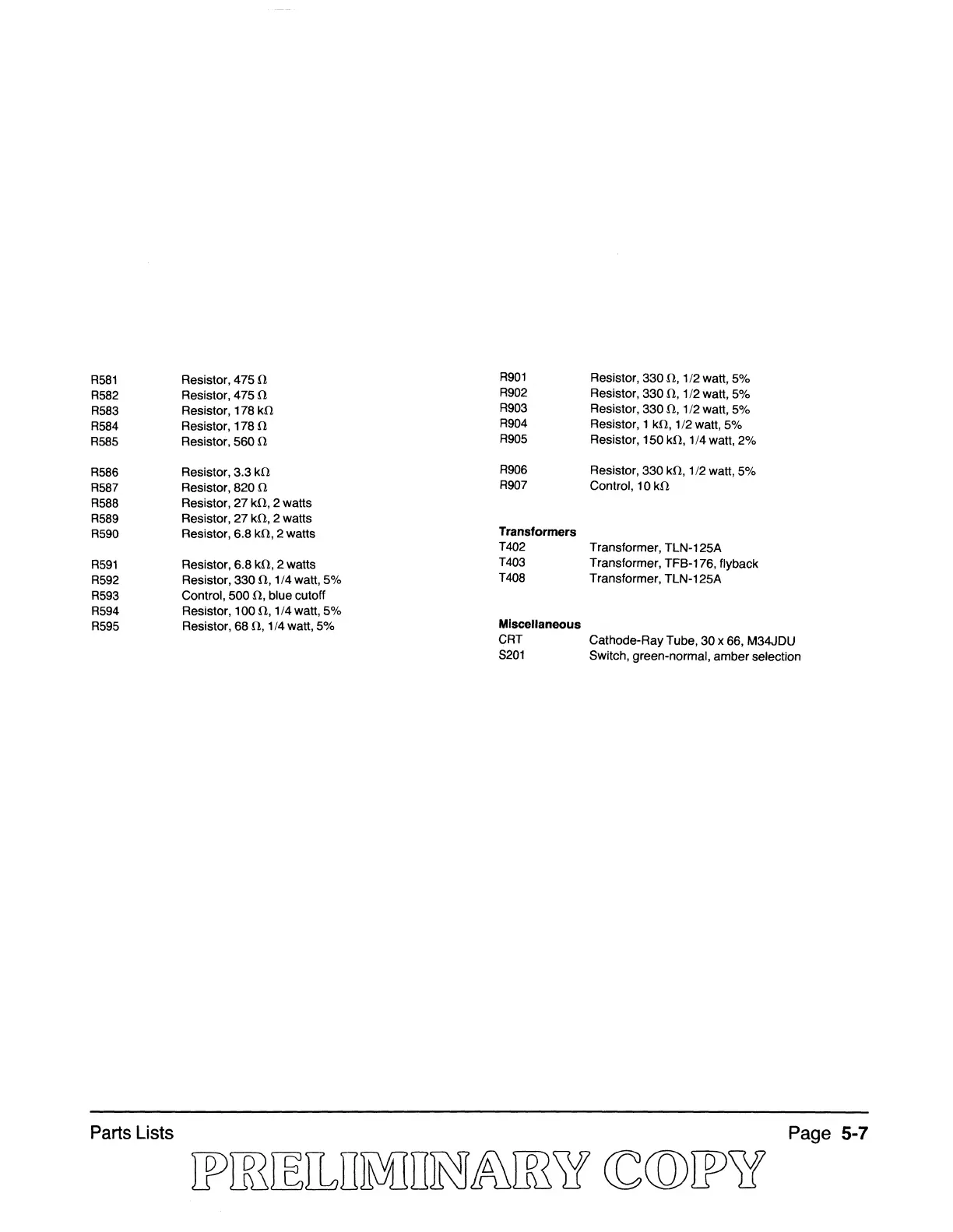

Zenith ZVM-1380 - Page 25

R581
Resistor, 475 n
R901
Resistor, 330 n, 1/2 watt, 5%
R582 Resistor, 475 n
R902
Resistor, 330 n, 1/2 watt, 5%
R583 Resistor, 178 kn
R903
Resistor, 330 n, 1/2 watt, 5%
R584 Resistor, 178 n
R904
Resistor, 1
kn, 1/2 watt, 5%
R585 Resistor, 560 n
R905
Resistor, 150
kn, 1/4 watt, 2%
R586
Resistor, 3.3 kn
R906
Resistor, 330 kn, 1/2 watt, 5%
R587 Resistor, 820 n
R907
Control, 10 kn
R588 Resistor, 27 kn, 2 watts
R589
Resistor, 27 kn, 2 watts
R590 Resistor, 6.8 kn, 2 watts
Transformers
T402
Transformer, TLN-125A
R591
Resistor, 6.8 kn, 2 watts
T403
Transformer, TFB-176, flyback
R592 Resistor, 330 n, 1/4 watt, 5%
T408
Transformer, TLN-125A
R593 Control, 500 n, blue cutoff
R594
Resistor, 100 n, 1/4 watt, 5%
R595 Resistor, 68 n, 1/4 watt, 5%
Miscellaneous
CRT
Cathode-Ray Tube, 30 x 66, M34JDU
5201
SWitch, green-normal, amber selection
Parts Lists
Page 5-7
