Monsoon I Use, Care, and Installation Guide
MONSOON I
INSERT
CORE

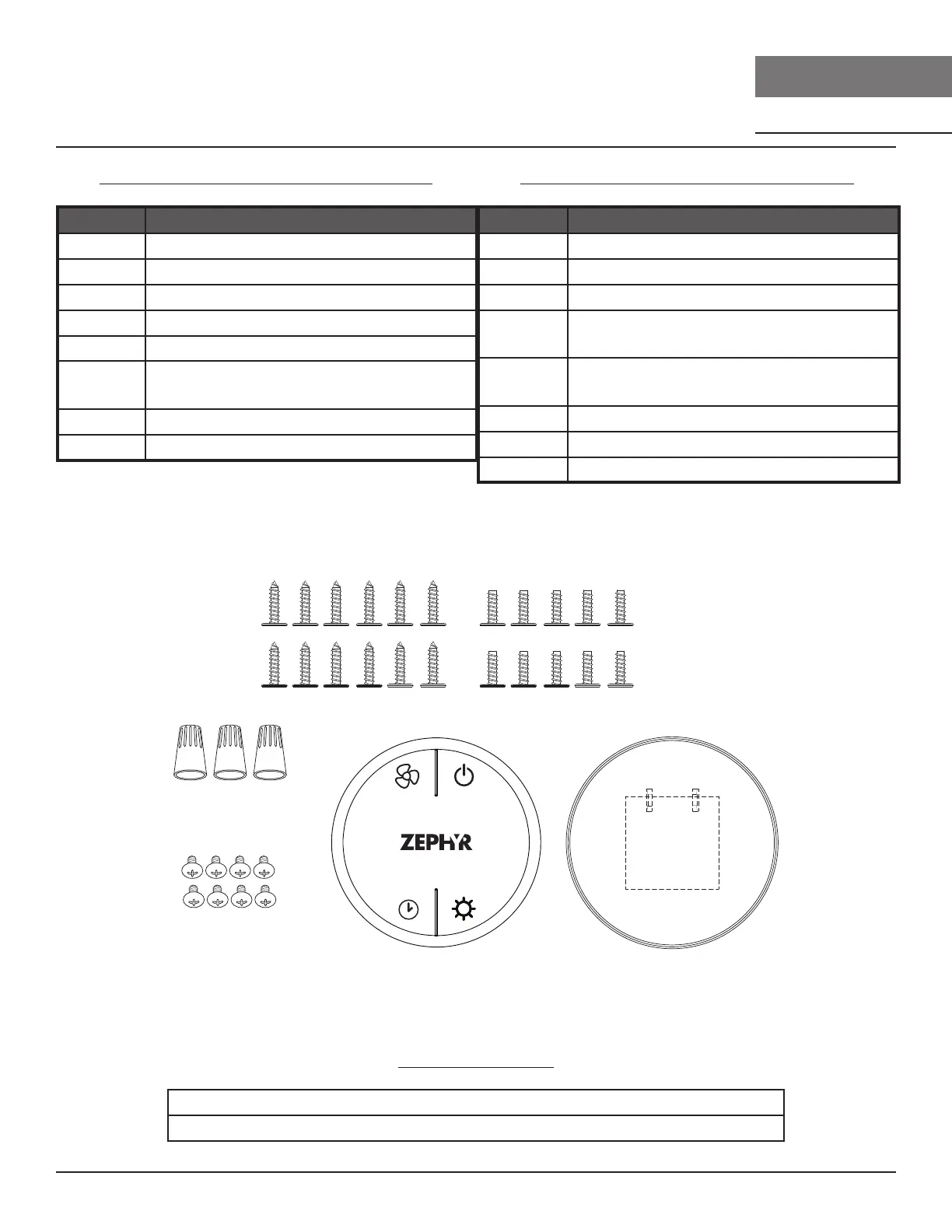

List of Materials
Parts Supplied (AK9228BS & AK9234BS)
Quantity Part
1 Liner hood body
2 Bae filters
2 LumiLight LED, 6W (pre-installed)
1 Internal blower (pre-installed)
1 8” round adapter w/ damper
2 Horizontal ducting blower mount
brackets
1 Top rectangular cover plate
1 Hardware package
M4 x 6mm (8)
AK9240BS & AK9246BS (4)
Wire Caps (3)
#8 x 1/2” (12)
3/16” x 3/8” (10)
AK9228BS & AK9234BS ONLY
Remote Holder (1)RF Remote Control (1)
Parts Not Supplied
Ducting, conduit and all installation tools
Cable locking connector (if required by local codes)
Parts Supplied (AK9240BS & AK9246BS)
Quantity Part
1 Liner hood body
2 Bae filters (AK9240BS)
3 Bae filters (AK9246BS)
2 LumiLight LED, 6W (pre-installed)
(AK9240BS)
4 LumiLight LED, 6W (pre-installed)
(AK9246BS)
1 Dual internal blower
1 10” round adapter w/ damper
1 Hardware package

Zephyr AK9246BS Specifications

General

Color	stainless steel
Hood Type	insert
Venting Type	ducted, external
Temperature Sensor	no
Control Type	button
Delay Start	yes
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	19 1/4 inches
Height	12 inches
Width	46 3/8 inches
Net Weight	64.5 pounds
