Zephyr AK9246BS User Manual

14
Monsoon I Use, Care, and Installation Guide
MONSOON I
INSERT
CORE

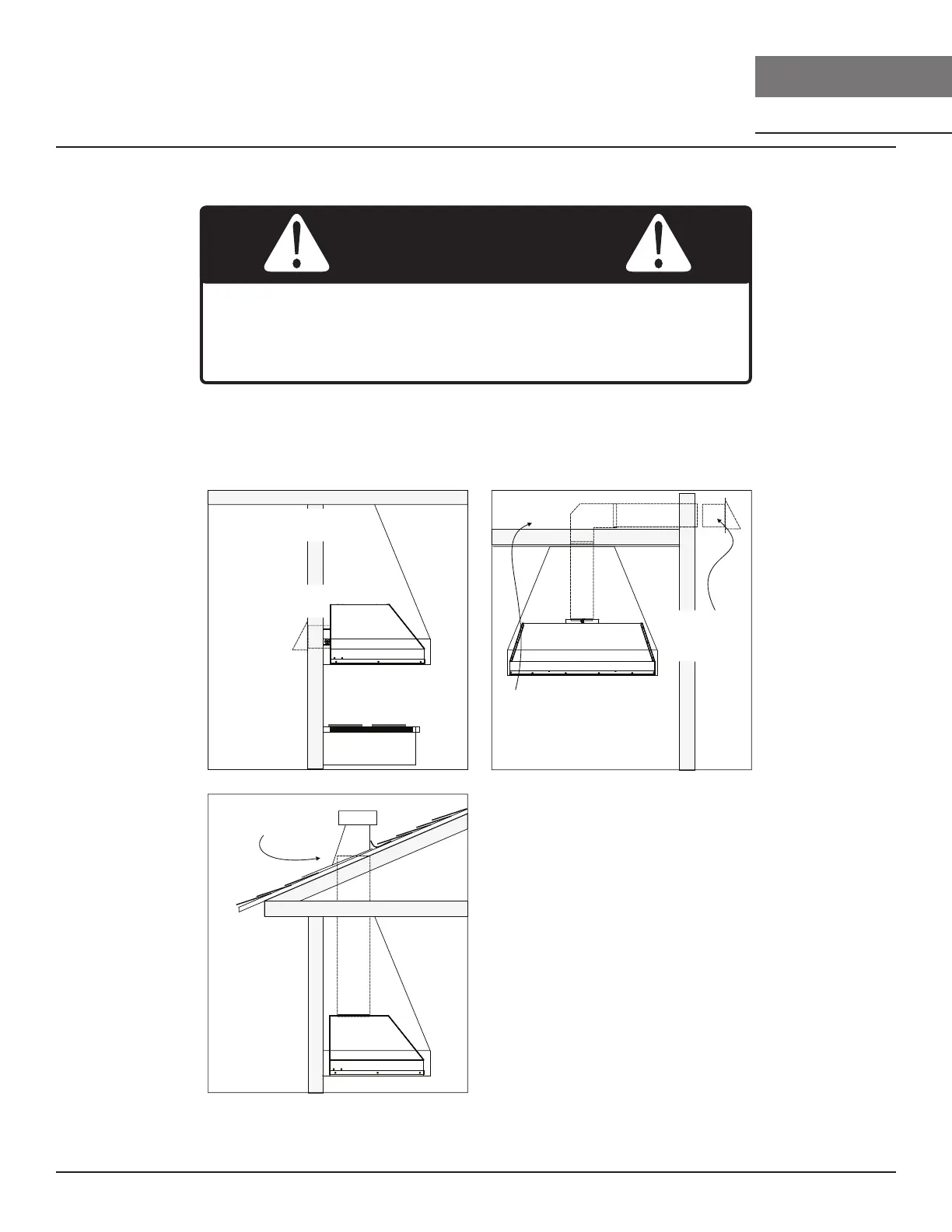

Installation Instructions
Ducting Options
Ź Use single wall rigid metal ductwork only.
Ź Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct
Tape.
Fire Hazard: NEVER exhaust air or terminate ductwork into
spaces between walls, crawl spaces, ceilings, attics, or garages.
All exhaust must be ducted to the outside, unless using the
recirculating option.
WARNING
Sot or crawl space
Roof Pitch w/
Flashing & Cap
AK9228AS & AK9234AS
Models Only
side wall cap
w/ gravity damper
side wall cap
w/ gravity
damper

Zephyr AK9246BS Specifications

General

Color	stainless steel
Hood Type	insert
Venting Type	ducted, external
Temperature Sensor	no
Control Type	button
Delay Start	yes
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	19 1/4 inches
Height	12 inches
Width	46 3/8 inches
Net Weight	64.5 pounds
