Zephyr AK9246BS User Manual

17
Monsoon I Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Preparation & Installation
At least two installers are required due to the
weight and size of the liner.
CAUTION
1. Remove all packing materials and protective
film prior to installation. Use caution during
installation to prevent scratches or damage to
the stainless steel.

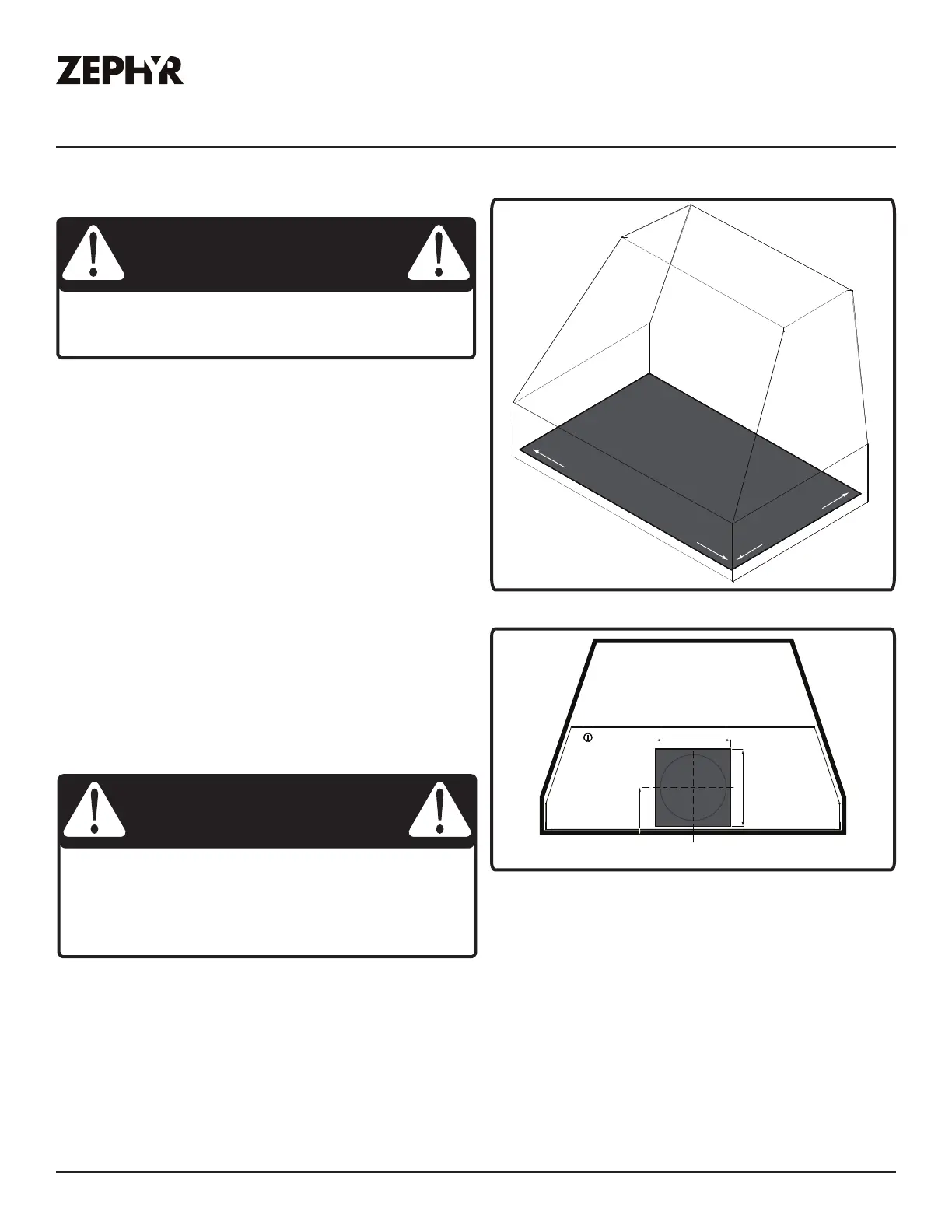

2. Cut out an opening in the bottom of the
cabinet by following the dimensions in FIG. B.
If ducting the one piece liner horizontally, also
cut out an opening in the back of the cabinet
(if applicable). FIG. C.
3. Prepare liner for installation into cabinet by
following the steps on page 19-20 for vertical
ducting or pages 21-22 for horizontal ducting.
Continue to Step 4 after preparation is
completed.
2
8-
1/2
”
19
-
3
/
8
”
cu
t
out
(AK9228)
4
6-
1/2
”
(AK9246)
40-
1/2
”
(AK9234)
34
-
1/2
”
(AK9240)
9”
9”
C/L
CABINET BACK
8” Round
5-1/2”
Make sure the surface you are securing the liner
to is capable of holding the weight of AK92.
Failure to do so may cause personal injury or
damage to cooking surface or counter.
WARNING
FIG. B
FIG. C

Zephyr AK9246BS Specifications

General

Color	stainless steel
Hood Type	insert
Venting Type	ducted, external
Temperature Sensor	no
Control Type	button
Delay Start	yes
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	19 1/4 inches
Height	12 inches
Width	46 3/8 inches
Net Weight	64.5 pounds
