Monsoon I Use, Care, and Installation Guide
MONSOON I
INSERT
CORE
Installation Instructions

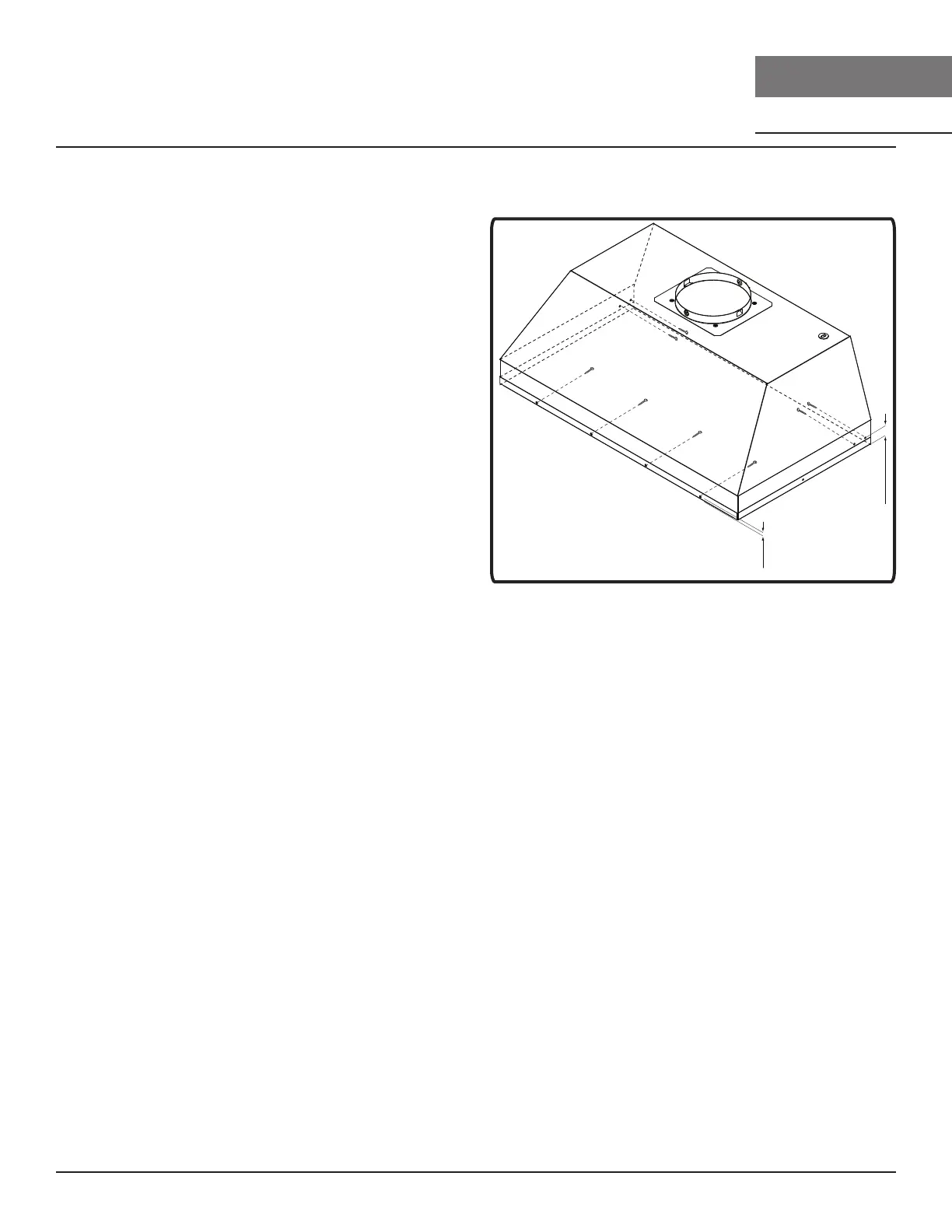

4. Lift liner into bottom opening of cabinet and
secure to interior of cabinet using (8) #8 x 1/2”
stainless steel screws; (4) screws in the front
and (4) screws in the sides. FIG. D.
5. Finalize installation of electrical and duct work.
Seal duct work with certified aluminum duct
tape. Power on liner, check for leaks around
duct tape and verify proper operation.
NOTE: If access to top of liner is not available
after installation, electrical and duct work
connection may need to be made prior to
installing the liner.
6. Re-install the previously removed bottom panel,
side spacer panels (if applicable), grease tray,
and bae filters.
1/4”
1-
1/8
”
FIG. D
Preparation & Installation

Zephyr AK9246BS Specifications

General

Color	stainless steel
Hood Type	insert
Venting Type	ducted, external
Temperature Sensor	no
Control Type	button
Delay Start	yes
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	19 1/4 inches
Height	12 inches
Width	46 3/8 inches
Net Weight	64.5 pounds
