Zephyr AK9246BS User Manual

35
Monsoon I Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Enabling ACT™

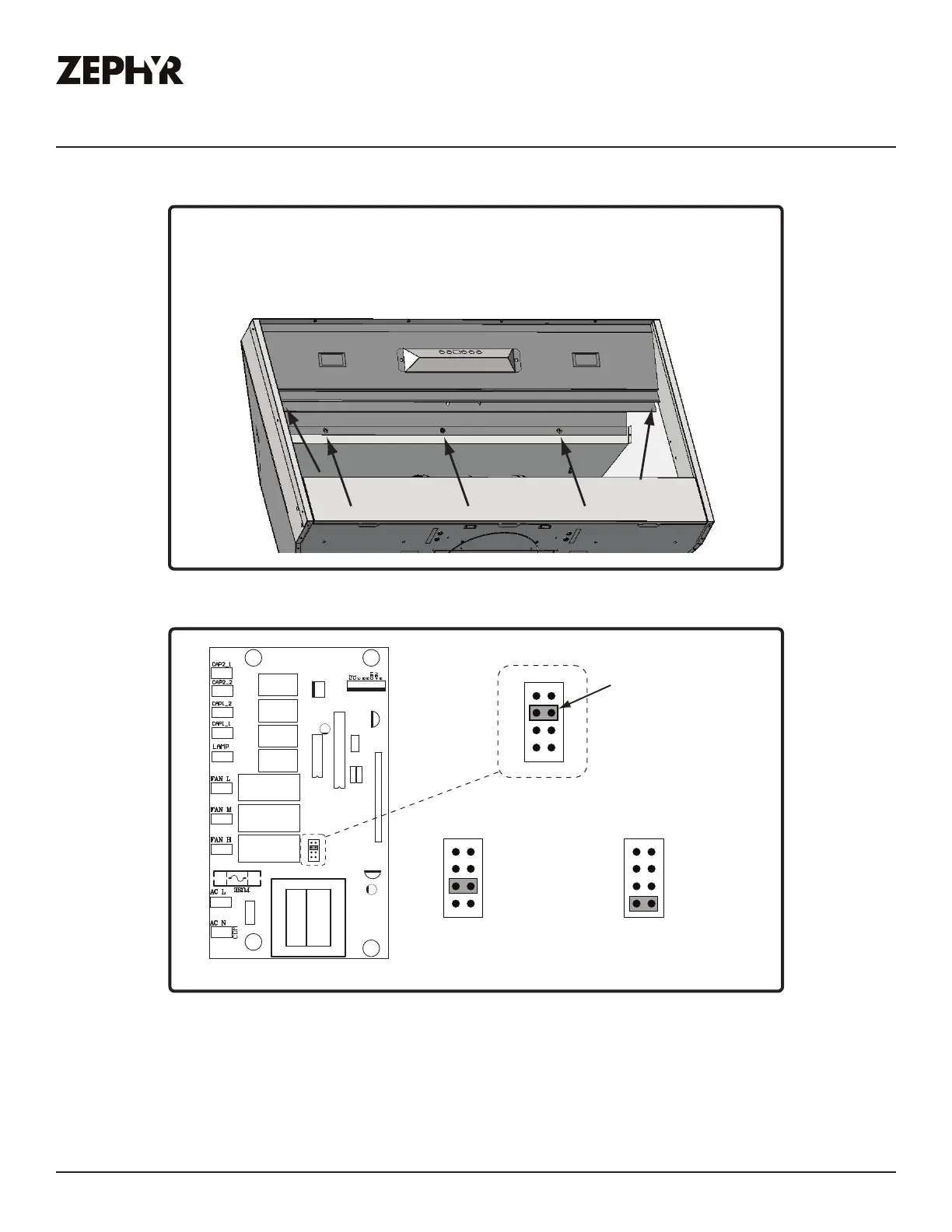

ACT™ Conversion
1. PC board located behind the light panel.
2. (If applicable) Remove both spacer panels by
2 screws for each spacer panel.
3. Remove 5 screws attaching light panel.
FIG. J
PC Board
1
3
5
7
2
4
6
8
Jump e r 5-6 or 7-8
DEFAULT POSITION
Default Max. Blower CFM
Jumper 3-4
Max. Blower CFM
AK9228BS & AK9234BS - 390
Jumper 1-2
Jumper Pins
Plastic
Jumper
1
3
5
7
2
4
6
8
1
3
5
7
2
4
6
8
1
3
5
7
2
4
6
8
Max. Blower CFM
AK9228AS & AK9234BS - 290
AK9240BS & AK9246BS - 590 AK9240AS & AK9246BS - 390
FIG. K

Zephyr AK9246BS Specifications

General

Color	stainless steel
Hood Type	insert
Venting Type	ducted, external
Temperature Sensor	no
Control Type	button
Delay Start	yes
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	19 1/4 inches
Height	12 inches
Width	46 3/8 inches
Net Weight	64.5 pounds
