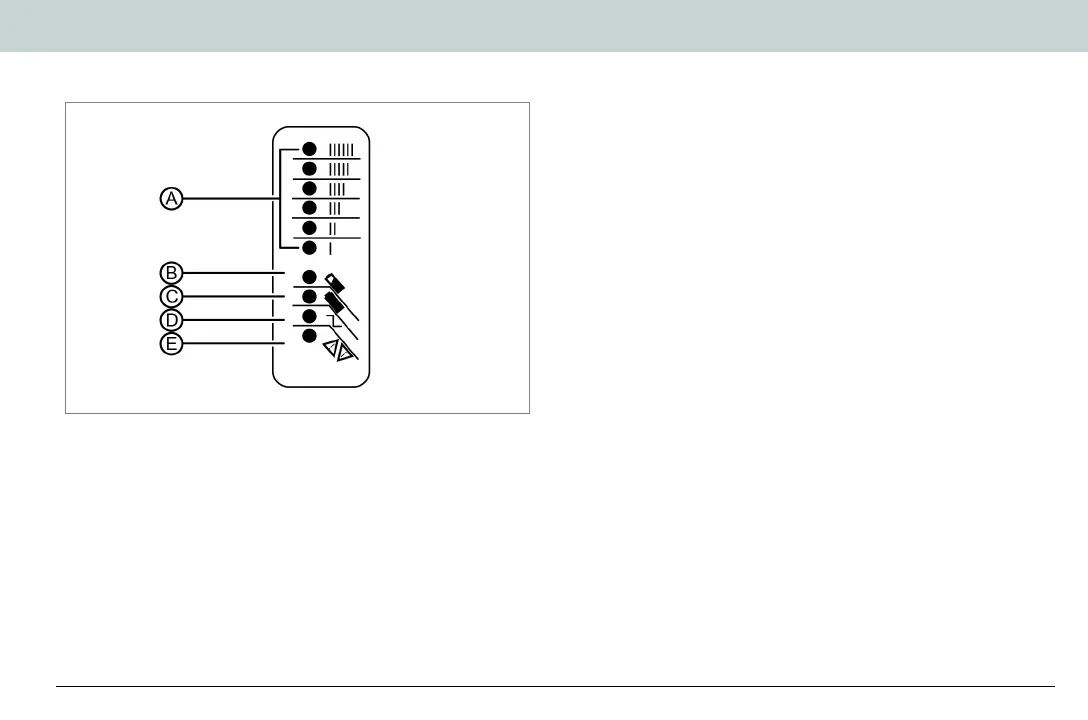

Quick Charger LED Indicators
A. Ammeter
The Ammeter LED is an amber indicator that indicates the
amount of current output and should gradually ramp down
from “IIIIII” to “I”.
B. 80% Charge
The 80% Charge LED is an amber indicator. If it is on solid,
the bulk charge phase is complete, 80% charged. Charger
is now in absorption phase. If the indicator is flashing,
there are two issues that can cause this to occur:
• The charger and BMS are balancing.
• The BMS is cutting off the charge because one or more
cells have reached maximum voltage.
C. 100% Charge
The 100% Charge LED is a green indicator. If it is on solid,
the charging is complete and the charger will enter
maintenance mode. If it is flashing, the absorption phase is
complete and the charger is in finish phase.
D. AC ON
The AC ON LED is an amber indicator. If it is on solid, the
AC power is good. If it is flashing, the AC voltage is low.
Check for proper voltage, and if an extension cord is being
used, verify that it is the correct length. Maximum length is
25 ft. (7.6 m) 12 AWG.
E. Fault
The Fault LED is a red indicator which indicates there is a
charger error. If it is flashing, reset the charger and see
“Troubleshooting”, on page 7.1.
