General Maintenance
6.26
Brake/Tail Light Bulb Replacement
To replace the brake/trail light bulb:

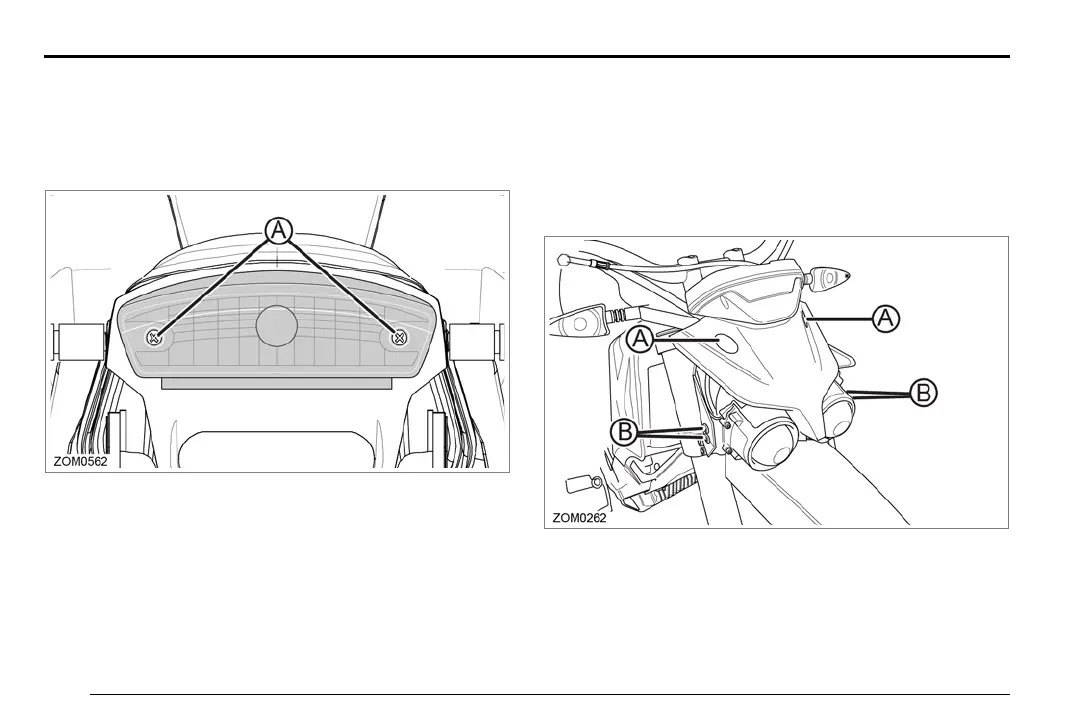

1. Remove the brake/tail light lens screws (A) and remove
the lens.
2. Push in on the bulb and turn the bulb counter-clockwise
then pull the bulb out.
3. Insert the new bulb into the socket, push in and turn
clockwise until it stops.
4. Install the brake/tail light lens and screws; tighten the
screws. Do not over-tighten the screws.
Running Light Bulb Replacement
1. Remove the two bolts (A) securing the trim cover above
headlight assembly to the motorcycle.
2. Release and remove the trim cover.
3. Remove the four bolts (B) securing the headlight
assembly to the headlight assembly retaining brackets.
4. Release the headlight assembly.
Zero Owner's Manual (FX and FXS).book Page 26 Tuesday, October 23, 2018 1:54 PM
