Zero FXS 2019 User Manual

General Maintenance
6.30
Fuses
Whenever there is an excessive amount of current flowing
through a circuit the fusible element will melt and create an
open or incomplete circuit. Fuses are a one-time protection
device and must be replaced each time the circuit is
overloaded. Replace the fuse with one of equal current
and voltage rating. If the fuse melts repeatedly, have the
electrical system inspected by your dealer.
To access the 12 volt fuse center and the ABS fuse, the
RH front body panel has to be removed.

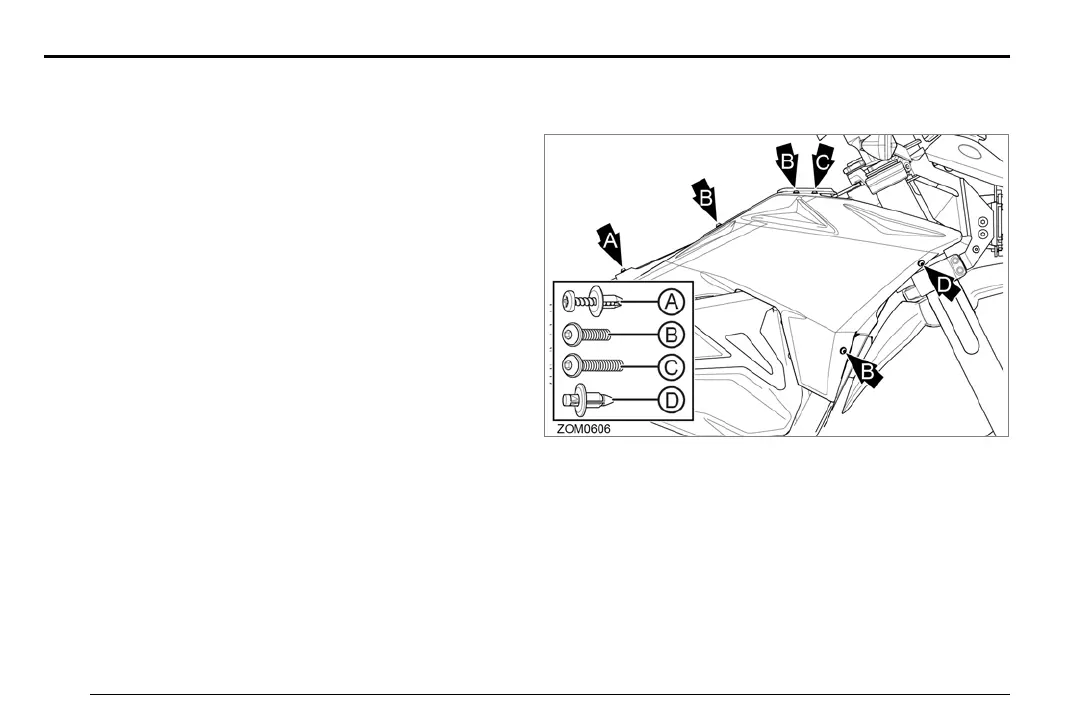

Removing the RH front body panel
1. Remove seat.
2. Remove 6 fasteners securing the body panel to the
frame.
3. Remove body panel.
Note: When installing the body panel, make sure that
no cables/wires are trapped between the frame and
panel before tightening the fasteners.
Zero Owner's Manual (FX and FXS).book Page 30 Tuesday, October 23, 2018 1:54 PM

Zero FXS 2019 Specifications

General

Category	Motorcycle
Battery Capacity	7.2 kWh
Range (City)	161 km (100 miles)
Top Speed	137 km/h (85 mph)
Rear Tire	140/70-17
Max Power	46 hp (34 kW)
Peak Torque	78 lb-ft (106 Nm)
Battery	Lithium-ion
Transmission	Single-speed
Front Suspension	41 mm inverted fork
Rear Suspension	Shock with adjustable spring preload
Front Brake	Single 320 mm disc with 2-piston caliper
Rear Brake	Single 240 mm disc with 1-piston caliper
Charging Time (With Max Chargers)	1.8 hours
