General Maintenance
6.31
12 Volt Fuse Center

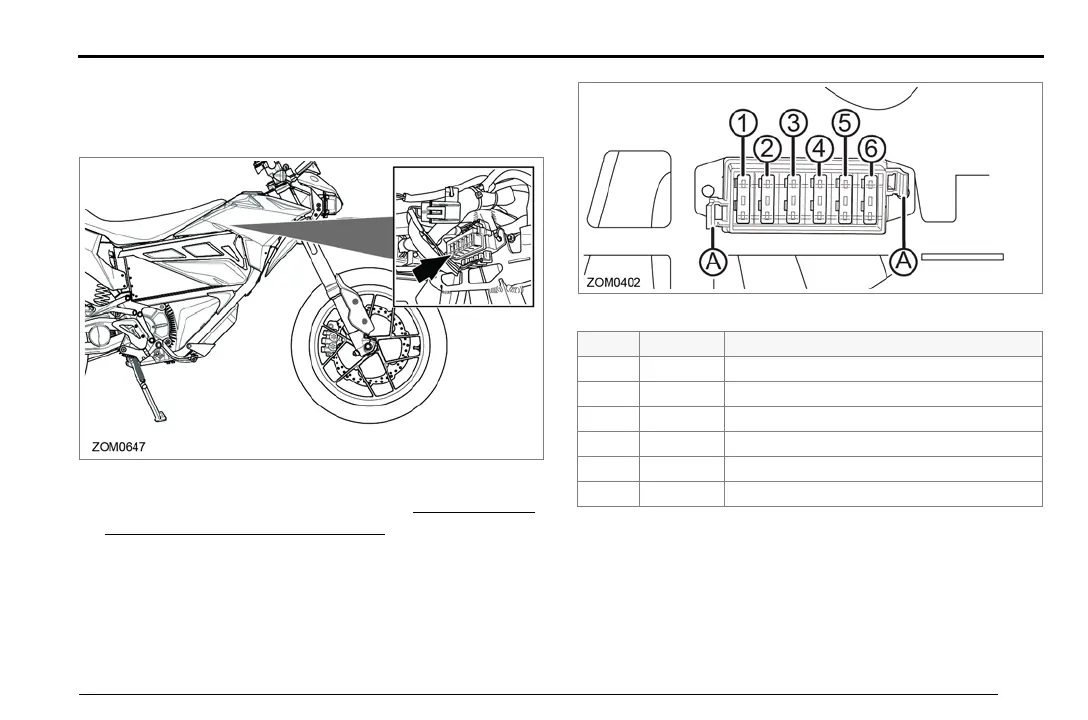

The 12 volt fuse center is located on the frame under the
RH front body panel.
To replace a 12V fuse:
1. Remove the RH front body panel. See “
Removing the
RH front body panel”, on page 6.30.
2. Squeeze the tabs (A) together and remove the
protective cover.
3. Replace the required fuse.
Note: After replacing the defective fuse(s), remember to
reinstall the fuse center cover.
The 12 volt fuse values are listed below:
FUSE RATING CIRCUITS CONTROLLED
1 5A ABS 4, Key
2 10A ABS 9, Valve
3 10A Headlight
4 10A Accessory Port
5 10A Flash Lights, Turn Signals, Horn, Brake/Tail Light
6 5A Dash, Running Lights
