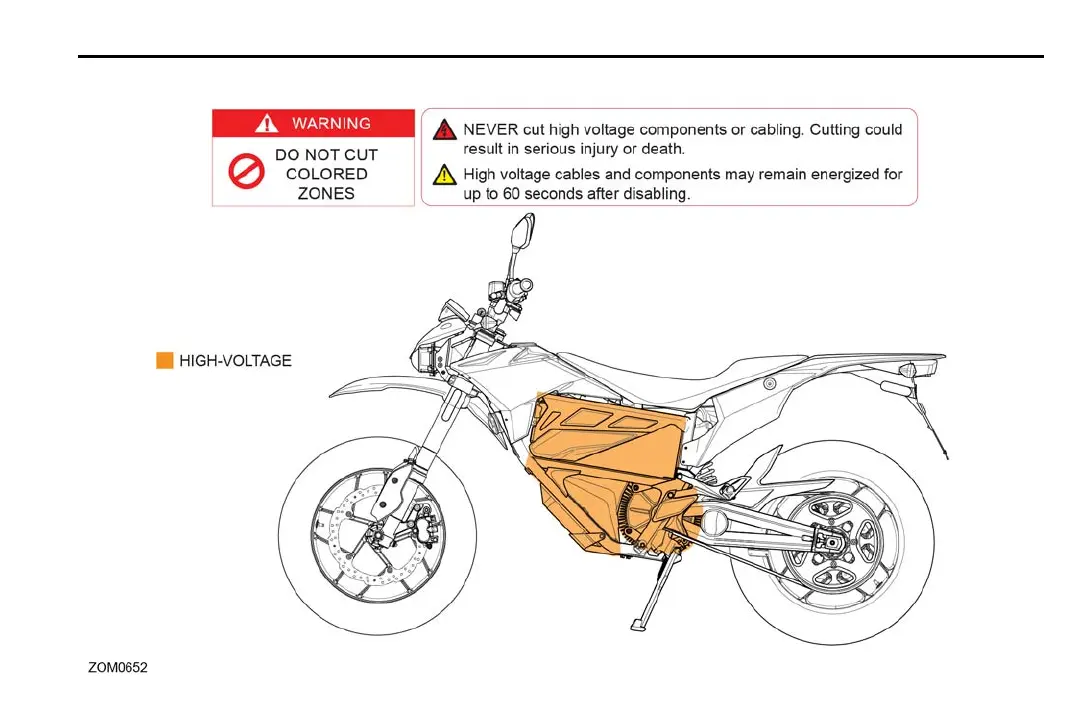

First Responder Information – High Voltage Component Locations

Zero Owner's Manual (FX and FXS).book Page 1 Tuesday, October 23, 2018 1:54 PM

Main Page

Table of Contents3
Introduction7
An Important Message from Zero7
California Proposition 657
California Perchlorate Advisory7
About this Manual8
Useful Information for Safe Riding8
When to Charge Your Z-Force® Power Pack9
Identification Numbers10
Owner Information10
Power Pack Serial Number11
Motor Serial Number11
Key Code Number11
Vehicle Identification Number (VIN)11
General Information13
Emissions Information13
Vehicle Range13
Maximizing Your Range14
Transporting17
General Safety Precautions19
Important Operating Information20
Location of Important Labels21
Controls and Components23
Motorcycle Controls24
Left Side View26
Right Side View28
Dash Overview30
Warning Indicator Lights32
Dash Settings35
Smartphone Application38
Bluetooth® Pairing38
Handlebar Controls39
Performance Level Mode Button41
Front Brake Lever Adjuster (FXS Only)43
Parking Brake Operation (if Equipped)43
General Operation45
Key Switch/Steering Lock Positions46
Motorcycle Tip-Over Sensor47
Operating Your Motorcycle48
ABS (Anti-Lock Braking System)50
Front Suspension Adjustment53
Rear Shock Adjustment58
Power Pack and Charging63
Power Pack63
Modular Power Pack System - Removal and Installation (if Equipped)65
On-Board Power Pack Charger67
Charging the Power Pack68
Quick Charging (Off-Board Accessory Charger)70
Public Charging Stations74
Add on Electrical Equipment74
Maintaining Your Motorcycle75
Owner's Responsibilities75
Parts/Maintenance Items76
Service History76
Scheduled Maintenance76
Component Fasteners80
Power Pack83
General Maintenance84
Brakes84
Parking Brake87
Suspension88
Wheels and Tires88
Tire Inflation89
Drive Belt90
Drive Chain (Optional)94
Headlight Alignment97
Turn Signal Light Bulb Replacement99
Brake/Tail Light Bulb Replacement100
Running Light Bulb Replacement100
Cleaning102
Parking and Long Term Storage103
Zero Motorcycles Accessories103
Fuses104
Troubleshooting111
Electric Motorcycle Precautions111
Troubleshooting Your Motorcycle111
System Warning Indicator112
Dash Error Codes115
General Troubleshooting118
Battery Management System119
Cold and Hot Weather Considerations125
Safety Interlocks126
Specifications (Europe)129
Zero FX129
Zero FXS131
Specifications (Rest of the World)133
Zero FX133
Zero FXS135
Limited Warranty Information137
Who Is the Warrantor137
Who Does this Limited Warranty Cover137
What Does this Limited Warranty Cover137
What Is the Coverage Period of this Limited Warranty138
What Is Not Covered by this Limited Warranty139
What Other Limitations or Disclaimers Apply to this Limited Warranty141
What Are Your Responsibilities as a Customer142
What will Zero Motorcycles Do under this Limited Warranty143
How Does this Limited Warranty Relate to State Law143
How Do You Obtain Service under this Limited Warranty144
How Do I Transfer Ownership and the Limited Warranty145
Customer Information146
Customer Assistance146
Reporting Safety Defects147
Maintenance Record149
Service History149
First Responder Information - High Voltage Component Locations157
