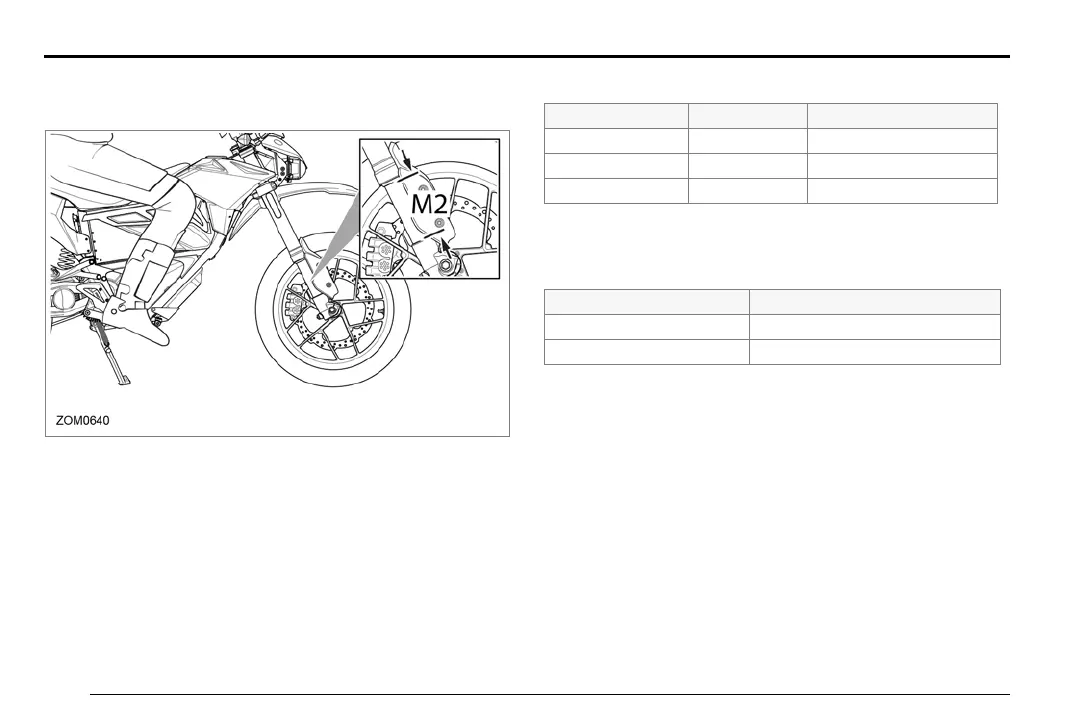

9. Record this measurement (this is the measurement
referred to as M2).
10.Subtract the second measurement (M2) from the first
measurement (M1).
Example:
The total sag is 2.87 in (73 mm). Refer to the chart below
for the correct sag. If the sag is not correct, the spring
preload should be adjusted.
MEASUREMENT OPERATOR VALUE
M1 6.49 in (165 mm)
M2 - 3.62 in (92 mm)
Sag = 2.87 in (73 mm)
MODEL SAG
FX 2.87 in (73 mm)
FXS 2.36 in (60 mm)
