General Maintenance
6.24

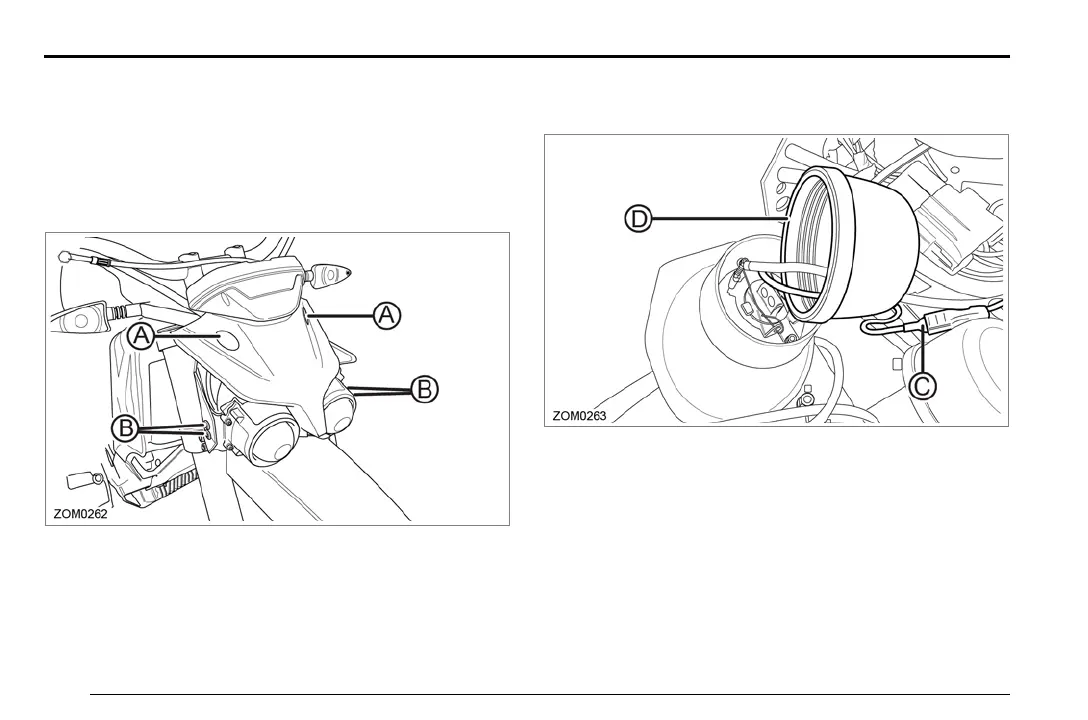

To replace the bulb:
1. Remove the two bolts (A) securing the trim cover above
headlight assembly to the motorcycle.
2. Release and remove the trim cover.
3. Remove the four bolts (B) securing the headlight
assembly to the headlight assembly retaining brackets.
4. Release the headlight assembly.
5. Disconnect the headlight bulb connector (C).
6. Release the headlight bulb sealing boot (D).
