13
TRANSPORT USE
D201 D202
MULTI-STOREY QUICK-ADJUSTABLE
HITCH CBM
It is used for hitching of two-axle of light
single-axle trailers. The guide mouth is
height-adjustable. When working with
various agriculture machines the height
of the hitch shall be adapted as neces-
sary or dismount at all.
HEIGHT ADJUSTMENT AND
DISMOUNTING OF THE MULTI-
STOREY HITCH CBM

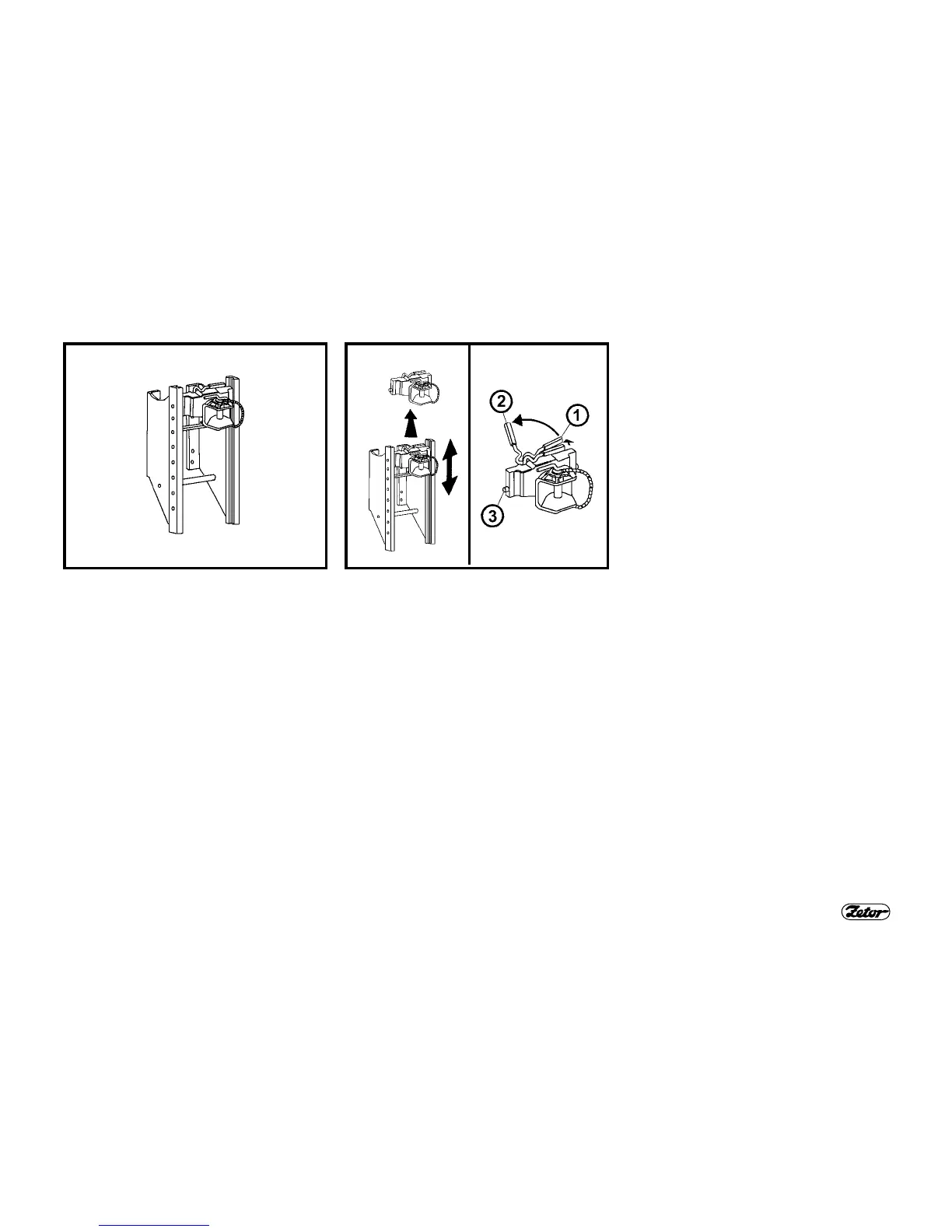

Turning of the lever in direction of the ar-
row to the position (1) unlocks the lever
and its subsequent turning to the position
(2) slides the arrestment pins (3) in; this
releases the multi-storey hitch and its
height can be adjusted or the hitch dis-
mounted.
Release of the lever from the position (2)
slides the arrestment pins (3) out and the
lever returns automatically to its initial
position.
