TRANSPORT USE
D207 D208
MODULE OF A BRACKET WITH BALL
Ø 80MM
The bracket with a ball ø 80mm is
used only for hitching of semi-
trailers with hitching devices de-
signed for balls ø 80mm.

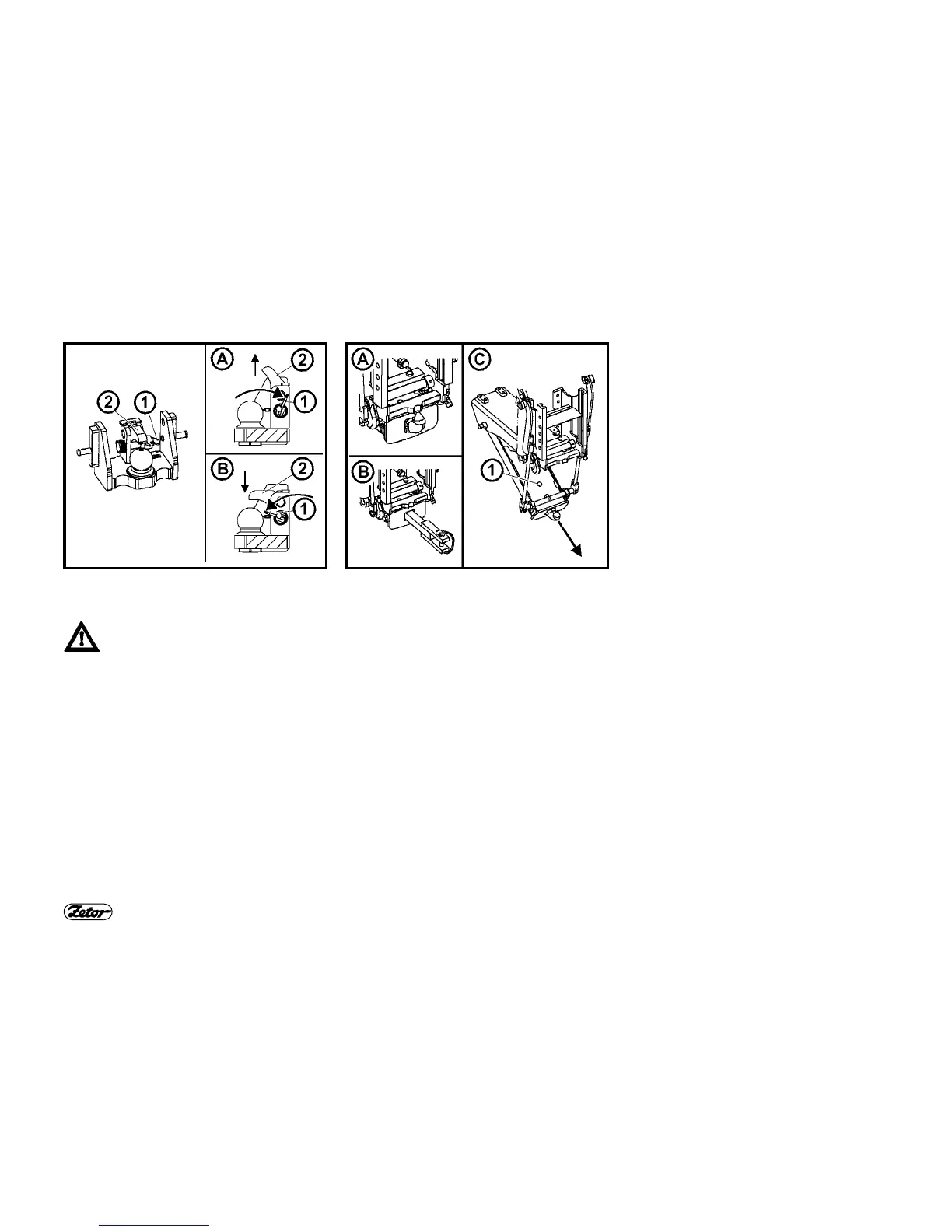

Fig. (A) – Unlocking of the hitch:
Move the lever (1) in direction of the ar-
row to push away the locking wedge (2).
Fig. (B) – Locking of the hitch:
Move the lever (1) in direction of the ar-
row to pull up the locking wedge (2).
HITCH CBM FOR SINGLE-AXLE
TRAILERS
The hitch for single-axle trailers can be
fitted with a hook (A) or swing link (B).
Replacement of the hook for the swing
link (C):
1- Lower the hitch.
2- Unlock and remove the pin (1).
3- Remove the hook in direction of the
arrow.
Mounting of the swing link is carried out
in reverse order.
