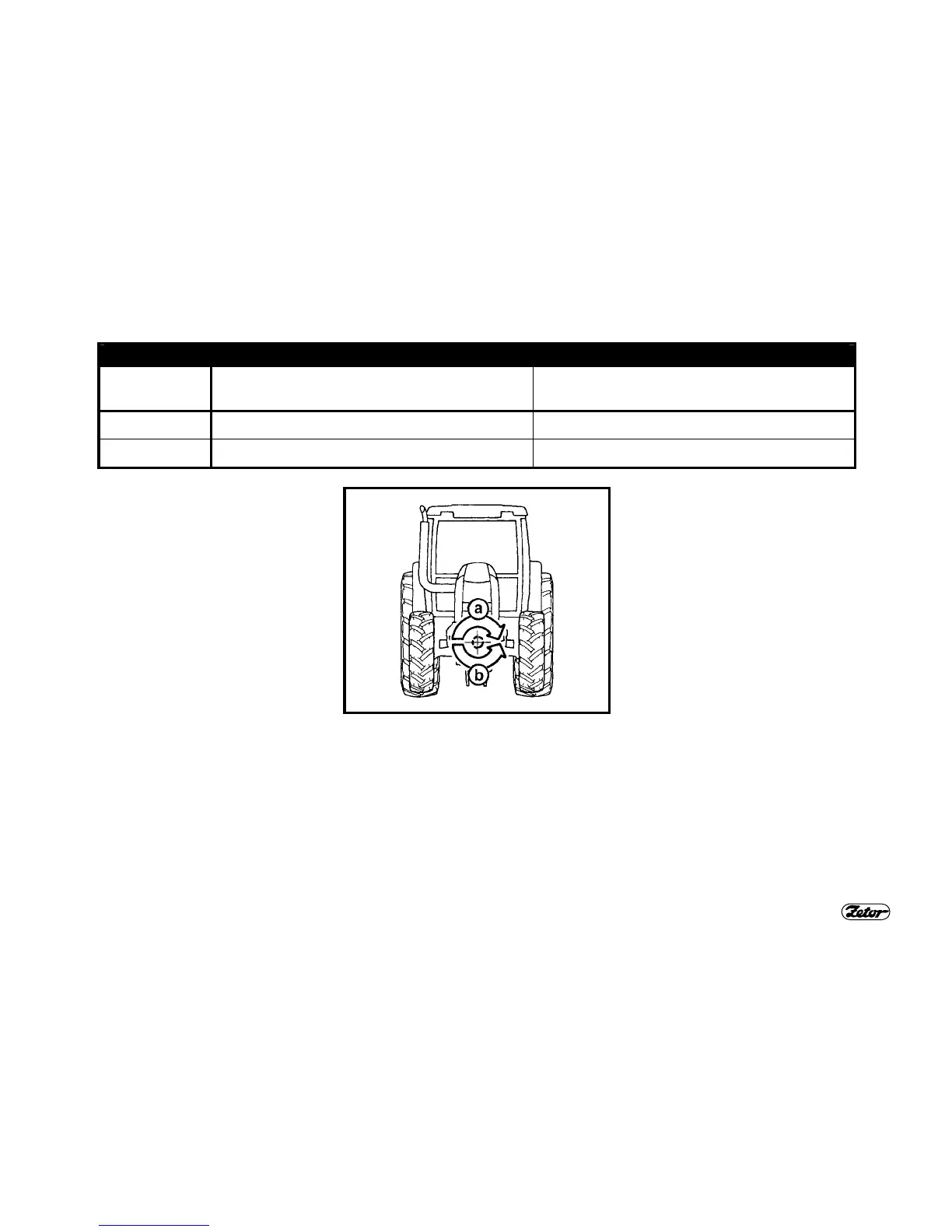

ESSENTIAL TECHNICAL PARAMETERS
SPEED OF THE FRONT OUTP
UT SHA
FT ZUIDBERG
Direction of
rotation
Speed of the output shaft / s
peed of engine
Spe
ed of the output shaft / speed of e
ngine
right (a)
1,000 / 1,920
1,146 / 2,200
∗
left (b)
1,000 / 2,000
1,100 / 2,200
∗
– optional
E801
36
38
Table of Contents
Default Chapter
5
Table of Contents
5
Preventive Daily Maintenance
7
Cooling System
7
Fluid Brakes
7
Air Cleaner
7
Oil Tank of Hydrostatic Steering
8
Acquaintance with the Tractor
9
Reversible Switches, Switches and Levers
9
Control Panel on the Right Cab Column
10
Tilting Steering Wheel
10
Aggregation Hole, Rear Right Panel
10
Lever of Shifting of Reverse
11
Lever of Shifting of Road and Reduced Speeds
11
Lever of Engagement of the Output Shaft Drive
11
Lever of Shifting of Speed of the Output Shaft 540 and 1,000 Rpm
12
Lever of Shifting of Speed of the Output Shaft 540 and 540E Rpm
12
Lever of Shifting of the Reducer of Creep Speeds
12
Transport Use
13
Multi-Storey Quick-Adjustable Hitch CBM
13
Height Adjustment and Dismounting of the Multi-Storey Hitch CBM
13
Automatic Guide Mouth of the Multi-Storey Hitch CBM >31/03/2007
14
Automatic Guide Mouth of the Multi-Storey Hitch CBM 01/04/2007
14
Modular System of Hitches for Trailers and Semi-Trailers
15
Module of a Swing Link Bracket
15
Swing Link
15
Module of a Swing Link Bracket with Fixed Pin
15
Module of a Bracket with Ballø 80Mm
16
Hitch CBM for Single-Axle Trailers
16
Maximum Permissible Vertical Static Loading of Hitches for Trailers and Semi-Trailers
17
Maximum Permissible Vertical Static Loading of Hitches for Trailers and Semi-Trailers
18
Drive of Agricultural Machines
19
Front Output Shaft Zuidberg
19
Engagement of the Front Output Shaft Zuidberg
19
Maximum Transferred Power
19
Hydraulic Equipment
20
External Control of Rear Arms of the Hydraulic Equipment
20
Hitches
21
Height Adjustment of the Lifting Links
21
Fixed and Free Positions of Lower Links of the Hydraulic Equipment
21
Limiting Links
21
Lower Links with Telescopic Terminals
22
Lower Links with Hooks CBM
22
Front 3-Point Hitch
23
Control of Front 3-Point Hitch
23
Adjustment of Lifting Speed of the Front 3-Point Hitch
23
Hydraulic Locking of the Front 3-Point Hitch
24
Working and Transport Positions of the Front 3-Point Hitch
24
Electric Installation
25
Electric Equipment
25
Lead Battery
25
Battery Disconnector
25
Fuse Dose (21 Fuses)
26
Planned Technical Maintenance
27
Oils for 4-Cylinder Turbo-Charged Engines Zetor
27
Recommended Oils for Turbo-Charged Engines According to Ambient Temperature
28
Oils to Geared Mechanisms of Tractors
29
Oils for Front Output Shafts Zuidberg
30
Maintenance Instructions
31
Opening of the Front Bonnet
31
Maintenance of the Dry Air Cleaner - Indicator of Clogging
31
Function of the Indicator of Clogging
31
Instructions to Maintenance of Dry Air Cleaner
32
Regeneration of Main Air Cleaner Cartridge
32
Replacement of Air Cleaner Safety Cartridge
32
Re-Installation of Cartridges of the Air Cleaner
33
Oil Tank of Hydrostatic Steering
33
Refilling of Brake Fluid
33
Essential Technical Parameters
34
Technical Specifications of Engines of Tractors Z 6421 - Z 8441
34
Max. Permitted Loading of the Front Axle Cararro 20.16 Z 6441, Z 7441, Z 8441 (Kg)
35
Forces
36
Power and Consumption
36
Speed of the Front Output Shaft Zuidberg
37
